Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > RY-001 2.4G Digital Wireless Video 4CH Camera USB Receiver DVR Home Security CCTV System

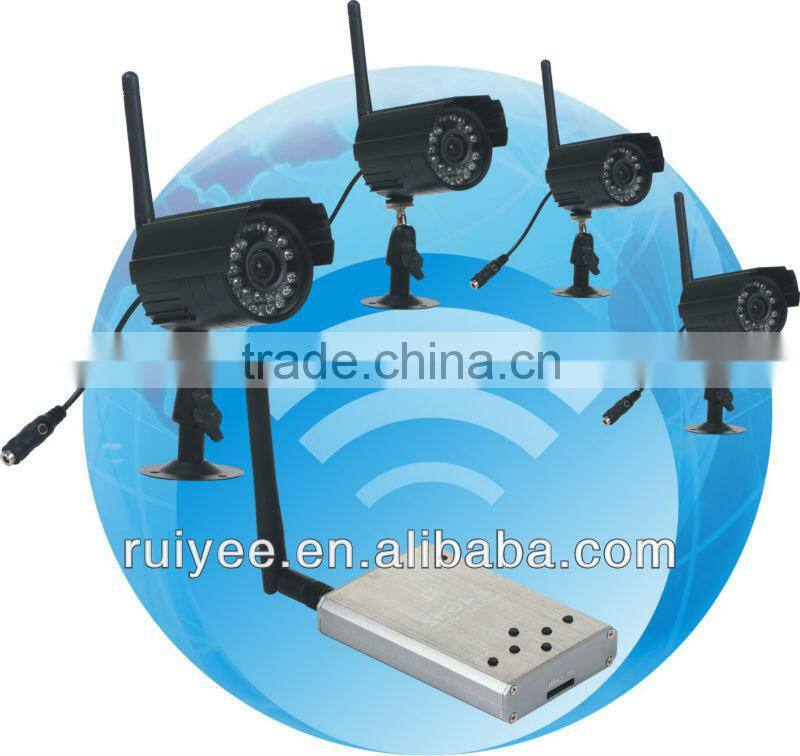

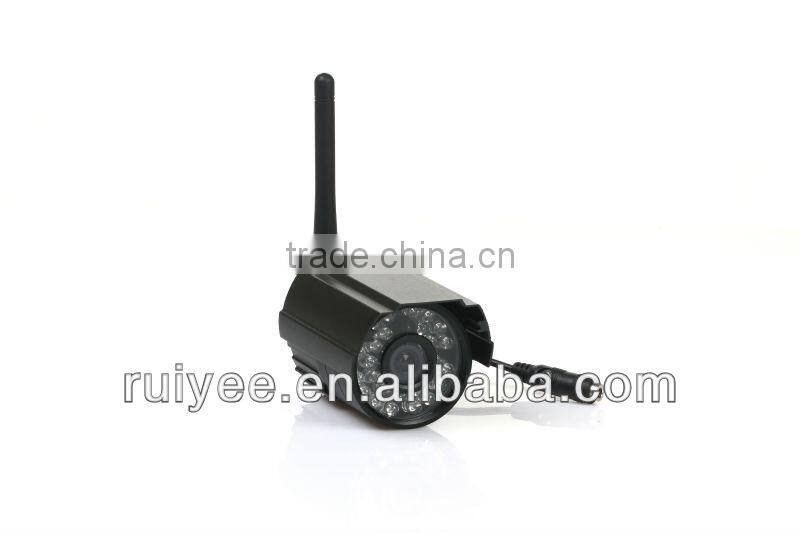

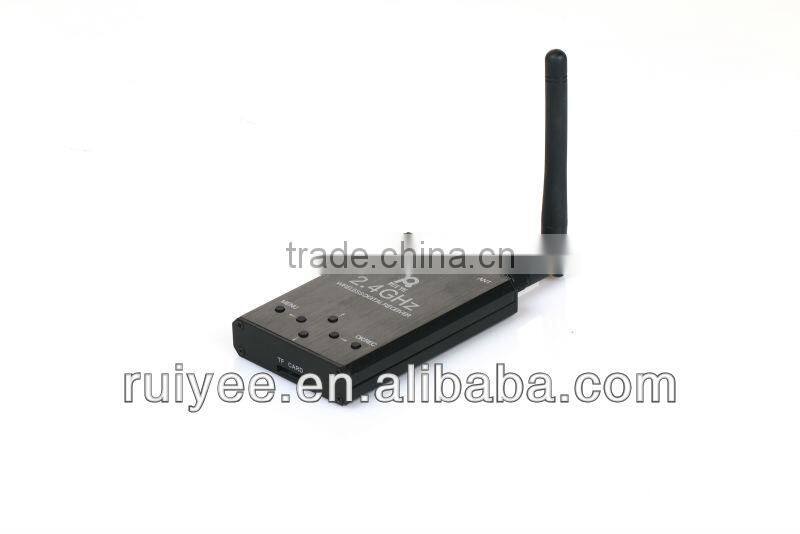

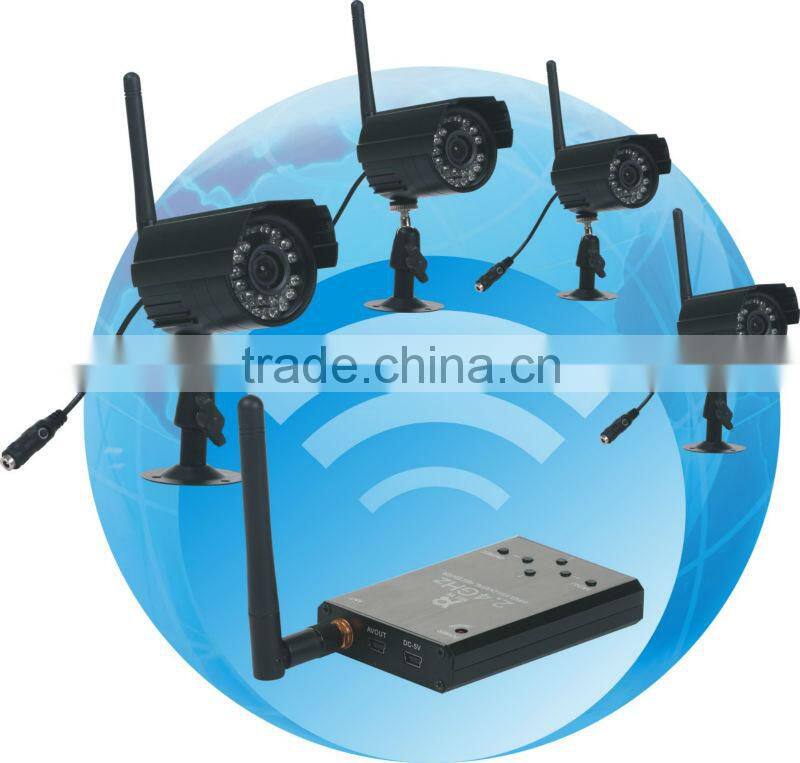

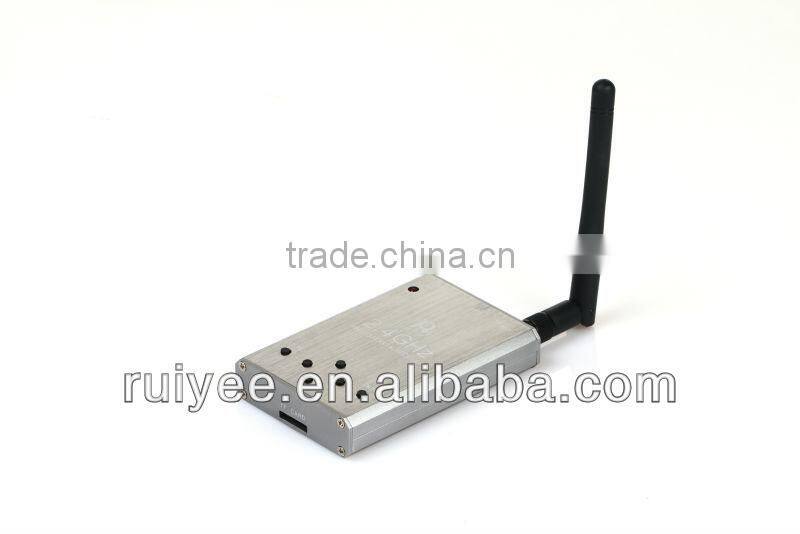

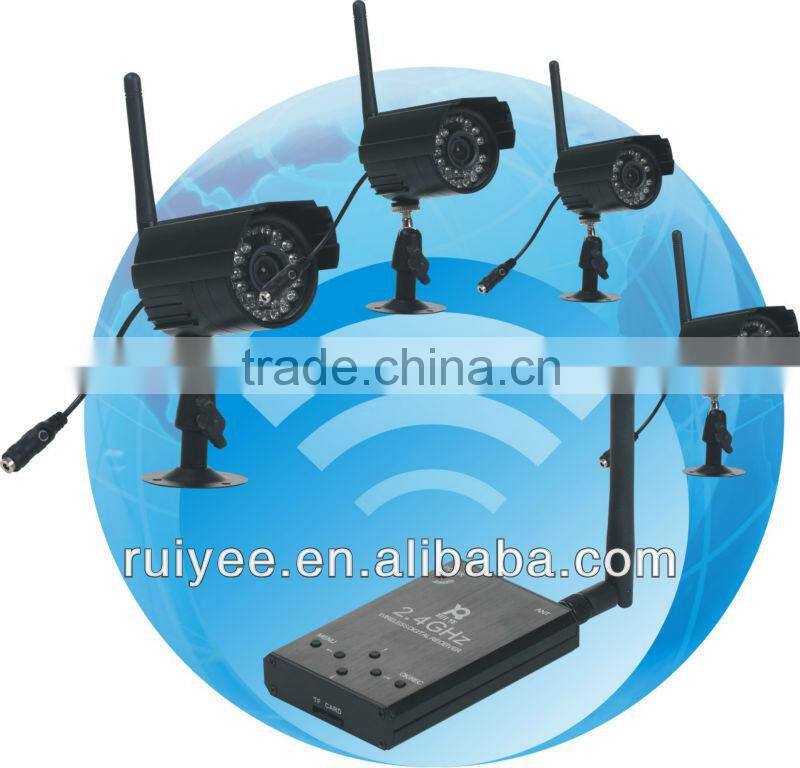

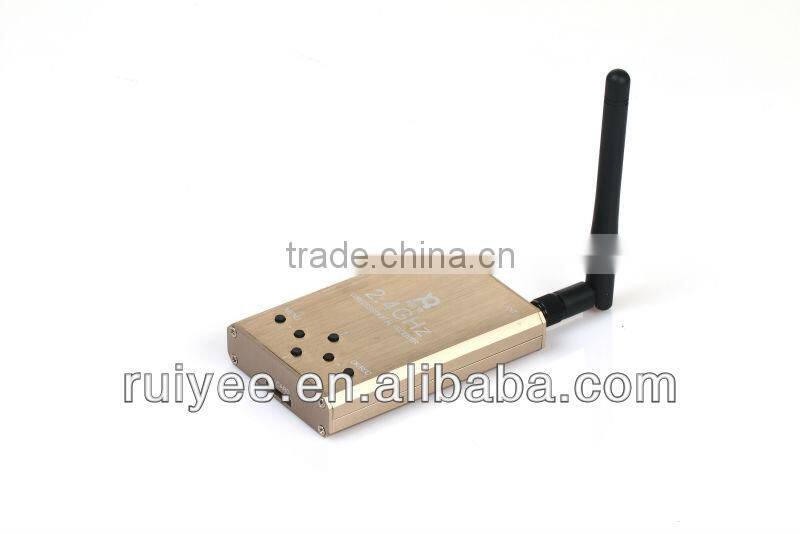

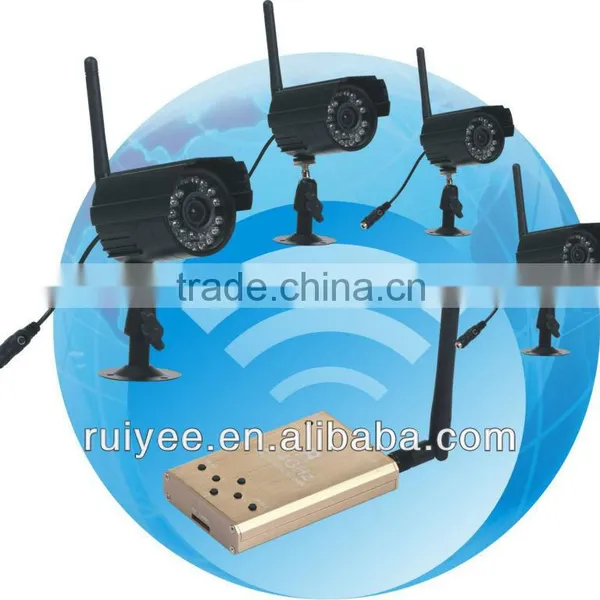

RY-001 2.4G Digital Wireless Video 4CH Camera USB Receiver DVR Home Security CCTV System

Name: RY-001 2.4G Digital Wireless Video 4CH Camera USB Receiver DVR Home Security CCTV System
Brand: Ruiye
SKU: 123407553
Availability: InStock

Shenzhen Rui Ye Electronic Co., Ltd.

RY-001 2.4G Digital Wireless Video 4CH Camera USB Receiver DVR Home Security CCTV System thumbnail-1

RY-001 2.4G Digital Wireless Video 4CH Camera USB Receiver DVR Home Security CCTV System photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Ruiye

Model Number:

RY-001

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Ruiye

Model Number RY-001

Type Digital Camera

Style Other, Wireless camera

Sensor CMOS

Technology NetWork

Special Features Waterproof / Weatherproof

Specifications

Barrier-free distance 800 meters!
Can be connect to both TV and computer directly
No need CD software
650TVlines

Product features:

2.4GHz wireless digital transmission

Comes with quad split screen, support four cameras to one screen, and contains four pictures

Support max 32GB TF card

Well sealed,strong anti-jamming capability

Easy installation, no wiring needed, low costs installation

Connect USB cable to the computer (power supply)

Compatible with mobile power bank

Product specifications:

General Parameters	Operation Frequency	2400---2483MHz
	Modulation Schemes	FSK
	Signal Reception Range	200M
	Operation Temperature	-30—60 degree
	Operation Humidity	20%--80%
Receiver Parameters	Pixels	VGA 640*480
	Format	NTSC/PAL
	Receive	1-4 way wireless signal input
	Frame Rate	25-30fps
	Memory Card	Support max 32GB TF card
	Operation Voltage	DC 5V
	Max Operation Current	300mA
Camera Parameters	Image Sensor	1/4” CMOS
	Effective Pixels	CCIR:640*480
	Lens	6mm
	Min Illumination	0.5Lux / F1.2
	Shutter Speed	1/50 (1/60)—1/100000 second
	SNR	More than 48db
	Signal System	CCIR
	Audio Output	AUDIO MAX 2VP-P50ohm
	Video Output	1.0VP-P75ohm
	Operation Voltage	DC 5V
	Max Operation Current	300mA
