Home > Products > Mini CMOS Camera > RY-3006 cctv cmos car camera

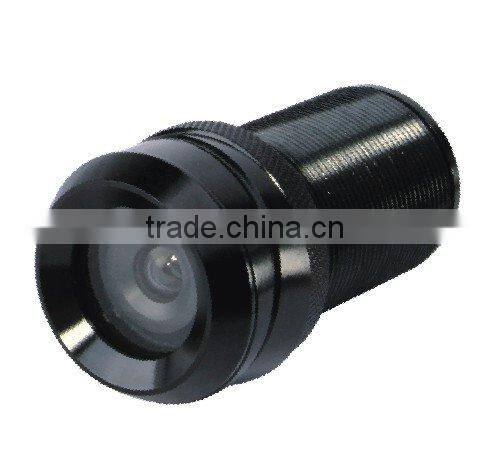

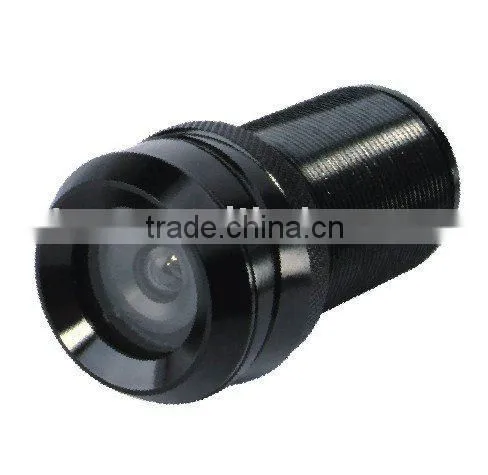

RY-3006 cctv cmos car camera
- 1000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
- 7 inch TFT Monitor DIGITAL Wireless Farm Cctv Systems
- 7 inch TFT Monitor DIGITAL Wireless New Backup Camera Kit with 2.4GHz digital signal
- 7 inch TFT Monitor Digital Reversing Camera System with 2.4GHz digital signal
- 7 inch TFT Monitor Wireless Back Up Systems with 2.4GHz digital signal
- Car Camera Wireless Transmitter System For Bus
- 7inch digital 2.4g wireless surveillance camera system For Bus
Product Details
Place of Origin: | Guangdong, China | Brand Name: | RuiYe | Model Number: | RY-3006 |
Type: | Other, Analog Camera, Video Camera | Style: | Mini Camera | Sensor: | CMOS |
Technology: | Infrared | Special Features: | Vandal-proof |
Product Description
Image sensor | CCD | |||
1/4 SHARP | 1/3SHARP | 1/4SONY | 1/3SONY | |
Signal System | PAL/NTSC | |||
Horizontal Resolution | 420TVL,480TVL,520TVL,540TVL | |||
Level Synchronous Frequency | P:15.625KHZ/N:15.734KHZ | |||
Clock Frequency MHZ | P:19.3125/N:19.0699 | |||
Scanning Systerm | 2:1 interlace | |||
Minimum Illumination | 0.8lux /F1.2 | |||
Synchronous System | Internal, Negative sync | |||
S/N Ratio | More than 48dB | |||
Auto Electronic Shutter | P:1/50~1/100,000sec;N:1/60~1/100,000 | |||
Gama Characteristic | 0.45 | |||
Video Output | 1Vpp 75Ohms | |||
Back light compensation | Auto | |||
Auto Gain Control | Auto | |||
Effective pixels | PAL:500(H)X582(V), NTSC:510(H)X492(V) | |||
lens | 3.6 mm lens | |||
Led lights | 12pCS | |||
IR distance | 15m | |||
Voltage | 12V±10%DC, | |||
Operation Temperature | -10~+45°C | |||
Technical characteristics | 1/3 SONY CCD 480TVL | |||
1/4 SHARP CCD 420TVL |
- 1/3 sony,1/4sony,1/3sharp,1/4sharp optional.
- we can print your beautiful logo on the case.
- we can design and print packing box according to your inquiry.
- stick your model No.&series No. on the cameras and packing box.
