RY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color Camera

RY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color Camera photo-1
RY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color Camera photo-2

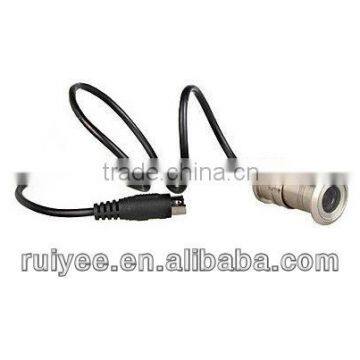

RY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color Camera photo-3

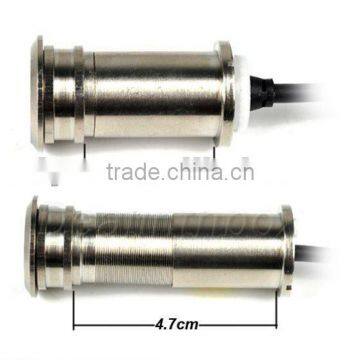

RY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color Camera photo-4

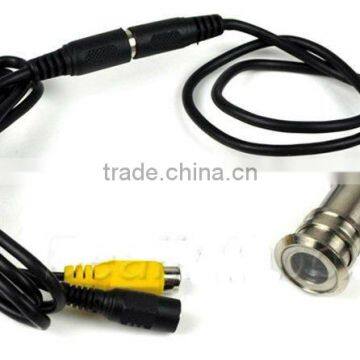

RY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color Camera photo-5
US$ 10.48 - 13.48 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Ruiye
Model Number:
RY-3002
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Ruiye
Model Number RY-3002
Type Analog Camera
Style Mini Camera
Sensor CMOS
Technology Pinhole
Special Features Vandal-proof

Highlights

  • 100% Brand New and high quality
  • Visitor Identifying
  • Home Security
  • Moving Detection
  • Entry Detection
  • Baby and Patient Tending
  • Small and Light Weight
  • Lower Power Consumption
  • High Sensitivity
  • Easy 1-Minute Installation
  • Easy to Operate
  • It can be fitted on the back of your cars to monitor what is going behind your cars

This product is a color camera it is available for any thickness door, it is easy to install:

  • 1.Fix the hole camera on the door hole directly
  • 2.Connect the camera AV cable (Yellow) with the monitor (TV, Video, PC)
  • 3.Connect the camera power Plug (Red) with the adapter (8V-12V/200mA)

Specification



Image Sensor

1/4" CMOS Video Sensor

TV System

580(H)*480(V)

Auto electronic exposure

1/50-1/6000 Sec

Definition

420 TV Lines

View Angel

92 Degree

B/W Illumination

0.5Lux

Color Illumination

2Lux

S/N Ratio

46dB

Operation Voltage

DC 8 - 12V

White Balance

Auto

LENS

3.6mm

Range:

25-47mm

Current consumption

<35mA

Power Supply

AC100~240V DC12V DC (Not Included)

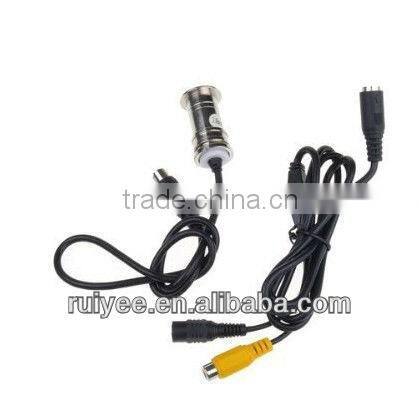

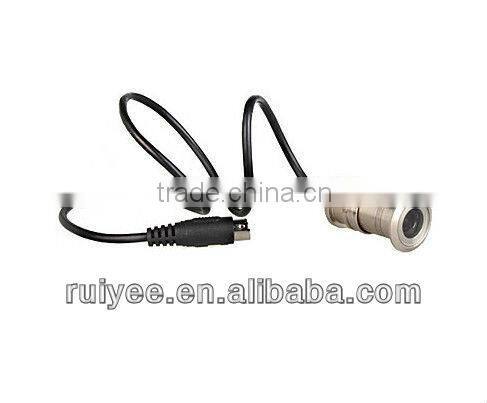

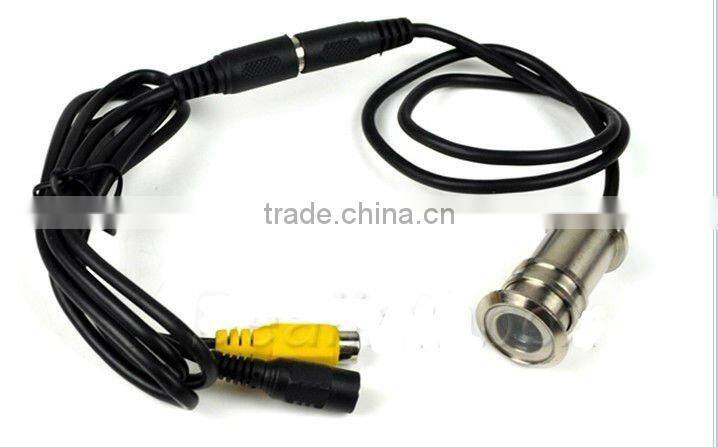

RY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color cameraRY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color camera

RY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color cameraRY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color cameraRY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color camera



Our Services



WHY CHOOSE US?!

1. Ruiye is professional CCTV manufacturer.

2.Warranty: TWO years free repair warranty if has malfunctional under normal usage

3. Your reliable business partner with low price and good quality

Our service:

1. Reply your inquiry within 24 working hours.

2. Customized design is available, OEM&ODM are welcomed.

3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

4. Special discount and protection of sales area provided to our distributor.







Company Information



RY-3002 Mini 1/4" CMOS 420tvl CCTV Door Eye Hole Security Color camera




FAQ



MOQ

1. For the first order, we have no limit for the quantity.

2. From the second order, the MOQ is 50pcs.

Payment Terms

T/T, Western Union, PayPal

1. Under T/T, there will be USD35.00 bank charge for each individual remittance.

2. Under PayPal, there will be 4% PayPal fee for each individual remittance.

3. We can put customers' orders down to production once we get the bank slip copy.

4. If order value less than 10,000USD, we should get 100% payment before production;

If order value more than 10,000USD, we accept 30% deposit before production and the balance should be paid off before delivery.

Lead Time

1. Sample order can be delivered from our factory in 3 working days.

2. General order can be delivered from our factory in 7 - 15 working days.

3. Big order can be delivered from our factory in 20-35 working days at most.

OEM / ODM Service

1. If the total order quantities are above 100pcs, we can silk-screen print customer’s logo on the products, and put customer’s model numbers in the labels, boxes.

2. We accept ODM projects, and welcome your enquiries!

Warranty Policy

We provide one-year warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, we will repair or replace it by free of charge.

1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.

2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 50% freight charge. All of our products are 100% passed strictly quality inspection before delivery.

Technical Support

We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately.
