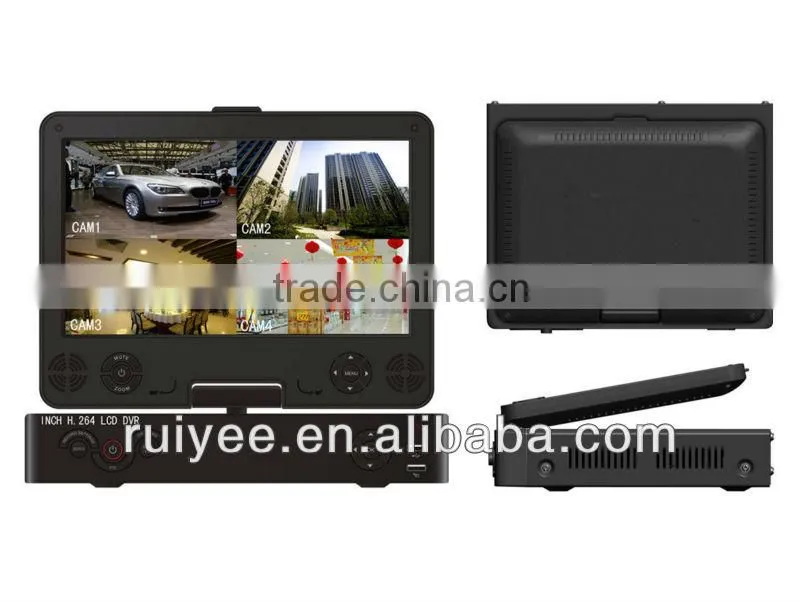

RY-6818HM H.264 CCTV Network 8CH HD All-in-one DVR With LCD Monitor

Name: RY-6818HM H.264 CCTV Network 8CH HD All-in-one DVR With LCD Monitor
Brand: Ruiye
SKU: 123404347
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Ruiye

Model Number:

RY-6818HM

Shenzhen Rui Ye Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Ruiye

Model Number RY-6818HM

Specifications

1.H.264 compression,compact size.
2.Multiplex Operation system
3.CMS Software Support multiple DVR connection

Features:

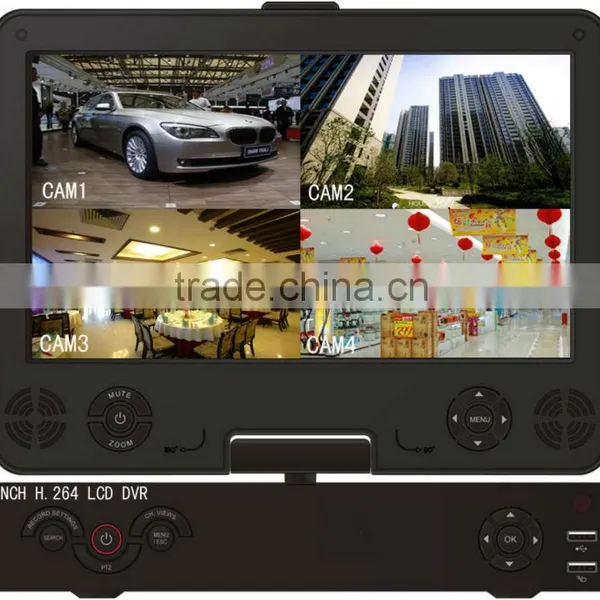

Creative all-in-one design, screen panel control 270 degrees revolving and 120 degrees turn over.

Integrate 10.5inch digital LCD, the screen resolution is 800X480.

H.264 compression format.

Support mobile phone surveillance

Support languages : English ,German, French, Spanish, Italian, Russian, Portuguese…

Video and audio real time recording and playback at the same time.

Support HD VGA output, the resolution is high to 1280X1024.

Searching modes: time / data searching, event searching, recording group searching.

Backup modes: network backup, USB 2.0 backup.

Support RS-485 PTZ control(speed dome camera), and preset positions operation.

Support USB mouse and infrared remote controller operation.

Multiplex operation: live ,record , playback, network can be operated at the same time.

Specifications:

Model	4 CHANNEL	8 CHANNEL
Operation System	Embedded Linux Operation System
Operation Interface	GUI, support mouse, pane, remote control operation
Video Standard	PAL, NTSC
System Resources	Multi-tasking operation, simultaneous multi-channel recording, simultaneous video playback and simultaneous network operation.
Video Compression	H.264
Audio Compression	G.711A
Recording Mode	Manual, Timing, Alarm, Motion detection
Search Mode	By time, event, channel, log
Backup Mode	Network download, USB backup
Video Input	4ch BNC	8ch BNC
Video Output	LCD:10.5 inch (Resolution:1024X768)	CVBS	VGA Resolution: 1280X1024
Audio Input	4ch RCA	4ch RCA
Audio Output	1ch RCA
Voice Talkback	1ch RCA
Live Video Resolution	PAL:720x576(D1 );NTSC:720x480(D1)
Playback Resolution	Relate on record resolution
Image Control	selectable
Remove Detection	Each channel can set independent detection zones and multilevel sensitivity
Video Display	1/4 multiple display	1/4/8 multiple display
Recording Frame Rate	PAL:25f/s(Adjustable)NTSC:30f/s(Adjustable)
Recording Storage	Local HDD, Network
Local Playback	Select any 4 channel playback at same time
Alarm Input	4ch	4ch
Alarm Output	1ch output
PTZ Control	RS485
HD Interface	1 SATA Ports
Network Interface	RJ4510M/100M Adaptable Ethernet Connection
Mobile Phone View	Support iPhone, blackberry, Windows Mobile, Android, Symbian
USB Interface	2 USB2.0 High-speed Port
Power Supply	12V 4A
