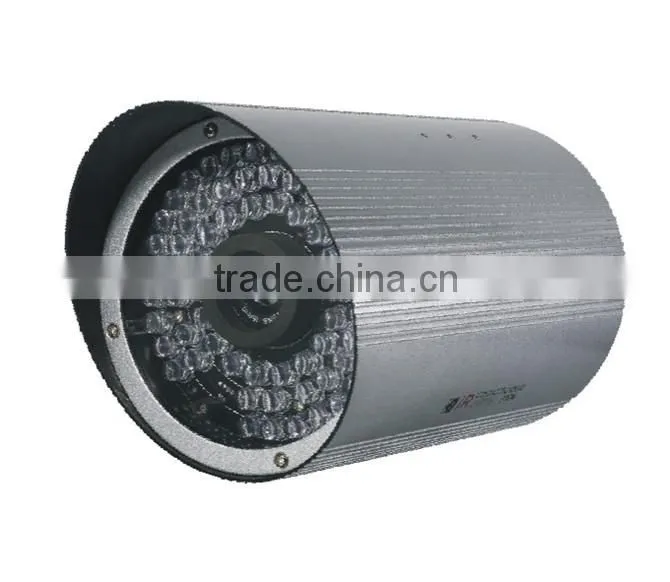

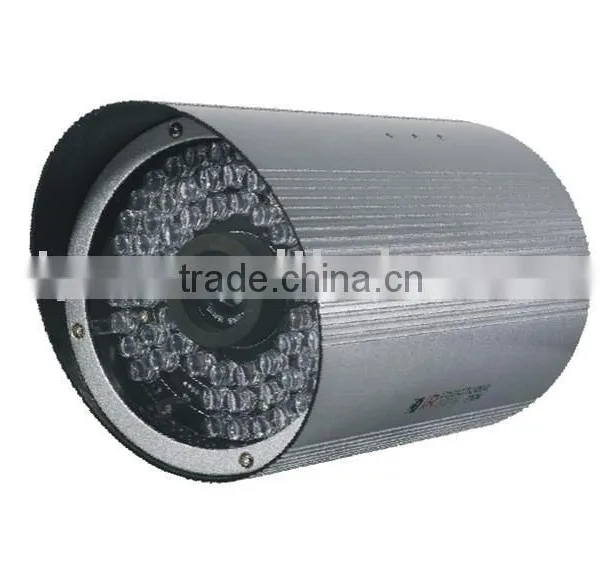

RY-7026 Cctv Eaterproof Bullet Ccd ir Nightvision Camera

Name: RY-7026 Cctv Eaterproof Bullet Ccd ir Nightvision Camera
Brand: Ruiye
SKU: 123403945
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Ruiye

Model Number:

RY-7026

Shenzhen Rui Ye Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Ruiye

Model Number RY-7026

Style Bullet Camera

Sensor CCD

Technology Infrared

Special Features Vandal-proof

Type Other, Video Camera

Specifications

1. 1/3sony,1/4sony,1/3sharp,1/4sharp ccd
2. 420/480/520/540TVL
3. Standard 8mm lens, 70lamps
4. waterproof,shock-proof

1.Pice-up Device:SUPER HAD CCD

2.Horizontal Resolution:420TVL

3.Power Supply:12VDC,Auto white balance

4.minimal illumination: 0.8lux /F1.2, S/N Ratio ≥48db

signal1.0vp-p750hms

6. Electronic shutter 1/50(1/60)-1/100000 Sec

7.standard:8mm lens. 70lamps. Night visual range:85-100m.

Image sensor	CCD
	1/4 SHARP	1/3SHARP	1/4SONY	1/3SONY
Signal System	PAL/NTSC
Horizontal Resolution	420TVL,480TVL,520TVL,540TVL
Level Synchronous Frequency	P:15.625KHZ/N:15.734KHZ
Clock Frequency MHZ	P:19.3125/N:19.0699
Scanning Systerm	2:1 interlace
Minimum Illumination	OLUX(IR LED ON)
Synchronous System	Internal, Negative sync
S/N Ratio	More than 48dB
Auto Electronic Shutter	P:1/50~1/100,000sec;N:1/60~1/100,000
Gama Characteristic	0.45
Video Output	1Vpp 75Ohms
Auto Gain Control	Auto
Effective pixels	PAL:500(H)X582(V), NTSC:510(H)X492(V)
lens	8mm
Led lights	70
IR distance	85-100mm
Voltage	12V±10%DC,
Operation Temperature	-10~+45°C
