Home > Products > CCTV Camera > RY-302 Mini Dome Camera With Bracket

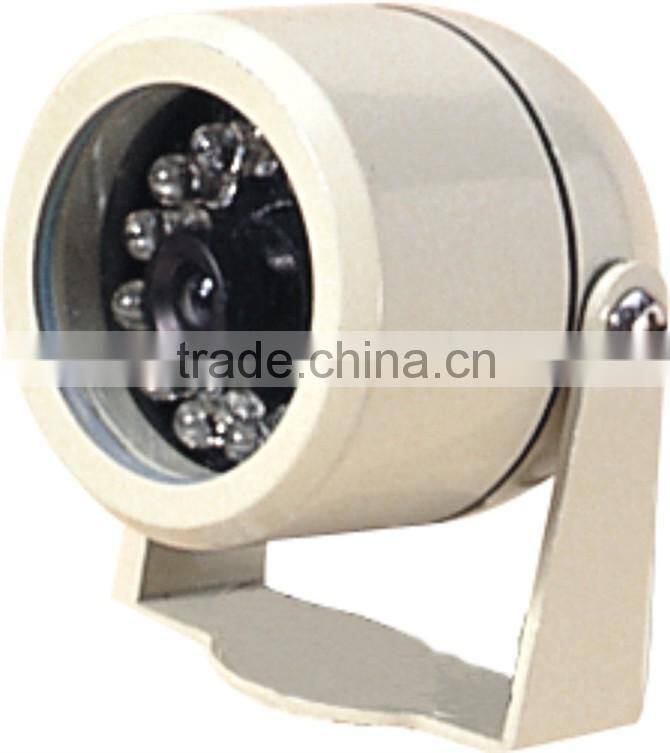

RY-302 Mini Dome Camera With Bracket
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | RuiYe | |
| Model Number | RY-302 | Type | Other, Analog Camera, Video Camera | |
| Style | Dome Camera | Sensor | CCD | |
| Technology | Infrared | Special Features | Waterproof / Weatherproof |
Product Description
Specifications
1. 1/3sony,1/4sony,1/3sharp,1/4sharp ccd2. 420/480/520/540TVL optional
3. Standard 3.6~8mm lens
4. waterproof
Image sensor | CCD | |||
1/4 SHARP | 1/3SHARP | 1/4SONY | 1/3SONY | |
Signal System | PAL/NTSC | |||
Horizontal Resolution | 420TVL,480TVL,520TVL,540TVL | |||
Level Synchronous Frequency | P:15.625KHZ/N:15.734KHZ | |||
Clock Frequency MHZ | P:19.3125/N:19.0699 | |||
Scanning Systerm | 2:1 interlace | |||
Minimum Illumination | OLUX(IR LED ON) | |||
Synchronous System | Internal, Negative sync | |||
S/N Ratio | More than 48dB | |||
Auto Electronic Shutter | P:1/50~1/100,000sec;N:1/60~1/100,000 | |||
Gama Characteristic | 0.45 | |||
Video Output | 1Vpp 75Ohms | |||
Auto Gain Control | Auto | |||
Effective pixels | PAL:500(H)X582(V), NTSC:510(H)X492(V) | |||
lens | 3.6mm | |||
| led | 12lamps | |||
IR distance | 15m | |||
Voltage | 12V±10%DC, | |||
Operation Temperature | -10~+45°C | |||
- 1/3 sony,1/4sony,1/3sharp,1/4sharp optional.
- we can print your beautiful logo on the case.
- we can design and print packing box according to your inquiry.
- stick your model No.&series No. on the cameras and package
