Home > Products > CCTV Camera > RY-3021 CCTV Mini Cmos Camera

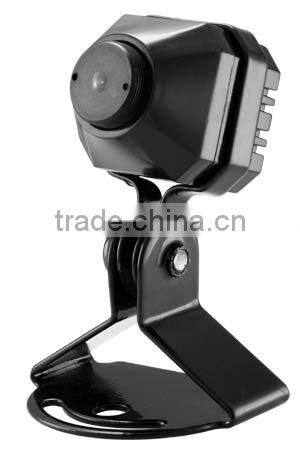

RY-3021 CCTV Mini Cmos Camera
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card PayPal
You May Like
-
RY-7066 600TVL SECURITY CCTV CAMERA OUTDOOR IR WATERPROOF
-
RY-6026 Cctv Outdoor Box Digital Camera
-
RY-7015 600TVL SONY COLOR CCD 48IR Black Bullet Waterproof CCTV Security Camera
-
RY-7002 1/3" Silver 600TVL 24 IR Leds Waterproof Surveillance CCTV Security Camera
-
RY-22*2005 Cctv Box Camera
-
DVR-7018 New Design Digital 8ch Mini Dvr With 7inch LCD Monitor
Product Details
| Place of Origin | Guangdong, China | Brand Name | RuiYe | |
| Model Number | RY-3021 | Type | Other, Analog Camera, Video Camera | |
| Style | Mini Camera | Sensor | CMOS | |
| Technology | Pinhole | Special Features | Other, security camera |
Product Description
Specifications
1.mini color cmos camera2. Standard 3.6mm lens
Image sensor | cmos | |||
Signal System | PAL/NTSC | |||
Horizontal Resolution | 380TVL | |||
Level Synchronous Frequency | P:15.625KHZ/N:15.734KHZ | |||
Clock Frequency MHZ | P:19.3125/N:19.0699 | |||
Scanning Systerm | 2:1 interlace | |||
Minimum Illumination | OLUX(IR LED ON) | |||
Synchronous System | Internal, Negative sync | |||
S/N Ratio | More than 48dB | |||
Auto Electronic Shutter | P:1/50~1/100,000sec;N:1/60~1/100,000 | |||
Gama Characteristic | 0.45 | |||
Video Output | 1Vpp 75Ohms | |||
Auto Gain Control | Auto | |||
Effective pixels | PAL:500(H)X582(V), NTSC:510(H)X492(V) | |||
lens | 3.6mm | |||
Voltage | 12V±10%DC, | |||
Operation Temperature | -10~+50°C | |||
