Kiloview encoder is a compact H.264 encoder / decoder designed to stream live HD video directly to the Web, point to point over the Internet, and to iOS and Android devices.
Local Monitoring on IOS & Android Devices
Monitor every shot on your laptop, iOS, or Android device in real-time!

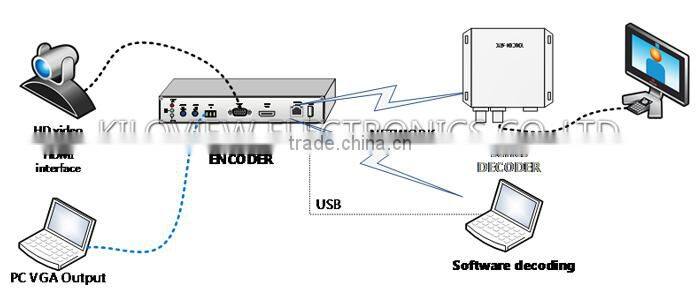

Point to Point Streaming
Stream on local networks, over the Internet, or directly to your H.264 decoder with the delivery method of your choice. Kiloview's comprehensive support for transport protocols means you'll be prepared for any IP video workflow!
Any Streaming Platform. Anytime. Anywhere
Kiloview gives you the power to stream to any online video platform. With native integration with Livestream, Ustream, YouTube Live, and , streaming to the Web has never been easier.
Kiloview Decoders
Kiloview decoders allow you to output your encoder's video feed into switchers, monitors, and recorders via HD-SDI or HDMI.
Kiloview IPTV H.264 Video Encoder with 1080p60
- Support HDMI 1.3/HDCP 1.3;
- Analog audio input/output, realizing two-way voice talkback;
- RS-485 serial controlling interface, supporting PTZ cloud control;
- Support HDMI maximum 1080p60 video input, VGA maximum 1920x1200@60Hz (WUXGA) input. HDMI/VGA could choose automatically based on signals or manual choice;
- Auto identification of video input signal format, no need manual setup;
- H.264 High Profile (up to level 4.1) encoding, encoding delay is bellow 50ms;
- AAC-LC high acoustic fidelity audio encoding, supporting G.711 audio encoding as well;
- Support dual streams (main stream up to 1920x1080@30fps and sub stream up to 720x480/720x576@30fps );
- Support RTP/RTSP/ UDP-TS transmission protocol;
- Support RTMP push protocol, compatible with streaming media servers like Wowza/FMS/RED5;
- Compatible with ONVIF 1.1/2.0 specification, easy to integrate with NVR and software management system;
- Encoding bitrate is adjustable, picture quality can be controlled;
- Web management interface, online video preview;
- Support USB acquisition, providing standard Direct Show Capture interface and Audio Driver( *After hardware version 3.0);
- Provide SDK for second development.
Interface |
Video input |
1*HDMI 1*VGA |
Video source selection |
HDMI or VGA |
|
Analog audio input |
1*3.5mm |
|
Analog audio output |
1*3.5mm |
|
RS-485 |
1* 3PIN |
|
Network |
1*RJ-45, 10/100M self-adaptive Ethernet |
|
USB |
1*USB 2.0 |
|
Power Supply |
DC 12V, 2A (External Power Supply) |
|
Signal |
HDMI |
HDMI 1.3 / HDCP 1.3 |
Supported HDMI formats |
1080p/1080i/720p/480p/576p/480i/576i (up to 60Hz) Compatible with VESA display resolution |
|
VGA compatible standard |
VGA/XGA/UVGA/SVGA/SXGA/SXGA+/WXGA/WXGA+/ |
|
Supported VGA formats |
VESA standard resolution up to 1920x1200@60Hz |
|
Encoding |
Video encoding |
H.264 high profile( up to level 4.1 ) |
Audio encoding |
AAC-LC, G.711(u-Law/a-Law) |
|
Encoding delay |
≤50ms |
|
Video encoding bitrate |
512Kbps ~ 20Mbps |
|
Audio encoding bitrate |
64Kbps |
|
Transmission |
Media transmission protocol |
RTP/RTSP, RTMP, HLS, MPEG-TS Push, HTTP
|
Controlling protocol |
TCP |
|
Network Management Protocol |
HTTP / Onvif |
|
PTZ controlling protocol |
Pelco-D / Sony Visca(through RS485) |
|
Management |
Management interface |
Web |
Remote management |
Support |
|
Firmware upgrading |
Support |
|
Operation environment |
Operation temperature |
0℃ ~ 80℃ |
Relative Humidity |
20 ~90%RH(non-condense) |
|
Power consumption |
5W |

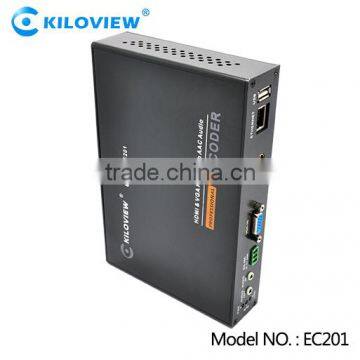

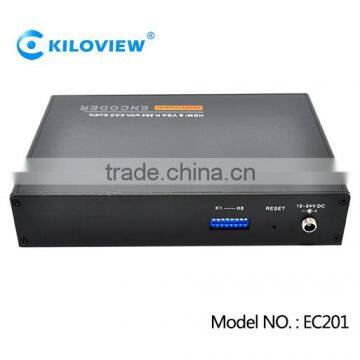

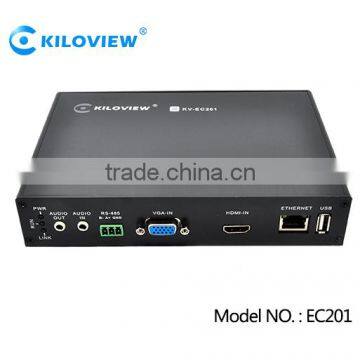

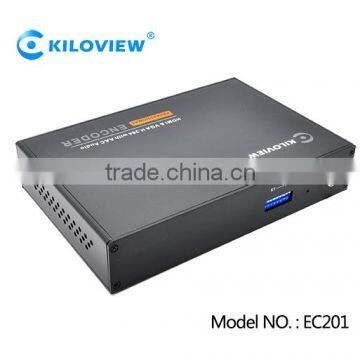

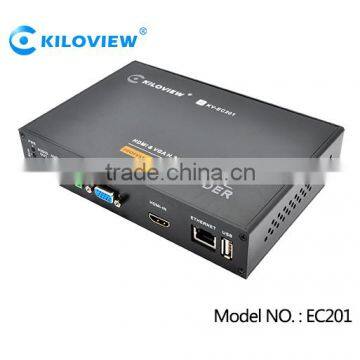

Kiloview KV-EC201 HDMI RTSP Encoder

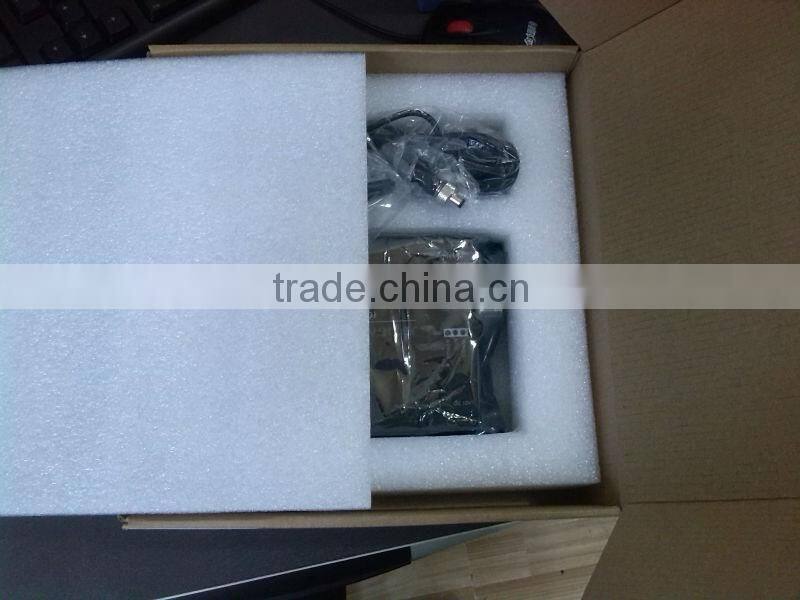

Shipping
- FCL - Full Container Loading
- LCL - Less Container Loading
- EXPRESS
- Air Shipment
KILOVIEW Electronics Co., Ltd. is a professional high-tech enterprise which engaged in HD audio and video transmission, product R&D control, and providing technology and solutions for digital video. Each product will be shipped out after being tested and checked qualified by our professional quality inspectors and testers in the production department. Our products have been operated continuously for 24 hours, 6 months in clients' specific project, very stable and without error, getting customers' affirmation and recognition.
