DTNX-60Y Mechanical Hand Style Duel Lines Eye Drop Filling, Plugging And Capping Machine
Brief introduction:
This machine is the new machine which in these years we design and make it. Man can set the number of steps
peristaltic pumps with microcomputer to perform metering filling (special occasions with ceramic pump). It has the
functions: automatic filling, automatic plugging and capping. The machine is equipped with special internally unique
mechanical hand. These can ensure the plug and the out cover to enter the bottle, so that it achieves fully
automatically. The machine fully meets with new GMP requirements.
Characteristic:
1:be setted by microcomputer, high precision, easy operate.
2:filling system has sucked back, no dropping or leakage
3:use the mechanical hand to plug and press the cover
4:no bottle, no filling ,no plugging and no capping
Main technical parameters:
Filling Volume 2-50ml
Productivity 100-120 bottles per min
Filling Precision ≤±1%
Power Supply 380V/220V 50HZ/60HZ
Capping Rate ≥99%
Stoppering rate ≥99%
Air Supply 2 m3/h 0.4-0.8Mpa
Power 40 kw
Weight 400 kg
Dimension 2400*1100*1500mm
Terms and Conditions:
Payment: 30%TT in advance, 70%TT before machine ship out;
Delivery time: around 60 days to leave our factory after advance payment and samples
Warranty: one year after shipment.
Packing: according to export standard

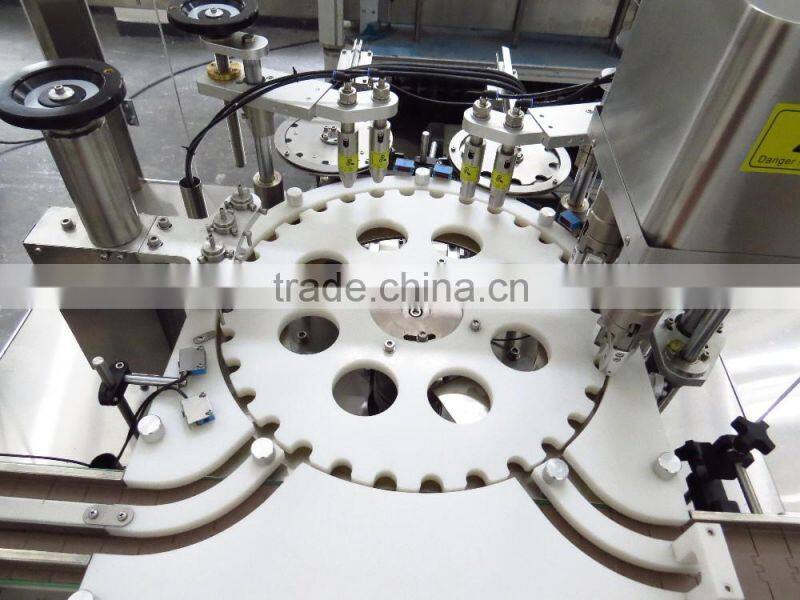

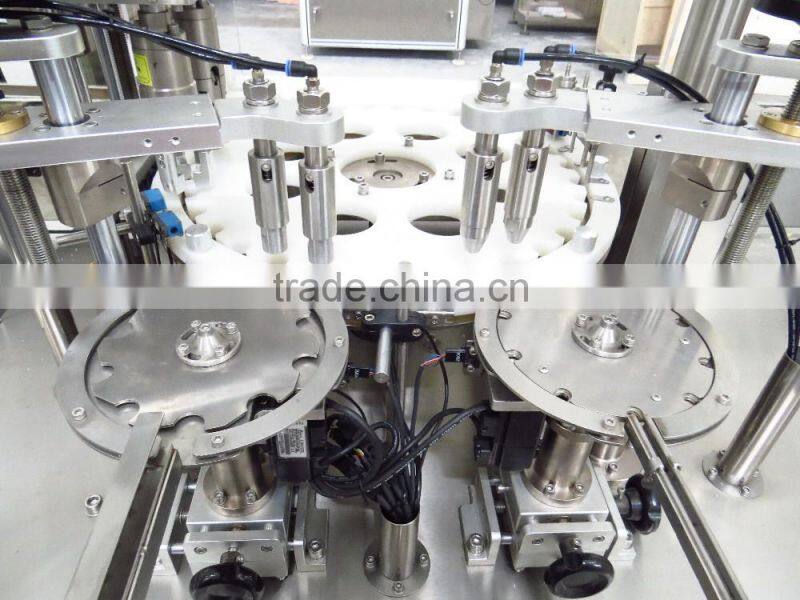

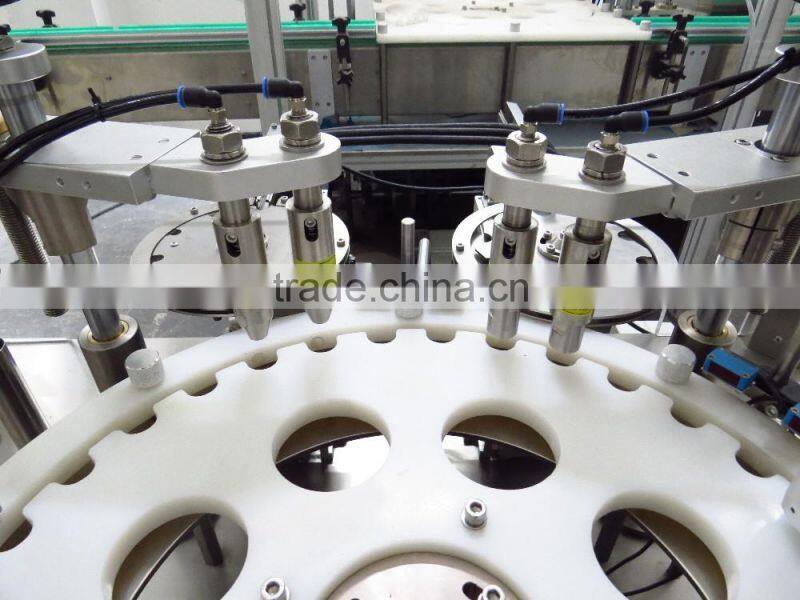

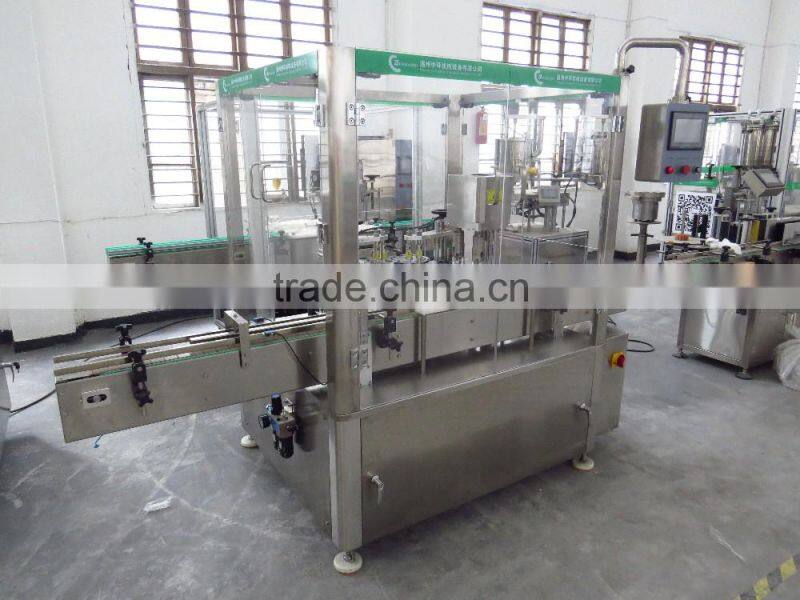

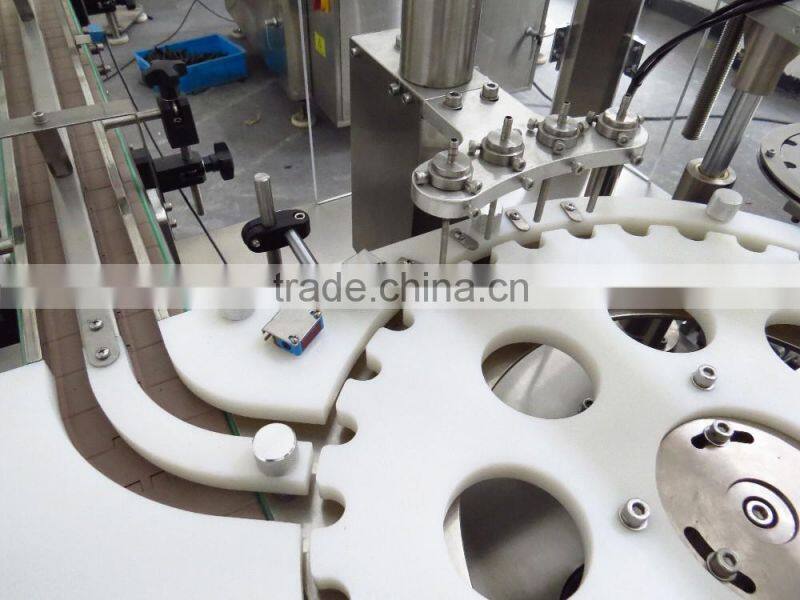

See following some photos :
Welcome to email us to know more advantages of our machine. We will send you videos and detailed photos together, which will surprise you !!
