ZHF-S2000 Pre-fillable Vacuum Syringe Filling Plugging Machine

Name: ZHF-S2000 Pre-fillable Vacuum Syringe Filling Plugging Machine
Brand: ZHONGHUAN
SKU: 123398041
Availability: InStock

US$ 100,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Function:

Filling, Sealing

Application:

Chemical, Medical

Wenzhou Zhonghuan Packaging Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Function Filling, Sealing

Application Chemical, Medical

Packaging Type Other, syringe barrels

Packaging Material Plastic

Driven Type Electric

Power 1.1Kw

Place of Origin China

Brand Name ZHONGHUAN

Model Number ZLS400

Dimension(L*W*H) 1560*800*1800mm(L*W*H)

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

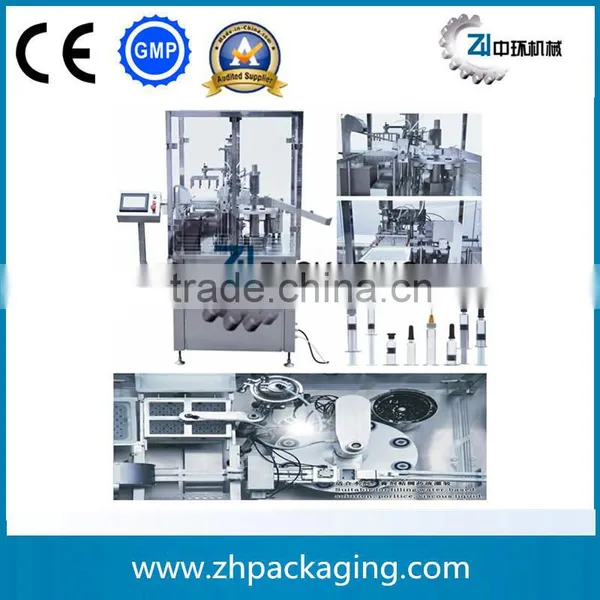

ZHF-S2000 Pre-fillable vacuum syringe filling plugging machine

Features:

l Load a tray by hand and to load syringes tubes automatically and continuously

l The needle of syringes are filling and the liquid going up, Be sure the liquid no overflow

l Insert plunger with vacuum, be sure the plunger and liquid level closed enough without air.

l Syringe machine can inspect by itself, it case accident happen.

l The material contact parts are AISI 316Lstainless steel and ceramic

l Star wheel type automatic produce and convenient to operate

Parameters

Component origin

NO	NAME	QTY	ORIGIN	REMARK
1	Filling needle	1	Self-produce	316L,mirror polish
2	Ceramic pump	1	Jiangsu
3	Ceramic valve	1	Jiangsu
4	Vacuum cup	8	Self-produce
5	Vacuum pump	1	Switzerland Piab	Clean and low noise type
6	Transmission motor	1	Jiangsu.Deli	0.75KW
7	Servo Motor	4	Taiwan,Delta	400W
8	Touch screen	1	Taiwan,Eview	7 inches
9	PLC	1	Taiwan,Delta
10	Air-break switch	6	Zhejiang,CHNT
11	Lead screw	4	Taiwan, Sheheng Jaan	Ball screw (high resolution)
12	Linear guide way	6	Japan,IKD
13	Solenoid valve	12	Japan SMC
14	Cylinder	12	Tawiwan Airtac
15	Optical fiber	3	Japan Panasonic
16	Pressure controller	4	JAPAN SMC
17	Vacuum Chunk	8	Switzerland Piab
18	The isolation glass	6	ACRYLIC	8mm thickness
19	Printer	1	Beijing Xunpu	batch number, production, the production date
