ZHS-2B-1 Auger Powder Filling Machine for bottle
- 50 Set / Sets per Month
- NINGBO
- T/T
- Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
- PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
- Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
- Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
- Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
- high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
Condition: | New | Application: | Chemical, Food, Other, Medical, Chemical, Food, Machinery & Hardware, Medical | Packaging Type: | Bags, Bottles, Cans |
Packaging Material: | Other, Powder | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 3P /208-415V 50/60Hz | Power: | 1.6KW | Place of Origin: | Zhejiang, China |
Brand Name: | ZHONGHUAN | Model Number: | ZHS-2B-1 | Dimension(L*W*H): | 2000*970*2030mm |
Weight: | 320kg | Certification: | SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

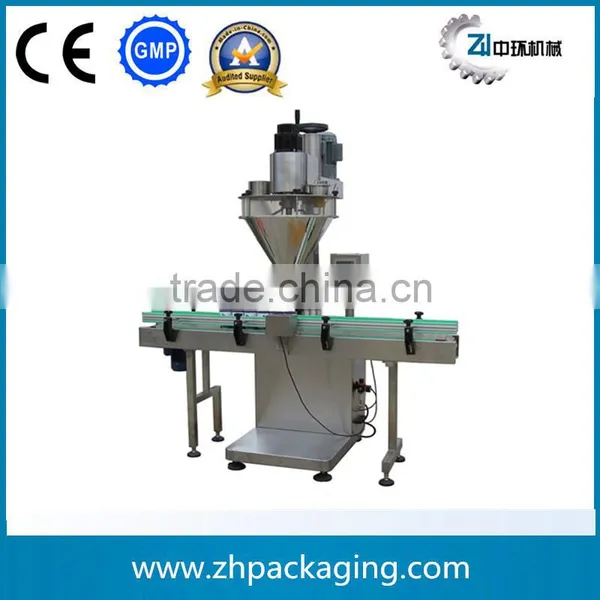

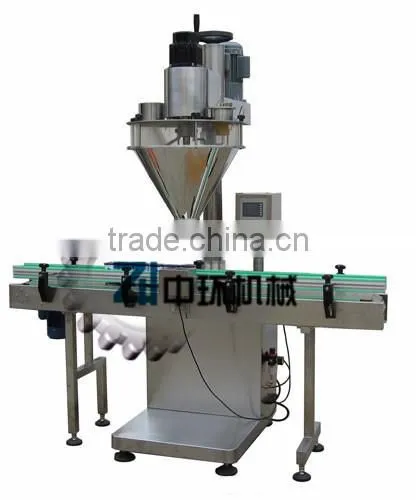

ZHS-2B-1 Automatic Powder Auger Filling Machine for Bottle
Description:
This Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular. It consists of the Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).it fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Main features:
* Stainless steel structure; The quick disconnecting hopper could be washed easily without tools.
* Servo motor drive screw.
* PLC, Touch screen and weighing module control.
* To save all product’s parameter formula for later use, save 10 sets at most.
* Replacing the auger parts, it is suitable for material from super thin powder to granule.
* Include handwheel of adjustable height.
Optional devices:
* Leakproof acentric device
* Pneumatic flap
* Dust collecting cover
* Level Split hopper
* Can lifting device
* Online weighing system
Main technical parameters:
Model | ZHS-2B-1 |
Dosing Mode | Directly dosing by auger |
Filling Weight | 10g - 5kg |
Packaging Accuracy | ≤100g, ≤±2%; 100 - 500g, ≤±1%; ≥500g,≤±0.5% |
Packing Speed | 15 - 60 bottles/min |
Power Supply | 3P /208-415V 50/60Hz |
Total Power | 1.6KW |
Air Supply | 6kg/cm2 0.05m3/min |
Total Weight | 320kg |
Overall Dimensions | 2000×970×2030mm |
Hopper Volume | 45L(Enlarged size 65L) |
Terms and Conditions:
Payment: 30%TT in advance, 70%TT before machine ship out;
Delivery time: around 30 days to leave our factory after advance payment and samples
Warranty: one year after shipment.
Packing: according to export standard
See following some photos :
Welcome to email us to know more advantages of our machine. We will send you videos and detailed photos together, which will surprise you !!
