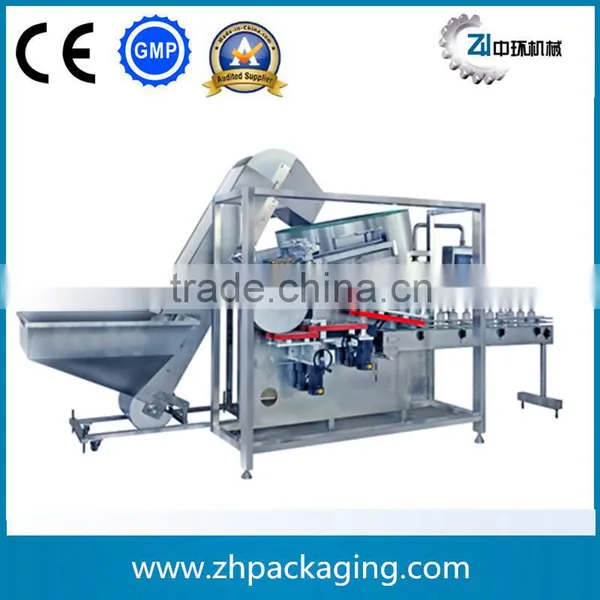

Automatic Bottle Unscrambler ZHLP-6A
1. It consists of bottle feeder, host machine and conveying motor, PLC control system, touch screen and drive devices.
2. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.
3. Packing specification: ≤ 1 L
4. When caps are changed, it’s easy to adjust the machine.
Major Characteristics:
The machine is consisting of bottle feeder, host machine and conveying motor, PLC control system combines all the drive devices together. The set figures can be alternated via touch screen panel to meet your different requirements. It is only necessary to change rotary plate in the bottle sorting barrel targeting different materials, and other parts can be freely adjusted. The machine is mainly made of stainless steel 304 and aluminum alloy, strictly based on GMP. With elegant appearance and high efficiency, it is adapted to different conditions, Drive parts of this machine are protected by guard cover, more safe and environmental.
Main Performance Parameter:
1. Production capacity
Bottle Volume; Speed (bottles/hour)
50ml~200ml ≤9000
800ml ≤6000
1000ml ≤4800
2. Diameter of the bottle: 30mm~100mm
3. Bottle Height: 100~250mm
4. Power supply: AC380v; 50Hz
5. Main Power: 2.2kw
6. External Dimension (L×W×H): 4670mm×2050mm×2500mm
7. Weight: about 1500kg
