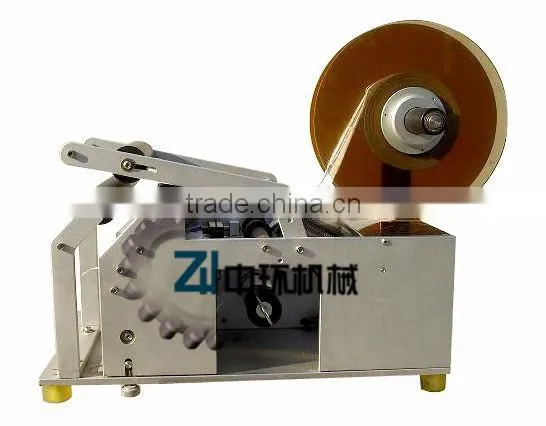

Help CenterZHXT-0120 Semi Automatic Round Bottle Labelling Machine
Related Products
-
ZHXT-0110 Semi Automatic Flat Labelling MachineUS$ 1,750 - 2,500MOQ: 1 Set -
ZHTB01 Round Bottle Big Stand Labeling MachineUS$ 6,000 - 7,000MOQ: 1 Set
-
ZHTB02 Wenzhou Positioning Self-adhesive Labeling MachineUS$ 15,000 - 20,000MOQ: 1 Set
-
ZHSP-100Y Pvc Label Shrink MachineUS$ 20,000 - 25,000MOQ: 1 Set
-
ZHTBS02 Double Sides Front and Back Bottle Labeling MachineUS$ 10,000 - 20,000MOQ: 1 Set
The Semi-auto Round Labelling Machine
Description:
* Semi-automatic Round Bottle Labelling Machine is suitable for columniform packing object or columiform object semi-automatic labeling machine in beverage,foodstuff,chemical,electron,hardware and other industry.
* The function is advance, easy operation, structure compact. Adopt to photoelectricity examine, PLC control, label nicety; at the same time it has the unction of no object no labeling, no label can revise by itself, and automatic to check.
Main Technical Parameter:
Capacity: |
20-40bpm |
Bottle diameter (Max) |
φ30~100mm |
Label Object Dia. |
Φ30 -φ100mm |
Label Diameter |
Φ10-Φ150mm |
Label Width |
Φ15-Φ315mm |
Label Core Inner Dia. |
Φ75mm |
Label Reel ExternalDdia. |
Φ300mm |
Labeling Accuracy |
±1mm |
Power: |
0.8KW |
Voltage: |
220V,AC,50HZ,single phase |
Weight: |
28KGS |
Overall Dimension: |
650×450×450mm |
Terms and Conditions:
Payment: 30%TT in advance, 70%TT before machine ship out;
Delivery time: around 15 days to leave our factory after advance payment and samples
Warranty: one year after shipment.
Packing: according to export standard

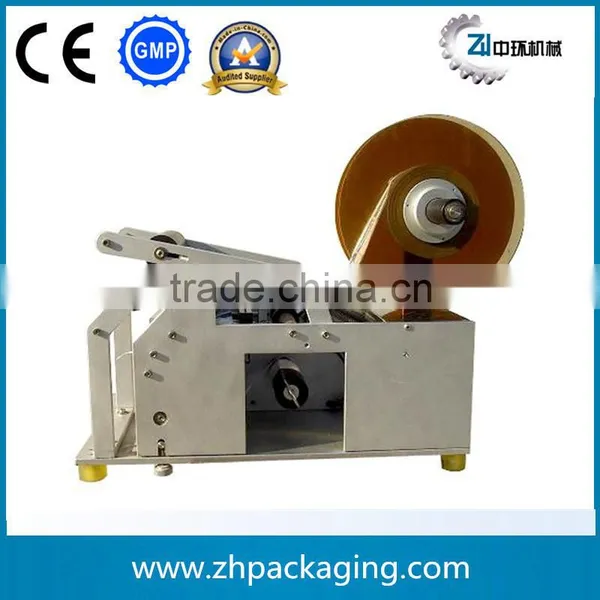

See following some photos :
Welcome to email us to know more advantages of our machine. We will send you videos and detailed photos together, which will surprise you !!
