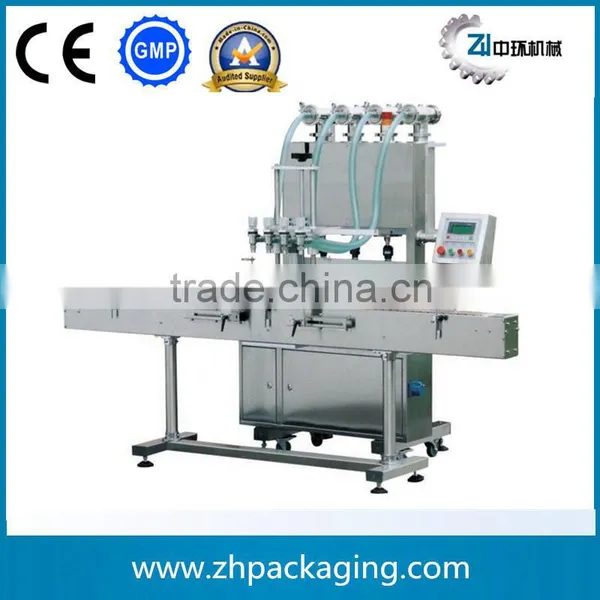

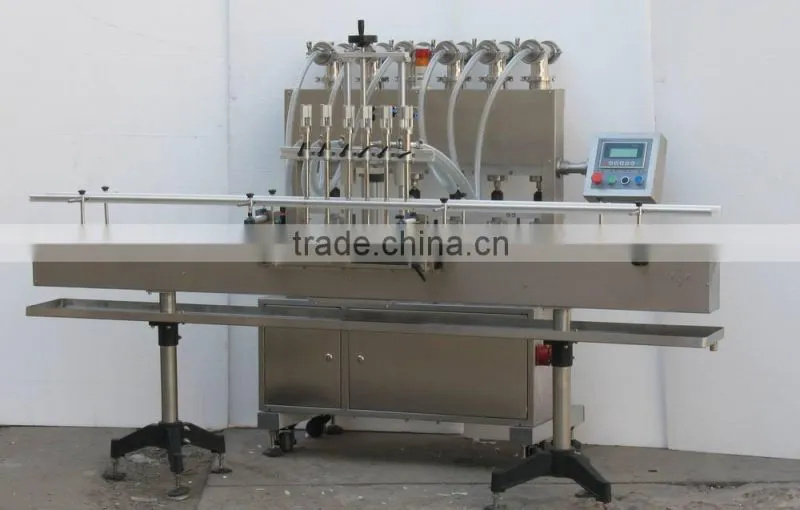

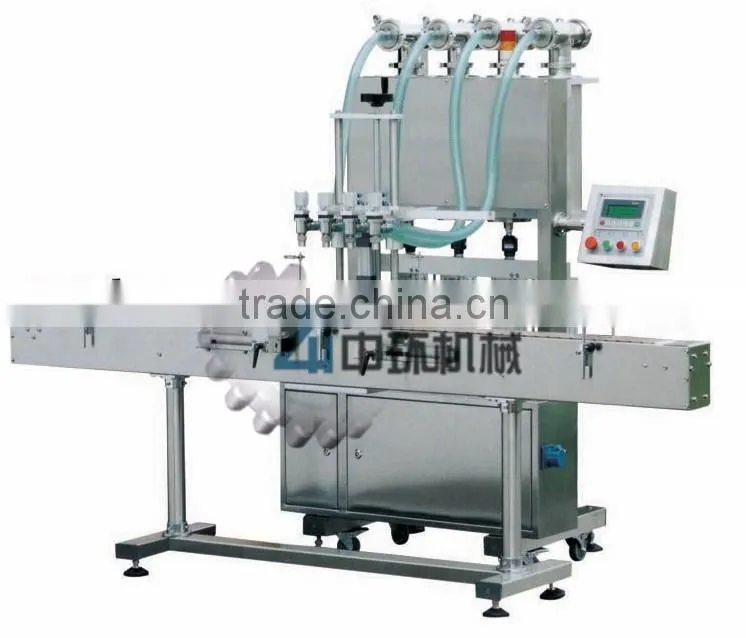

ZHY4T-4G Automatic Edible Oil Machine
ZHY4T4G is improved in design at the foundation of consulting the same products abroad, and has increased by some additional functions. Make the products more simple and more convenient in operation, precision and error, installation and adjustment, equipment wash, maintenance etc..
1.Widely suitable for the industries, such as daily chemical, grease, etc., can fill different liquid products. This machine is compact and rational in design, succinct and beautiful I appearance, adjustment of filling volume is convenient.
2.This machine has four filling heads, which are droved by four cylinders, it is faster and more accurate to filling materials.
3.Adopt the pneumatic part of Germany FESTO and Taiwan Airtac, and the electric control part of Taiwan. Performance is steady. The part contacting materials is made of 316L stainless steel.
4.Adopt the photoelectric eyes device of Korea S., Taiwan PLC, touch-sensitive screen, frequency converter and French electric apparatus components.
5.Adjustment is convenient, and filling carried out only with bottles fed, filling volume is accurate and with count function. Adopt filling head of anti-leakage and anti-pull, filling lifting system of anti-high blister products, orientation system of guaranteeing bottleneck orientation and liquid location control system.
Technical Parameter
Filling Speed: 20-40 bottles/min
Filling Accuracy: ≤±1%
Air Pressure: 0.4-0.6MPa
Current: 3A
Power: 500W
Electricity: 220/110V 50/60Hz
Optional Model: 25-60ml 50-125ml 100-250ml 200-500ml 400-1000ml 9000-2500ml 2200-5000ml
