ZRJ- 50L Vacuum Mixing Machine

                                                                     Vacuum Mixing Machine

Description:

It was one high efficiency device with reaction, mix, disperse function, suitable for mixing the high viscidity emulsification, adopts to vacuumize way, discharge air bladder. (suitable for cosmetic industrial, ointment technics, bond, chemical, pharmacy industrial between liquid and liquid, solid and liquid to mix, reaction, and dissolve technics)

Characteristic

1. The material of boiler cover was automatic rising, convenience to load the material and clean.
2. Interlayer boiler had a heating and preservation function, if input cool water, it will have cool function

ZRJ-5OL Vacuum Emulsification Mixer

1.Dimention: 2400Lx1600Wx1670Hx2300mm(Fully height).

2. Emulsification Boiler:50L with SUS316L,Heated by electricity and cooled by water

3.Emulsification Boiler Structure:Two jacket structure .the inner deck is SUS316L,5mm thickness and polished in 300MESH.Middle deck is SUS304,4mmThickness and working pressure 0.3Mpa. The outer deck is SUS304,2mm and polished in 300MESH.Heat preservation jacket adopt Polyurethane Foam technics.Stir power is 0.75KW with 1420r/min.Material outlet is with pneumatic discharging valve.the cover is connected with the boiler body by clamp.

4 .Emulsification boiler with 3 sets stirring device:

      a.Homogenizer: 3KW ,0-3600r/min(speed by transducer)

       b. impeller: 0.75KW ,0-100r/min(speed by transducerk)

c. Scraper is conversely running,sharing the same motor with impeller with 0-100r/min

5 Main Parts on the Emulsification Boiler:

the material inlet with the filter,,adding material inlet,Vacuum,vent,Sight glass,Temperature sensor,CIP,material outlet,safty valve,pressure meter,negative pressure sensor ects devices..

6. Pre-treatment Boiler:(A material Boiler,B material Boiler)

  A and B Boiler: 45L ,heated by electricity ,cooled by water

  Design:the boiler’s cover can be half open.Boilers are with stir and temperature controller.

Two jacket structure :the inner deck is SUS316L,5mm thickness and polished in 300MESH.Middle deck is SUS304,4mm

Thickness and working pressure 0.3Mpa. The outer deck is SUS304,2mm and polished in 300MESH.Heat preservation jacket adopt Polyurethane Foam technics.Stir power is 0.75KW with 1420r/min.Material outlet is with pneumatic discharging valve.the cover is connected with the boiler body by clamp.

7.Hydraulic pressure system:

       oil tank,oil vat,Solenoid valve,Overflow valve,Hydraulic circumfluence control Valve etc..

8 .Vacuum System:

       Vacuum Pump of the Emulsification Boiler : Model ZBV2060

Evacuating Air :32M2/h

Power:0.75KW

9.Electrical Controlling System:

Touch Screen:Siemens

Transducer:Panasonic

Button:Schneider

Meter,Sensor,Temperature Controller:Chinese famouse brand

*The Emulsification,Heating,and cooling time can be input in the Touch Screen ,and the control is automatical

10.Seal

 Seal Material:Silicon O-ring

11. wire head is clamped and with the cap.

12. this machine is divided into two parts,The Emulisification Boiler and A and B Boiler.The A and B boiler can be designed

with the moving wheel which is the brake function or can be designed with the working stage .

13 .Each corners on the surface are in arc and smooth.

Terms and Conditions:

Payment: 30%TT in advance, 70%TT before machine ship out;

Delivery time: around 50 days to leave our factory after advance payment and samples

Warranty: one year after shipment.

Packing: according to export standard

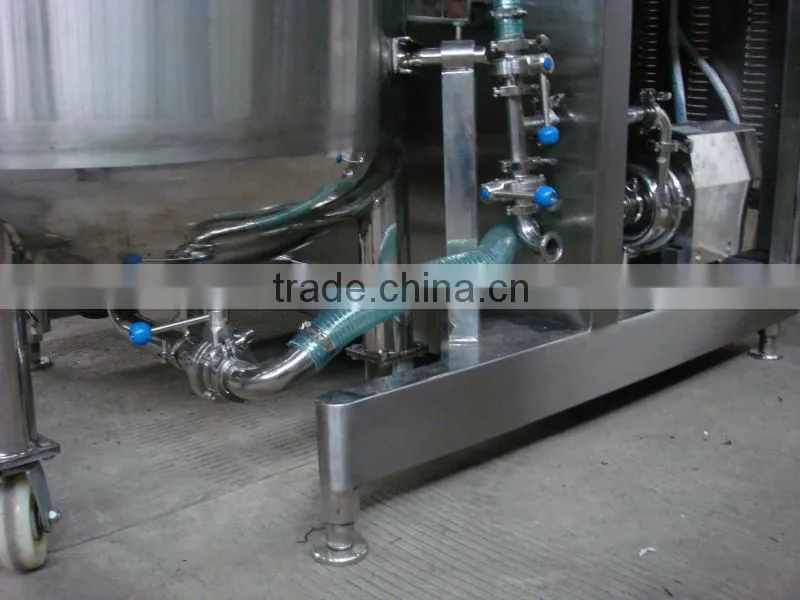

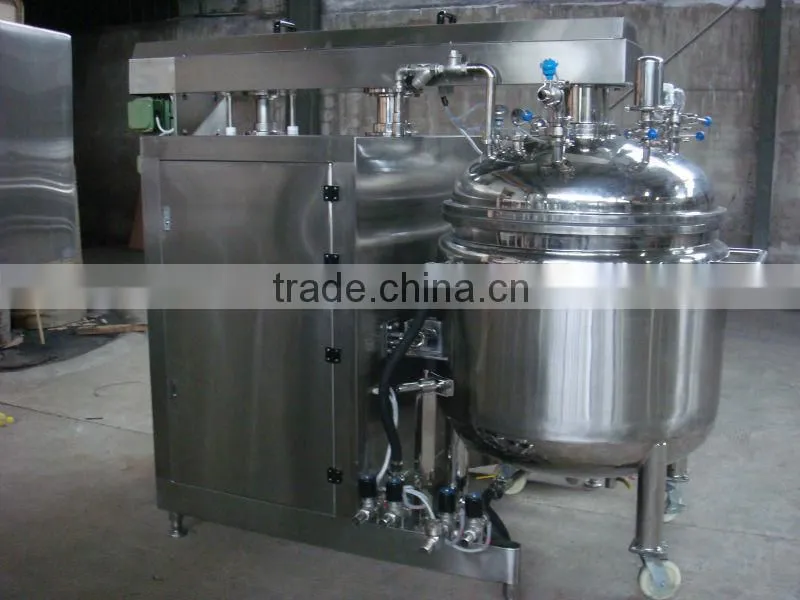

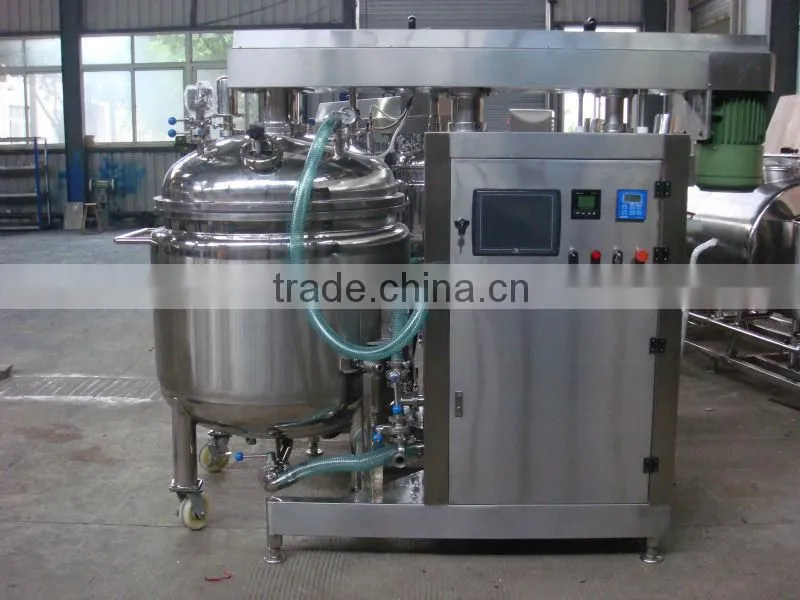

See following some photos :

Welcome to email us to know more advantages of our machine. We will send you videos and detailed photos together, which will surprise you !!
