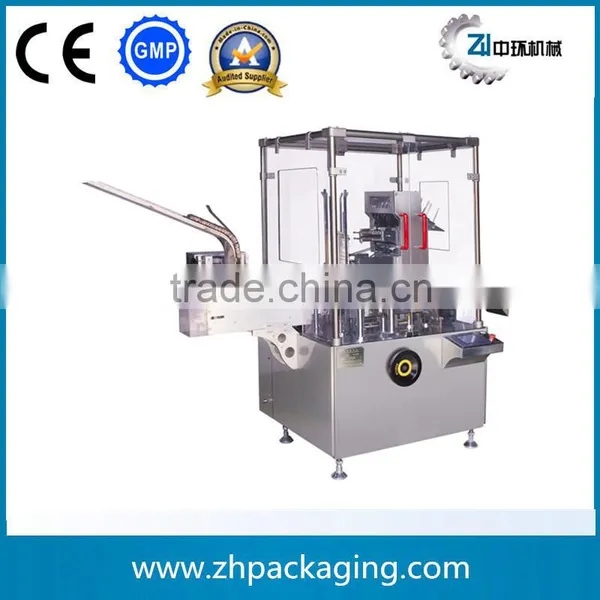

Vertical Blister Cartoning Machine
* This equipment is new model developping base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
** This machine is suitable for automatic feeding product of multi-variety multi-specifications into carton (either for blister or bottle).Adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly.On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product ou
Feature:
1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system.
3 Automatically stop when machine is overload.
4 Automatically reject lacking of package product and leaflet.
5 Automatically display trouble, Alarm and count finished products. 6 Stable performance,operation is easy.
Main technical parameters:
Item |
Parameters |
||
Speed |
30-120box/min |
||
Box |
Quality requirement |
250-350g/M2 [Base on carton size] |
|
Dimension range(L×W×H) |
(65-125)mm×(30-85)mm×(12-50)mm |
||
Leaflet |
Quality requirement |
60-70g/ M2 |
|
Unfolded leaflet specification(L×W) |
(80-250)mm×(90-170) mm |
||
Fold range(L×W) |
[1-4]Fold |
||
Compressed air |
Working pressure |
≥0.6mpa |
|
Air consumption |
120-160L/min |
||
Power supply |
220V 50HZ |
||
Main motor power |
1.10kw |
||
Machine dimension(L×W×H) |
215 mm ×1140 mm ×180 mm |
||
Machine weight |
about 1100kg |
||
Terms and Conditions:
Payment: 30%TT in advance, 70%TT before machine ship out;
Delivery time: around 50 days to leave our factory after advance payment and samples
Warranty: one year after shipment.
Packing: according to export standard

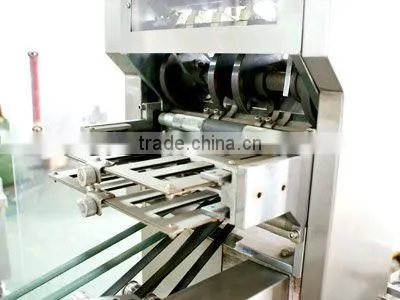

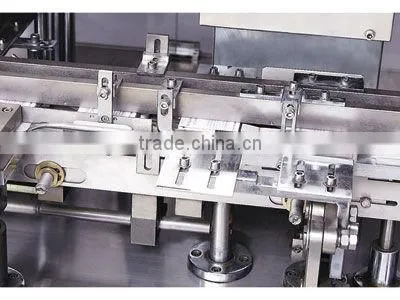

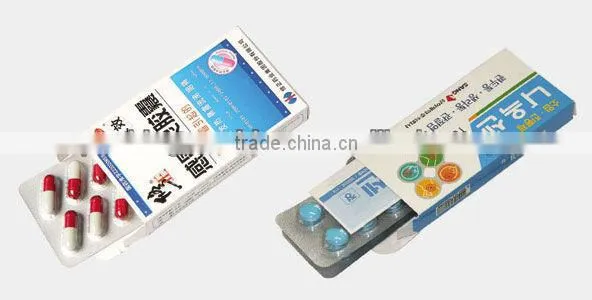

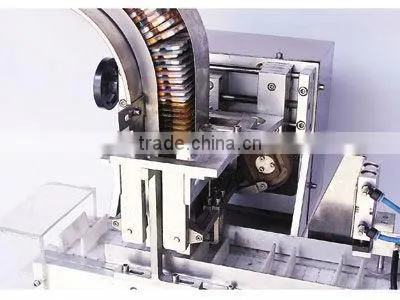

See following some photos :
Welcome to email us to know more advantages of our machine. We will send you videos and detailed photos together, which will surprise you !!
