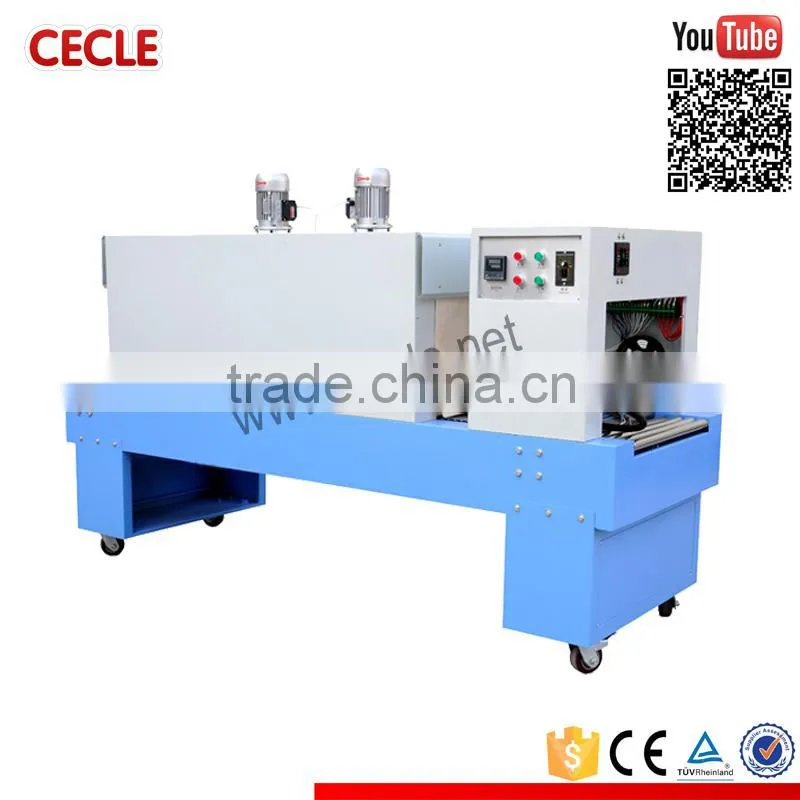

shrink tunnel machine
Features
1. Electric therm static control.
2. Sealed silica envelope heating system generates heat continuously and equipped with powerful wind circulatory system, heating process is more stable.
3. Works as a single tunnel or with a conveyor.
4. After reaching the set temperature, the tunnel will turn to constant temperature state.
5. Independent temperature control and speed governor, more precise.
Other Notice

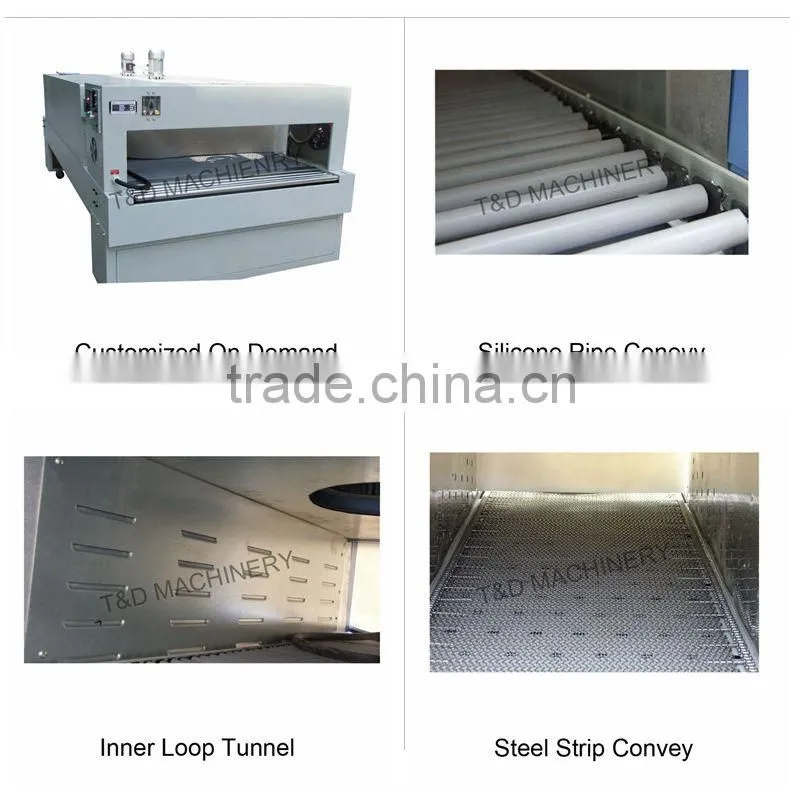

- The tunnel size and length can be customized.
- This is only a shrink tunnel.
- Suitable for PE, PVC, POF film shrink wrapping etc.
- Three-phase four-wire system.
- Adjust the motor speed and temperature on the control panel, before using, keep the tunnel being pre-heated for minutes.
| Film | Thickness | Heating Time | Tunnel Temperature |
| PVC | 0.02~0.06mm | 5~10s | 140~160 Celsius Degree |
| PP | 0.02~0.04mm | 6~12s | 160~200 Celsius Degree |
| PE | 0.03~0.10mm, 0.12~0.20mm | 8~16s, 30~60s | 160~200 Celsius Degree, 180~200 Celsius Degree |
Model |
BSE5040 |
BSE5540 |
BSE6040 |
Voltage(V/Hz) |
380/50 |
380/50 |
380-415/50 |
Heating pipe power(kg) |
20 |
21 |
22 |
Conveyor speed(m/min) |
0-8 |
0-8 |
0-8 |
Product size(cm) |
50*40*150 |
55*40*145 |
60*40*150 |
Transport capabillity(kg) |
40 |
40 |
40 |
Machine dimension(cm) |
250*75*140 |
255*80*140 |
250*85*140 |
| Weight(kg) | 280 |
300 |
320 |
About the plug and voltage (For an electric machine)
Please inform us the required voltage and plug you need before placing order.
We assume no liability or responsibility for the consequence of machine not working caused by wrong voltage or plug.
Thank you!
| Packaging details | Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety; |
| Shipping methods | 1. Shipping by sea(recommend big product or a lot of goods of the order) |
| 2. By air | |
| 3. By express: TNT, EMS, DHL, Fedex, UPS etc |
Shipping Port: Port of Ningbo
1. Each machine is manufactured by professional experienced staff.
5. We can also offer PVC, PE films, BOPP films, stamping dies, hot foil papers etc.
1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.
2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.
3. We adhere to the philosophy of quality wins and innovation makes success.
4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: Do you have a sealer to suit this tunnel?
A: Yes, we surely can offer a complete set of shrink tunnel and sealer.
Q: Can you offer the shrink films?
A: We also offer best quality shrink films.
Q: This tunnel is small for my product, can you make a bigger one?
A: Yes, the tunnel size can be customized to suit customer's requirement.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 1000USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
