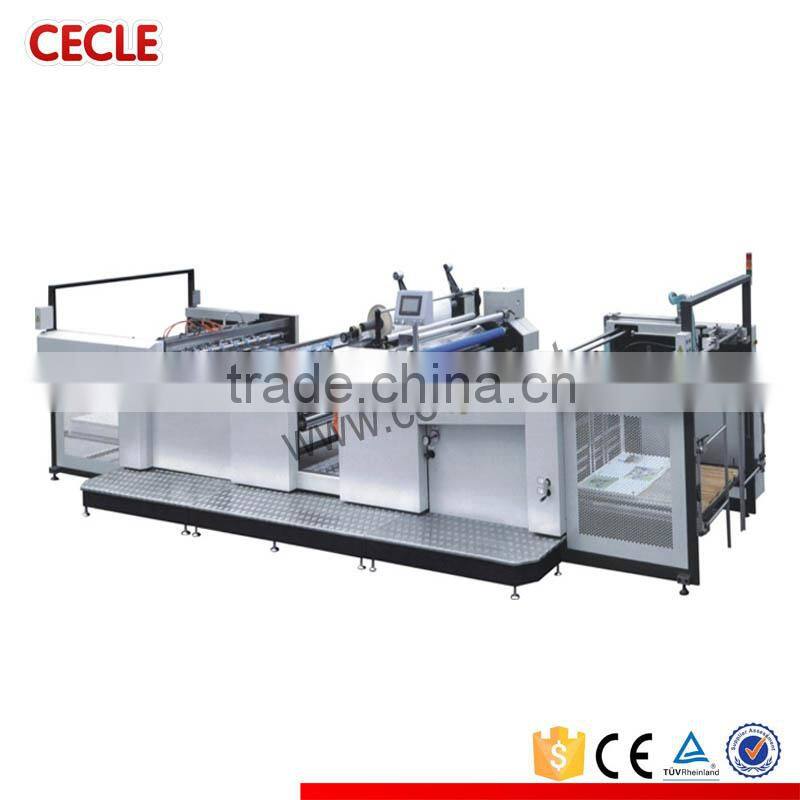

YGFM-1100A Fully Automatic Laminator Machine

YGFM-1100A Fully Automatic Laminator Machine photo-1
US$ 50,100 - 50,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Other, Apparel, Beverage, Chemical, Commodity, Machinery & Hardware
Packaging Type:
Film
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Other, Apparel, Beverage, Chemical, Commodity, Machinery & Hardware
Packaging Type Film
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Manual
Voltage 220V
Power 30kw
Place of Origin Zhejiang, China
Brand Name VINOVO
Model Number YGFM-1100A
Dimension(L*W*H) 9000*2260*1900
Weight 5000kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

                                              YGFM-1100A fully automatic laminator machine





Product Description



YGFM-1100A fully automatic laminator machine

Features

  • Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically. And paper can be added even if the machine is kept running, which improves working efficiency so much.
  • Man-machine interface system: Color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size,overlap length and working speed etc,.the machine can realize completely automated operation. and on touch screen, working status of the machine can be checked at any time.
  • Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. when no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection.
  • Conveying table is furnished with air aspirator and front lay etc. to regulate paper conveying and overlap and improve lamination prevision.
  • High precision of big chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
  • Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.
  • Air expansion shaft releases film, and perfects the precision of film release, and also makes the loading and unloading of film roll much more convenient.
  • The combination of air expansion shaft and braking device can adjust film release tension and release speed.
  • Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the size of workable paper on the touch screen.
  • Collecting unit is furnished with corrugating paper pressing system, which settles completely the crimping trouble of thin and big size of laminated paper.



Applications

  • To suit two kinds of film:pre-glued film and glueless film

 Parameters

model

YGFM-1100A

Max laminating size

1100*1200mm

Min laminating size

300*300mm

Laminating speed

0-50m/min

Laminating Temp.

130℃

Paper weight

100-500g

Motor power

30kw

Total weight

5000kg

Overall dimensions

9000*2260*1900mm

Usage

Laminating Materials

Warranty

1 Year

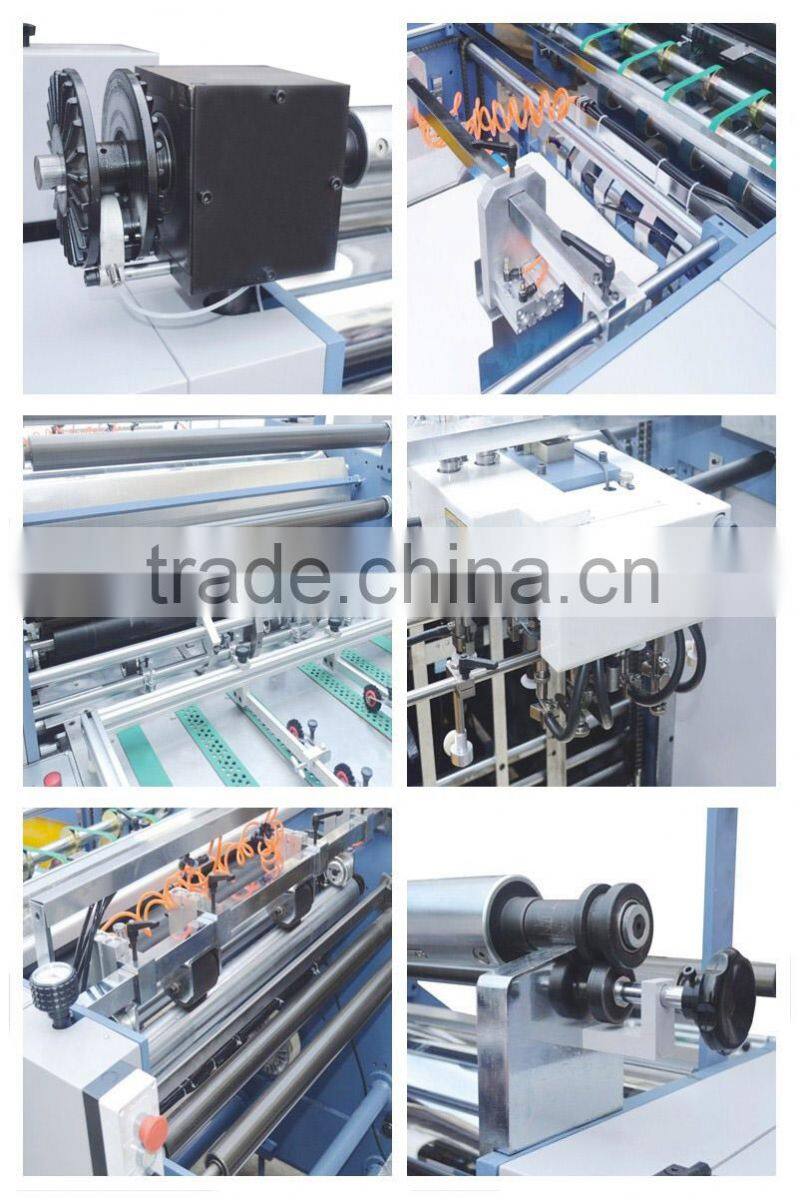

Details



YGFM-1100A fully automatic laminator machine









Certifications

CE CERTIFICATES

YGFM-1100A fully automatic laminator machine

Our Services

Quality guarantee&Service


1. Each machine is manufactured by professional experienced staff.



2. Production process is under strict supervision and adopts China and world toppest production engineering.

3. The warranty time is one year. Quick-wear part is excluded.

4. When warranty date expires, lifetime maintenance service is provided.


5. We also offer PVC, PE films, stamping dies, hot foil papers etc.



Price governs while the quality is the same.



Service governs while the price equals.



T&D MACHINERY promise to offer perfect after-sale service!






Company Information

 1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.

 2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.



 3. We  adhere to the philosophy of quality win and innovation makes success.



 4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.

FAQ

Q: Are you a factory or a trading company?

A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.



Q: Can you send me the video to show how the machine works?

A: Certainly, we have made video of every machine and uploaded them to Youtube.



Q: How can I know your machine works well?

A: Before delivery, we shall test the machine working condition for you.



Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.



Q: How can I pay my order?

A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.



Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.
