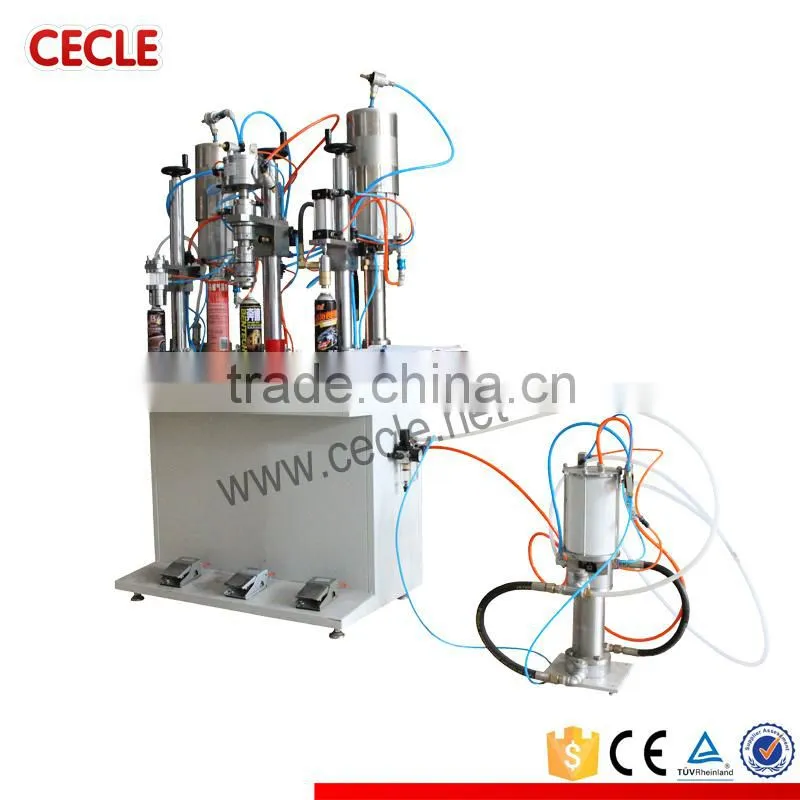

AF3-1600A Aerosol Filling Machine

AF3-1600A Aerosol Filling Machine photo-1
US$ 4,800 - 5,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bottles, Cans
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bottles, Cans
Packaging Material Glass, Plastic
Automatic Grade Semi-Automatic
Driven Type Pneumatic
Voltage 220v
Power none
Place of Origin Zhejiang, China
Brand Name T&D
Model Number AF3-1600A
Dimension(L*W*H) 1000*590*1590mm
Weight 180kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

aerosol filling machine



AF3-1600A

Product Description





Features



  • This machine is applied to filling such mediums as compress air, hydrocarbon mixture .Freon ,DME, Nitrogen,and Carbon Dioxide and so on . It can produce various aerosol products;
  • Filling system newly applied for air compressor equipment, are suitable for dosing filling any kinds of viscosity. No need to configurate a paste filling machine, can save lots of money;
  • It can continuously complete gas blowing, feeding, filling, sealing automatically. With the original technical design, it is easy to operate saving time and effort;
  • German PTFE seals, wearing-resistant, long lifetime up to more than 5 years;
  • Its filling end is controlled separately, no discharging without filling;It is sealing with high quality for adopting oriented-sealing; The way of the oriented inflation in the charging end is accurate and efficient with minimal gas consumption;
  • This machine is in advanced level of the same industry at present. It have been exported to Europe, America, Africa, southeast Asia. It's the best choice to set aerosol factory;





Technical parameters



Filling volume(ml): 20-750ml(specification can be made by request);
Filling accuracy: ≤±1%
Gas volume(ml): 20-450ml
Gas accuracy: ≤±1%
Sealing accuracy: ≤±1%
Working Pressure: 0.65-1.0MPa
Available valve: 1”(25.4mm)
Production capacity: 4000-5000cans/day
Maximum air consumption: 0.8(m3/min)
Applicable aerosol can diameter: 35-65 (mm)
Applicable aerosol can height: 80-350(mm)
Packing dimension and weight:
Filling machine : 1000*590*1590mm 180KG
Booster pump : 500* 450*600mm 38KG





Samples

 AF3-1600A aerosol filling machine





Packaging & Shipping
AF3-1600A aerosol filling machine

Packaging details Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;
Shipping methods 1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, Fedex, UPS etc






Default Shipping Port: Port of Ningbo



AF3-1600A aerosol filling machine





Our Services
Quality guarantee&Service


1. Each machine is manufactured by professional experienced staff.



2. Production process is under strict supervision and adopts China and world toppest production engineering.

3. The warranty time is one year. Quick-wear part is excluded.

4. When warranty date expires, lifetime maintenance service is provided.


5. We can also offer PVC, PE films, BOPP films, stamping dies, hot foil papers etc.



Company Information

AF3-1600A aerosol filling machine




 1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.



 2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.



 3. We  adhere to the philosophy of quality wins and innovation makes success.



 4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.





FAQ

Q: Can you send me the video to show how the machine works?

A: Certainly, we have made video of every machine and uploaded them to Youtube.



Q: How can I know your machine works well?

A: Before delivery, we shall test the machine working condition for you.



Q: How can I know your machine is designed for my product?

A: You can send us samples of your product and we test it on machine.



Q: Do you have a CE certificate?

A: For every model of machine, it has a CE certificate.
