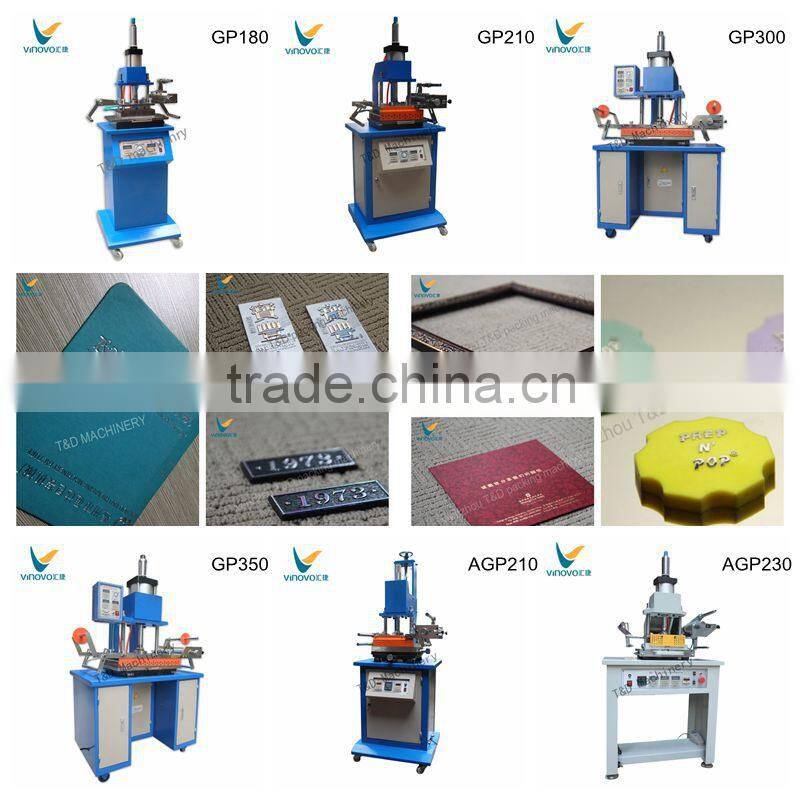

[1] for hot staming flat products (pneumatic)
Specifications
| Model | GP-180 | GP-210 | GP-300 | GP-350 | AGP-210 | AGP-230 |
| Hot stamping size | 180mm*140mm | 210*260mm | 300*400mm | 350*500mm | 210*260mm | 160*230mm |
| Pressure | 0.2T | 0.4T | 0.6T | 1T | 0.4T | 0.4T |
| Speed | 10 times/min | 10 times/min | 10 times/min | 10 times/min | 10 times/min | 10 times/min |
| Weight | 60 | 90 | 200 | 330 | 130 | 90 |
| Voltage | 220v 50~60hz | 220v 50~60hz | 220v 50~60hz | 220v 50~60hz | 220v 50~60hz | 220v 50~60hz |
| Power | 1kw | 2kw | 3kw | 4kw | 2kw | 2kw |
| Air-pressure | 0.6~0.8mpa | 0.6~0.8mpa | 0.6~0.8mpa | 0.6~0.8mpa | 0.6~0.8mpa | 0.6~0.8mpa |
| Dimension | 520*420*1250 | 570*460*1320 | 860*520*1560 | 950*620*1610 | 570*460*1600 | 445*680*1300 |
Features
- Pneumatic drive and need connect to air compressor
- Low pressure suit for small size flat products hot stamping

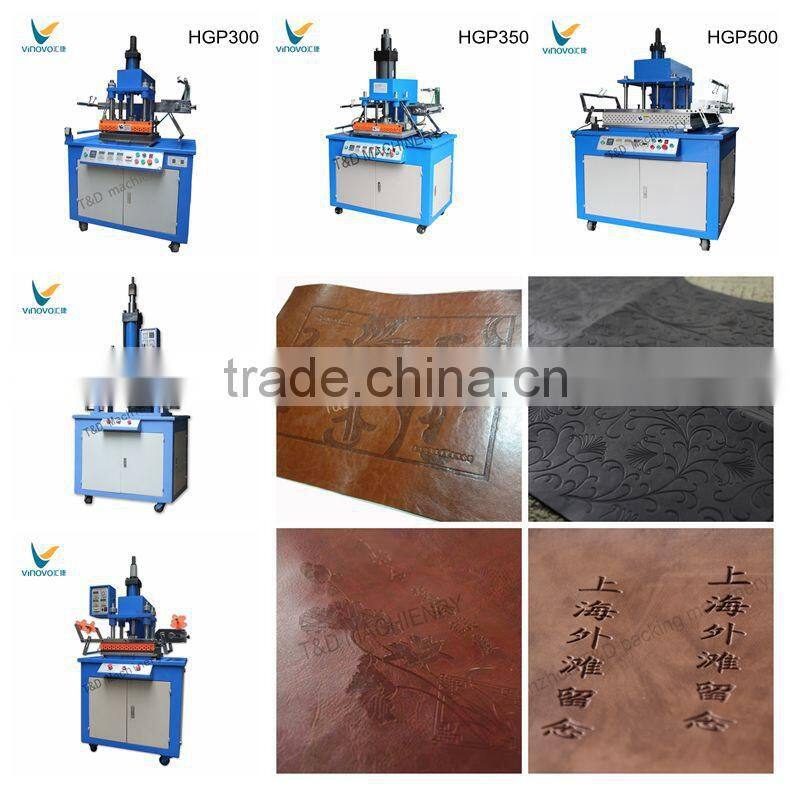

Specifications
| Model | HGP-300 | HGP-350 | HGP-500 |
| Hot stamping size | 300mm*400mm | 350*500mm | 500*700mm |
| Pressure | 3.5T | 15T | 15T |
| Speed | 10 times/min | 10 times/min | 10 times/min |
| Weight | 430kgs | 550kg | 680kg |
| Voltage | 380v 50~60hz | 380v 50~60hz | 380v 50~60hz |
| Power | 5kw | 8kw | 12kw |
| Dimension | 870*710*1640 | 1020*760*1820 | 1100*850*1850 |
Features
- Hydraulic drive and need hydraulic oil
- High pressure suit for large size flat products hot stamping

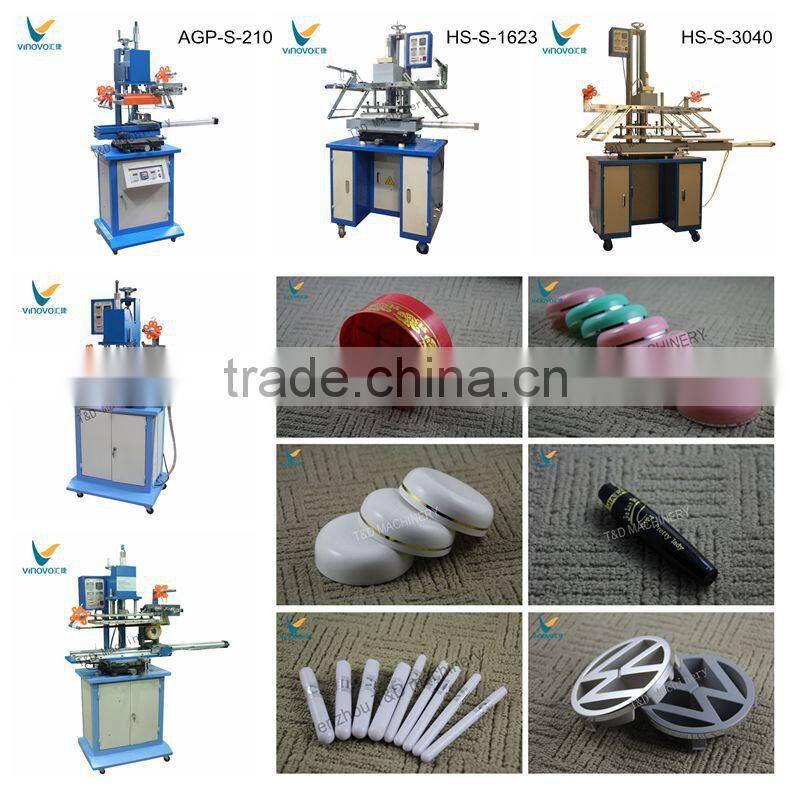

[3] for hot staming flat and circle products
Specifications
Model |
AGP-S-210 |
HS-S-1623 |
HS-S-3040 |
Hot stamping size |
210mm*260mm |
160*230mm |
300*400mm |
Pressure |
0.4 |
0.4T |
0.4T |
Speed |
10 times/min |
10 times/min |
10 times/min |
Weight |
150kg |
300kg |
380kg |
Voltage |
220v 50~60hz |
220v 50~60hz |
220v 50~60hz |
Power |
2kw |
2kw |
3kw |
Dimension |
445*680*1300 |
860*520*1560 |
950*620*1610 |
Features
- Pneumatic drive and need connect to air compressor
- This machine can hot stamping circle and flat products
- The height can be adjusted suit for different height products
- The worktable be fine-tuning for easy locate the hot stamping logo

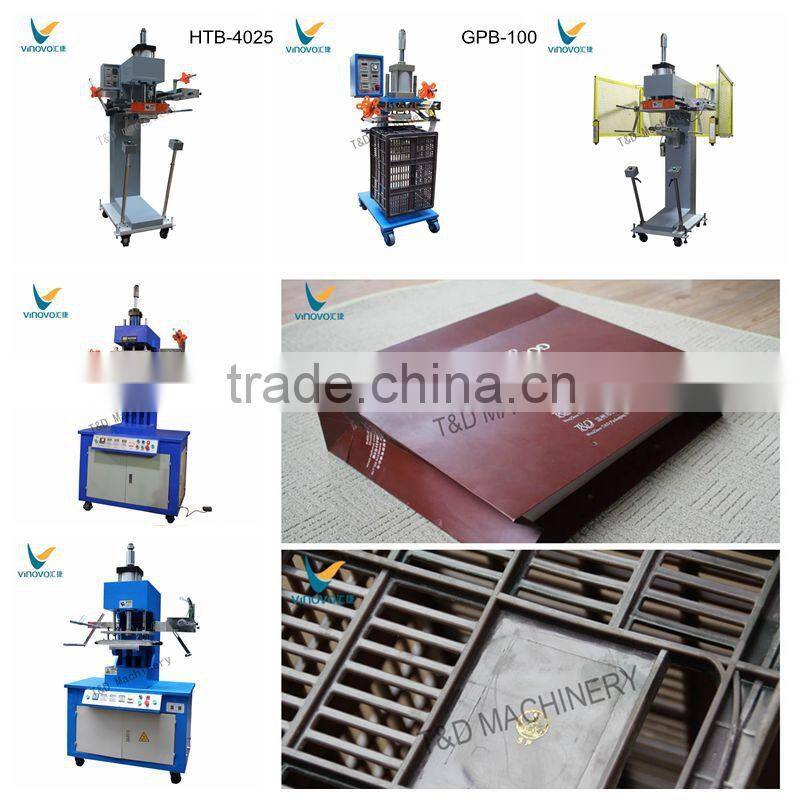

[4] for hot staming shopper or box
Specifications
Model |
HTB-4025 |
GPB-100 |
Hot stamping size |
400mm*250mm |
100*100mm |
Pressure |
1T |
0.4T |
Speed |
10 times/min |
10 times/min |
Weight |
400kg |
100kg |
Voltage |
220v 50~60hz |
220v 50~60hz |
Power |
3kw |
1kw |
Dimension |
950*800*1900 |
570*460*1320 |
Features
- Pneumatic drive and need connect to air compressor
- Special design for hot stamping the shopper and box

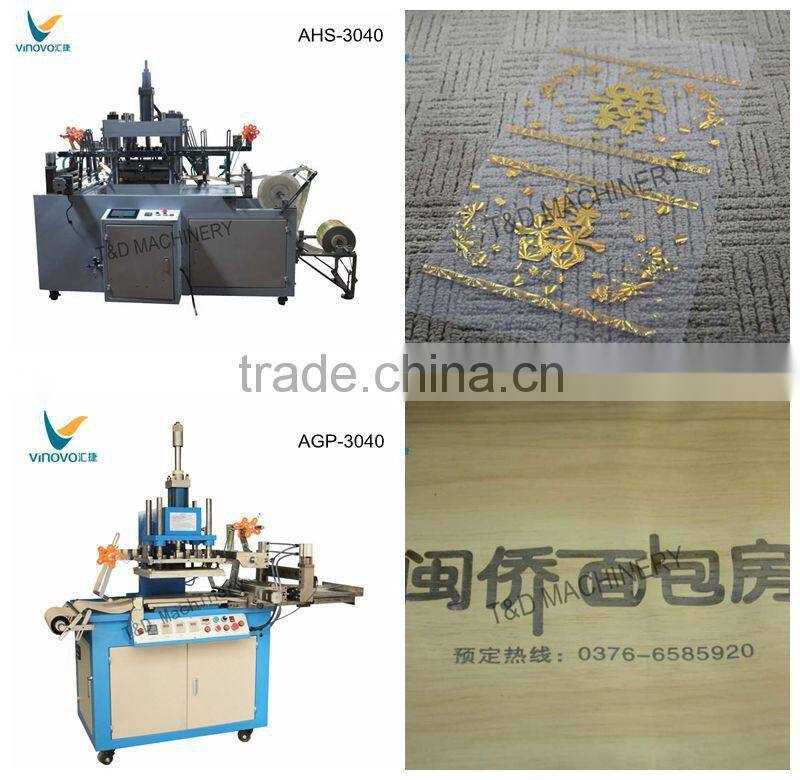

[5] for hot staming roller products and with die cutting function(full automatic)
Specifications
Model |
AHS-3040 |
AGP-3040 |
Hot stamping size |
300mm*400mm |
300*400mm |
Pressure |
8T |
3.5T |
Speed |
30~60 pcs/min |
10~30 pcs/min |
Weight |
700kg |
500kg |
Voltage |
380v 50~60hz |
380v 50~60hz |
Power |
8kw |
7kw |
Dimension |
2800*1200*1800 |
1470*710*1640 |
Photocell |
yes |
no |
Features
- Hydraulic drive and need hydraulic oil
- High pressure suit for large size flat products hot stamping
- Automatic feed the roller products and automatic cut it by same length
- AHS-3040 with photocell function can chromatic printing

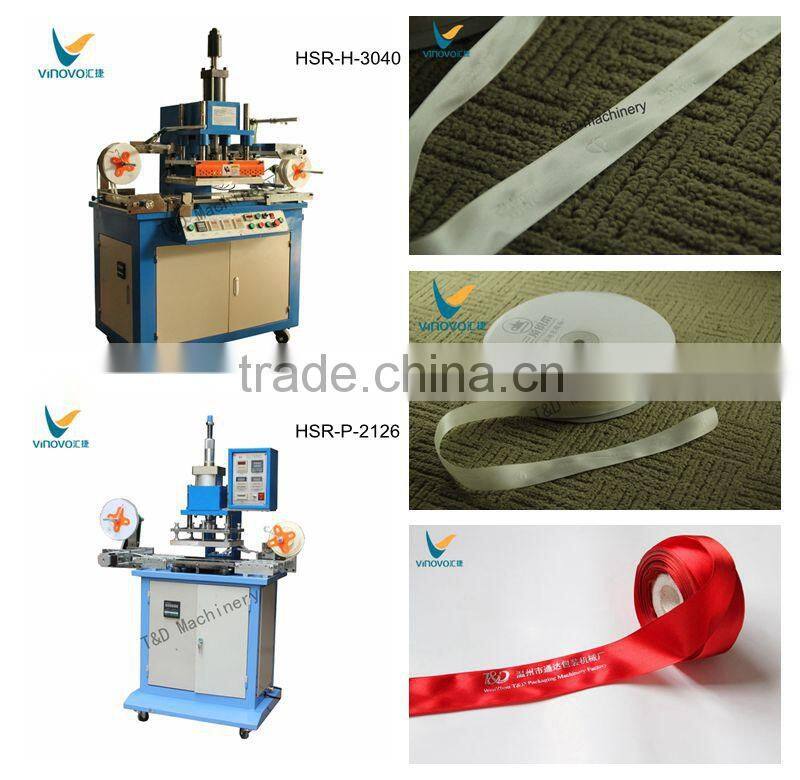

[6] for hot staming ribbon (full automatic)
Specifications
Model |
HSR-H-3040 |
HSR-P-2126 |
Hot stamping size |
300mm*400mm |
210*260mm |
Pressure |
3.5T |
0.4T |
Speed |
30~60 pcs/min |
30~60 pcs/min |
Weight |
500kg |
200kg |
Voltage |
380v 50~60hz |
220v 50~60hz |
Power |
8kw |
2kw |
Dimension |
870*710*1640 |
770*460*1320 |
Drive |
Hydraulic |
Pneumatic |
Roller press per time |
2 |
1 |
Features
- High pressure suit for large size flat products hot stamping
- Automatic feeding the ribbon and the foil

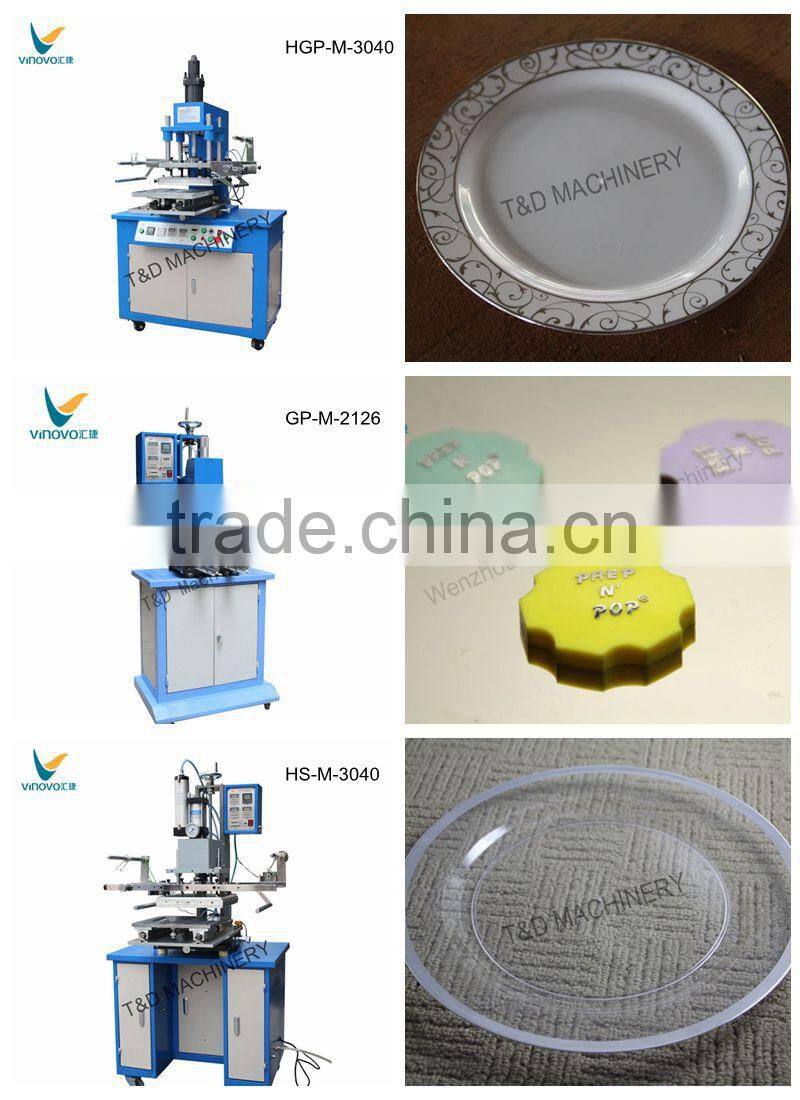

[7] for hot staming with movable platform
Specifications
Model |
HGP-M-3040 |
GP-M-2126 |
HS-M-3040 |
Hot stamping size |
210mm*260mm |
160*230mm |
300*400mm |
Pressure |
3.5 |
0.4T |
3.5T |
Speed |
10 times/min |
10 times/min |
10 times/min |
Weight |
500kg |
130kg |
380kg |
Voltage |
380v 50~60hz |
220v 50~60hz |
220v 50~60hz |
Power |
7kw |
2kw |
3kw |
Dimension |
445*680*1300 |
860*520*1560 |
950*620*1610 |
Drive |
Hydraulic |
Pneumatic |
Air-hydraulic |
Features
- The worktable can automatic move for easily put the products
- Three type drive for hot stamping the products

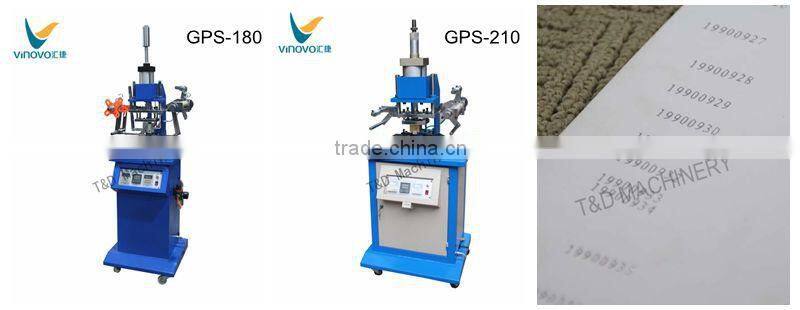

[8] for hot staming serial number
Specifications
Model |
GPS-180 |
GPS-210 |
Serial number |
6~12 |
6~12 |
Pressure |
0.2T |
0.4T |
Speed |
10 times/min |
10 times/min |
Weight |
60kgs |
90 |
Voltage |
220v 50~60hz |
220v 50~60hz |
Power |
1kw |
2kw |
Air-pressure |
0.6~0.8mpa |
0.6~0.8mpa |
Dimension |
520*420*1250 |
570*460*1320 |
Features
- For hot stamping serial number
- Serial number can be customized

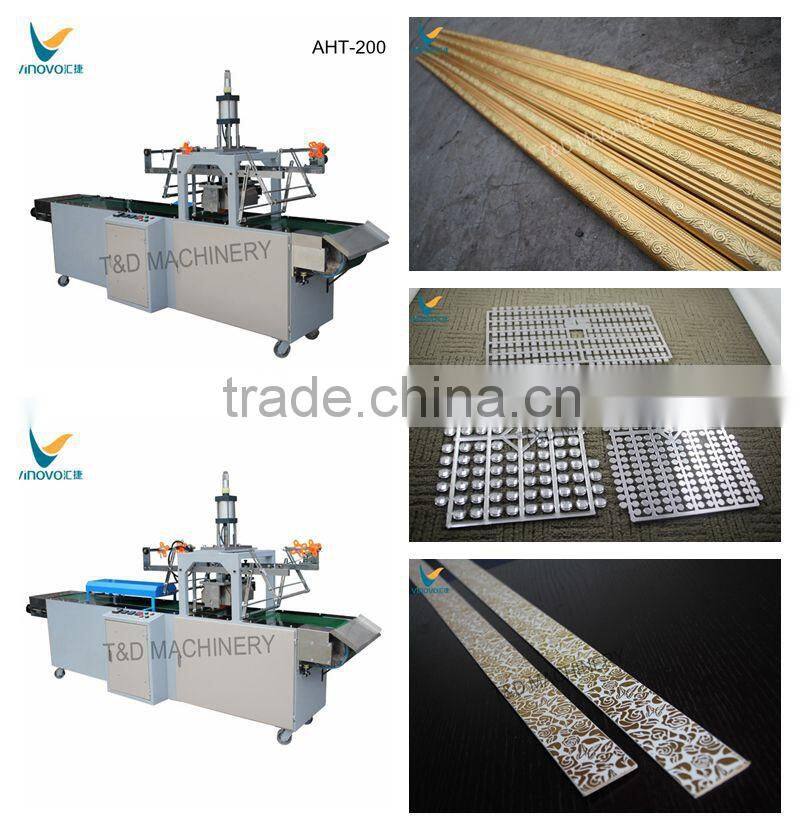

[9] for hot staming acrylic and long flat products
Specifications
Model |
AHT-200 |
Heating width |
200mm |
Pressure |
0.4T |
Speed |
10 times/min |
Weight |
400kgs |
Voltage |
380v 50~60hz |
Power |
4kw |
Air-pressure |
0.6~0.8mpa |
Dimension |
2800*620*1600 |
Features
- Roller hot stamping suit for the flat and long products
- The speed is higher than the normal hot stamping
[10] We customize a variety of the hot stamping machine
- We can customize any type of the hot stamping machine for the different products.
- We are the professional hot stamping machine factory
- We are still developing the new machine for improve the producing efficiency.
| Packaging details | Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety; |
| Shipping methods | 1. Shipping by sea(recommend big product or a lot of goods of the order) |
| 2. By air | |
| 3. By express: TNT, EMS, DHL, Fedex, UPS etc |
Shipping Port: Port of Ningbo
1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.
2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.
3. We adhere to the philosophy of quality wins and innovation makes success.
4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union, Alibaba Trade Assurance payments. For those orders less than 1000USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
