Bronzing Machine

Bronzing Machine thumbnail-1
Bronzing Machine thumbnail-2
Bronzing Machine thumbnail-3
Bronzing Machine thumbnail-4
Bronzing Machine thumbnail-5
Bronzing Machine thumbnail-6
Bronzing Machine photo-1
Bronzing Machine photo-2
Bronzing Machine photo-3
Bronzing Machine photo-4
Bronzing Machine photo-5
Bronzing Machine photo-6
US$ 2,000 - 4,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Flatbed Printer
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Wenzhou T&D Packaging Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Flatbed Printer
Place of Origin Zhejiang, China
Brand Name T&D
Model Number HSB-4025
Usage Card Printer, Cloths Printer, Paper Printer
Automatic Grade Semi-Automatic
Voltage 220v
Gross Power 3kw
Dimensions(L*W*H) 1000mm*800mm*1800mm
Weight 400kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
bronzing machine



Product Description



 [1] for hot staming flat products (pneumatic)

bronzing machine



Specifications



Model GP-180 GP-210 GP-300 GP-350 AGP-210 AGP-230
Hot stamping size 180mm*140mm
210*260mm
300*400mm
350*500mm
210*260mm
160*230mm
Pressure 0.2T 0.4T 0.6T 1T 0.4T 0.4T
Speed 10 times/min 10 times/min 10 times/min 10 times/min 10 times/min 10 times/min
Weight 60 90 200 330 130 90
Voltage 220v 50~60hz 220v 50~60hz 220v 50~60hz 220v 50~60hz 220v 50~60hz 220v 50~60hz
Power 1kw 2kw 3kw 4kw 2kw 2kw
Air-pressure 0.6~0.8mpa 0.6~0.8mpa 0.6~0.8mpa 0.6~0.8mpa 0.6~0.8mpa 0.6~0.8mpa
Dimension 520*420*1250 570*460*1320 860*520*1560 950*620*1610 570*460*1600 445*680*1300








Features

  •    Pneumatic drive and need connect to air compressor
  •    Low pressure suit for small size flat products hot stamping


[2] for hot staming flat products (hydraulic)
bronzing machine



Specifications



Model HGP-300 HGP-350 HGP-500
Hot stamping size 300mm*400mm 350*500mm 500*700mm
Pressure 3.5T 15T 15T
Speed 10 times/min 10 times/min 10 times/min
Weight 430kgs 550kg 680kg
Voltage 380v 50~60hz 380v 50~60hz 380v 50~60hz
Power 5kw 8kw 12kw
Dimension 870*710*1640 1020*760*1820 1100*850*1850





Features



  •   Hydraulic drive and need hydraulic oil
  •   High pressure suit for large size flat products hot stamping



[3] for hot staming flat and circle products

bronzing machine



Specifications



Model

AGP-S-210

HS-S-1623

HS-S-3040

Hot stamping size

210mm*260mm

160*230mm

300*400mm

Pressure

0.4

0.4T

0.4T

Speed

10 times/min

10 times/min

10 times/min

Weight

150kg

300kg

380kg

Voltage

220v 50~60hz

220v 50~60hz

220v 50~60hz

Power

2kw

2kw

3kw

Dimension

445*680*1300

860*520*1560

950*620*1610






Features

  • Pneumatic drive and need connect to air compressor
  • This machine can hot stamping circle and flat products
  • The height can be adjusted suit for different height products
  • The worktable be fine-tuning for easy locate the hot stamping logo



[4] for hot staming shopper or box

bronzing machine





Specifications





Model

HTB-4025

GPB-100

Hot stamping size

400mm*250mm

100*100mm

Pressure

1T

0.4T

Speed

10 times/min

10 times/min

Weight

400kg

100kg

Voltage

220v 50~60hz

220v 50~60hz

Power

3kw

1kw

Dimension

950*800*1900

570*460*1320








Features

  • Pneumatic drive and need connect to air compressor
  • Special design for hot stamping the shopper and box



[5] for hot staming roller products and with die cutting function(full automatic)

bronzing machine





Specifications



Model

AHS-3040

AGP-3040

Hot stamping size

300mm*400mm

300*400mm

Pressure

8T

3.5T

Speed

30~60 pcs/min

10~30 pcs/min

Weight

700kg

500kg

Voltage

380v 50~60hz

380v 50~60hz

Power

8kw

7kw

Dimension

2800*1200*1800

1470*710*1640

Photocell

yes

no




Features

  •  Hydraulic drive and need hydraulic oil
  •  High pressure suit for large size flat products hot stamping
  • Automatic feed the roller products and automatic cut it by same length
  • AHS-3040 with photocell function can chromatic printing



[6] for hot staming ribbon (full automatic)

bronzing machine



Specifications





Model

HSR-H-3040

HSR-P-2126

Hot stamping size

300mm*400mm

210*260mm

Pressure

3.5T

0.4T

Speed

30~60 pcs/min

30~60 pcs/min

Weight

500kg

200kg

Voltage

380v 50~60hz

220v 50~60hz

Power

8kw

2kw

Dimension

870*710*1640

770*460*1320

Drive

Hydraulic

Pneumatic

Roller press per time

2

1






Features

  • High pressure suit for large size flat products hot stamping
  • Automatic feeding the ribbon and the foil

  [7] for hot staming with movable platformbronzing machine



Specifications





Model

HGP-M-3040

GP-M-2126

HS-M-3040

Hot stamping size

210mm*260mm

160*230mm

300*400mm

Pressure

3.5

0.4T

3.5T

Speed

10 times/min

10 times/min

10 times/min

Weight

500kg

130kg

380kg

Voltage

380v 50~60hz

220v 50~60hz

220v 50~60hz

Power

7kw

2kw

3kw

Dimension

445*680*1300

860*520*1560

950*620*1610

Drive

Hydraulic

Pneumatic

Air-hydraulic



Features

  • The worktable can automatic move for easily put the products
  • Three type drive for hot stamping the products



[8] for hot staming serial number

bronzing machine



Specifications



Model

GPS-180

GPS-210

Serial number

6~12

6~12

Pressure

0.2T

0.4T

Speed

10 times/min

10 times/min

Weight

60kgs

90

Voltage

220v 50~60hz

220v 50~60hz

Power

1kw

2kw

Air-pressure

0.6~0.8mpa

0.6~0.8mpa

Dimension

520*420*1250

570*460*1320





























Features

  • For hot stamping serial number
  • Serial number can be customized



[9] for hot staming acrylic and long flat products

bronzing machine



Specifications



Model

AHT-200

Heating width

200mm

Pressure

0.4T

Speed

10 times/min

Weight

400kgs

Voltage

380v 50~60hz

Power

4kw

Air-pressure

0.6~0.8mpa

Dimension

2800*620*1600



























Features

  • Roller hot stamping suit for the flat and long products
  • The speed is higher than the normal hot stamping



[10] We customize a variety of the hot stamping machine

bronzing machine





  • We can customize any type of the hot stamping machine for the different products.
  • We are the professional hot stamping machine factory
  • We are still developing the new machine for improve the producing efficiency

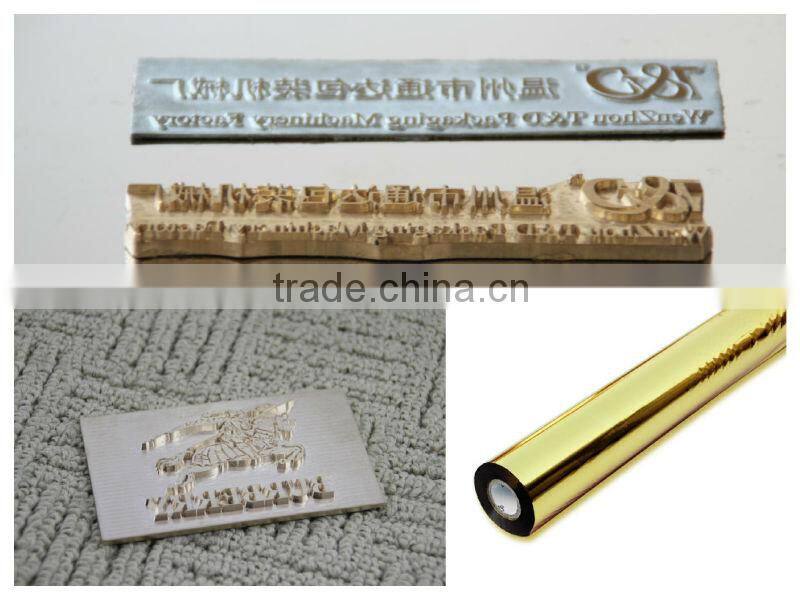

Offer stamping foils and stamping dies

bronzing machine



Packaging & Shipping
bronzing machine

Packaging details Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety;
Shipping methods 1. Shipping by sea(recommend big product or a lot of goods of the order)
2. By air
3. By express: TNT, EMS, DHL, Fedex, UPS etc


Shipping Port: Port of Ningbo

Our Services
Quality guarantee&Service


1. Each machine is manufactured by professional experienced staff.



2. Production process is under strict supervision and adopts China and world toppest production engineering.

3. The warranty time is one year. Quick-wear part is excluded.

4. When warranty date expires, lifetime maintenance service is provided.


5. We can also offer PVC, PE films, BOPP films, stamping dies, hot foil papers etc.
