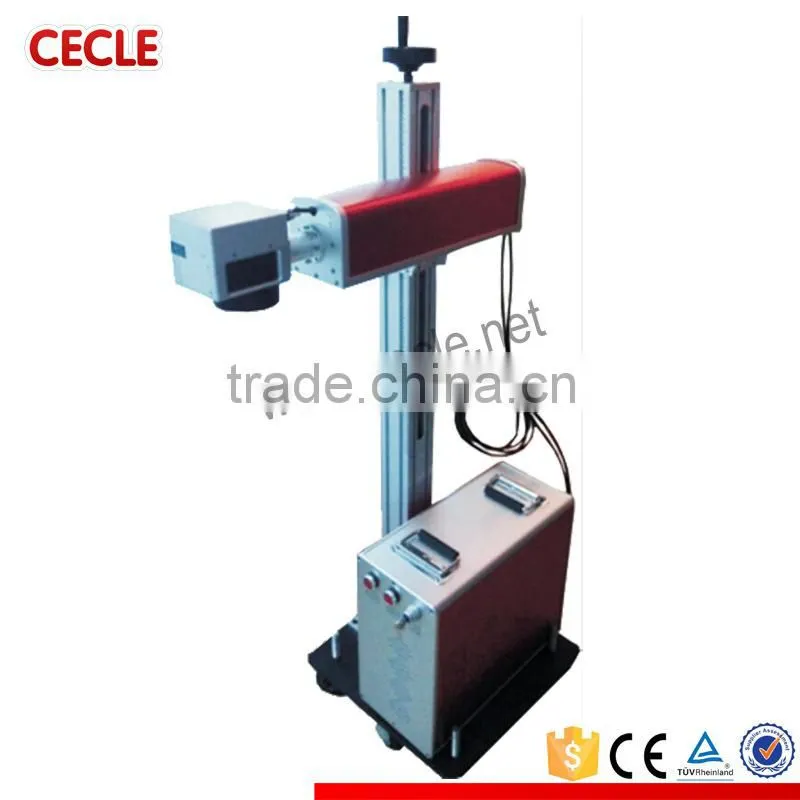

Optical fiber laser marking machine for electronic hardware components
Features
- Excellent beam quality: Machine of this series is a lot better than the traditional marker, condenser diameter is less than 20um /, and the divergence angle is 1/4 of semiconductor pump laser.
- It is suitable for precision and fine marking.
- Low-cost of using: electro-optical conversion rate is high; machine power consumption is less than 500W, which is 1/10 of lamp-pumped laser.
- Maintenance-free operation: the laser does not need any maintenance, adjustment or lens cleaning.
- Long working life: the use of laser diode as the pump source makes the working hours up to 100,000 hours.
- Small size, and suitable for harsh environment: it adopts optic fiber to realize laser transmission, and the structure is compact, which can operate normally under shock and vibration, or some high-temperature and other harsh environment.
- Fast processing speed: it is 2 to 3 times of traditional laser marking machine.
Parameters
Average output power |
20W |
Laser wavelength |
1060nm |
Beam quality |
<2 |
Laser output power |
20KHZ-100KHZ |
Power Supply |
SinglePhaseAC90-260V/50HZ-60HZ
|
Electricity power |
<160W
|
Size |
570mm * 270mm * 200mm |
Total Weight |
<10.5KG
|
Focus spot size |
<0.01mm
|
Marking area |
110mm×110mm / 150mm×150mm |
Engraving speed |
≤7000mm/s |
Engraving depth |
≤0.4mm |
Min line-width |
0.012mm |
Min character |
0.15mm |
Repeated accuracy |
±0.003mm |
Semiconductor module life |
>100,000 hours |
Computer operating system |
Win98/Win2000/XP
|
Cooling method |
Built-in air-cooled
|
Control Interface |
Control Interface |
Part
Sample
| Packaging details | Standard export packing, major products using export plywood case packing, small products use thick carton packing, ensure that the product packaging integrity and safety; |
| Shipping methods | 1. Shipping by sea(recommend big product or a lot of goods of the order) |
| 2. By air | |
| 3. By express: TNT, EMS, DHL, Fedex, UPS etc |
1. Our company was started in 1992, we can offer the most professional packing schemes to guests all over the globe.
2. We cherish every "contact supplier"click and bend ourselves to quick response to guests all over the globe.
3. We adhere to the philosophy of quality wins and innovation makes success.
4. "One-stop" service system: inquiry, details discussing, order, payment, testing machine,packing, delivery, receiving, after-sale services.
1. Each machine is manufactured by professional experienced staff.
5. We can also offer PVC, PE films, BOPP films, stamping dies, hot foil papers etc.
Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine and uploaded them to Youtube.
Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we test it on machine.
Q: How can I pay my order?
A: We accept T/T, Western Union paying methods. For those orders less than 500USD, we accept PayPal to pay.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Your Satisfaction is Our Honor!
