Specifications of pla filament
Our filaments are widely used on different printers,like RepRap, Makerbot, UP etc. , no bubbles, printer smooth, easy to shape.
1.75mm diameter 3D printer PLA filament
1.75mm pla filament
3d plastic filament
3d printing plastic filament
ABS/PLA/PC Plastic Filament is used for 3d printer, offering high accurate printing.
color is optional, such as natural, green,red, black Diameter tolerance is 1.75mm/3.0mm ± 0.1mm is available too.
Working tempreture:
PLA: 160 to 200 degree
ABS: 180 to 220 degree
Production Control
1.Produce process
I . Before produce extruding filament ,we will dry PLA for a enough time (3-5 hours).
II. Mix with colors masterbatch or colors powder, all which .certified with ROHS.
III. tollerance roundness +/-0.05mm, each spool net weight 1kg+/-0.02kg
IV we put all filament spool in shelf, different kind in different shelf, all categories arranged orderly.
2.Productiong quality control
I. we have diameter laser detect kits to control extruding rate on line, when diameter smaller or higher than accept range, the laser detect kits will adjust the extruding rate higher or smaller to make diameter range at acceptable.
II. keep each record filament samples sent to customers, build a tracking able document.
III. when the filament put on shelf longer than half a year, we will dry the filament again.
3.packaging
We put each filament /spool on seal PE bag with desiccant , then smaller carton, then out big box
We also have vacuum heated bag to replace of PE bag, make better avoid moisture.
4.research and developing
we have engineers that specialty in color formulation ,plastic modification, packaging, quality control ,producing control, we can do according to your requirements .
we have colors:
Natural, white, black,red, sky blue, dark blue , florescent green, dark green, florescent yellow, dark yellow ,orange, purple, pink, grey, brown, glow in dark etc
3.Data sheet of 100% PLA filament
|
Our PLA |
ordinary PLA |
Type |
3, A(clear natural),B(toughness translucent color,our technical innovation products),C(opaque color) |
A(clear natural),C(opaque color) |
Processing temperature |
185 deg |
210 deg |
Odor |
No smole, taste like fried corn |
No,smoke,taske like fried corn |
Diameter Variations |
1.68-1.78mm, 2.8-2.95mm |
1.56-1.85mm 2.75-3.1mm |
Roundness |
+/-0.03mm |
+/-0.02~0.05mm |
water absorption |
Very low, no bubbles occur when printing even expose to air for over half a year |
High, much bubbles printing at high temperature after the filament opened from seal packaging and exposed to air for a period( like one month or shorter time) |
Surface gloss |
Normal |
Good |
Toughness |
Type A and C is not good toughness, B is good tough |
Not good toughn
|

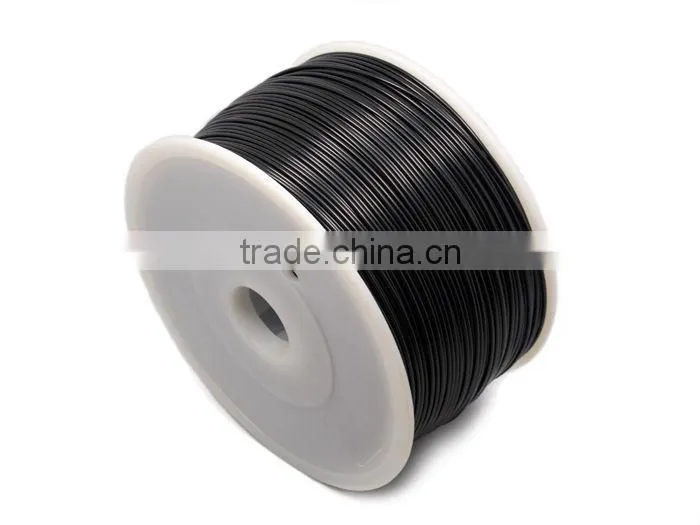

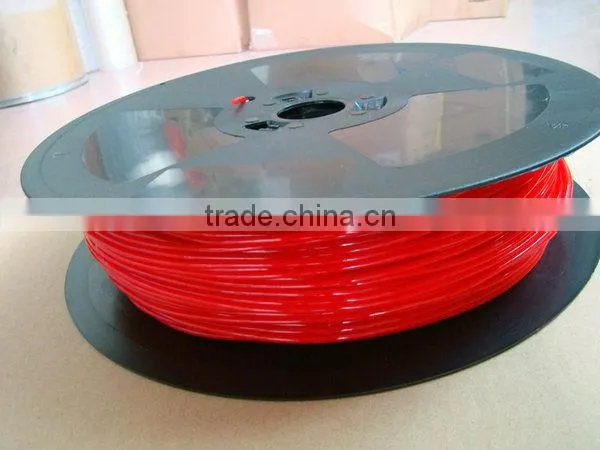

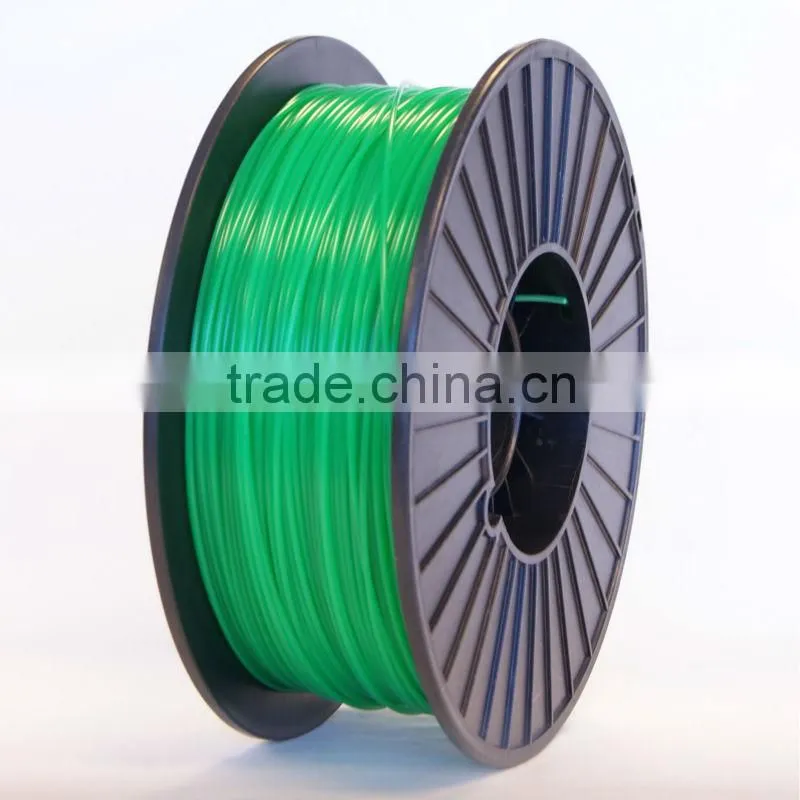

4.Detailed photo of 100% PLA filament, 1.75mm pla filament, 3mm pla filament
5.ABOUT US:
We, Tianjin Glory Tang Technology Co., Ltd, as one subsidiary of GLORYTANG (GROUP), are Chinese professional manufacturer & supplier for PLA fiber & PLA products.
•We have direct source for PLA raw material,
•We have professional R&D team,
•We have senior & experienced engineer in PLA,
•We have our own factory with advanced & unique equipments for PLA,
...
That’s why we can assure you good quality PLA fiber & products with quite competitive prices.
6.Picture of our Facility:
