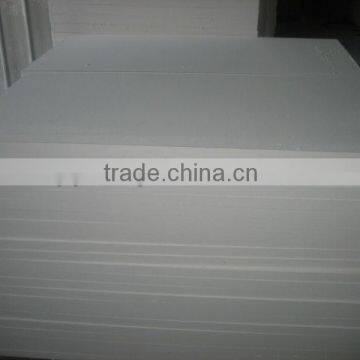

oven insulation Board
It is mixed with Xonotlite and reinforced glass fibre with high service temp.(1050),good heat insulation, low bulk density, high strength, good durability and so on.
Product characteristics:
> good durability, can bear high temperature within the limit of continuous heat load,
> low thermal conductivity, in the whole range are used with unmatched adiabatic performance.
> light weight, high strength. It is the highest in these hard thermal insulation products.
>better durability, use for a long time without powder.
>construction with ordinary carpenter applicability, tools can be optional cut products.
> used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances.
> fear water, but after drying also can be used.
HCS physical performance index
Items |
Unit |
HCS-170 |
HCS-220 |
HCS-270 |
Bulk density |
Kg/m3 |
170±10% |
220±10% |
270±10% |
Pressure strength |
MPa |
≥0.40 |
≥0.50 |
≥0.60 |
Flexural strength |
MPa |
≥0.30 |
≥0.35 |
≥0.40 |
Thermal conductive |
W/m.k |
≤0.048 +0.00011t |
≤0.050 +0.00011t |
≤0.056 +0.00011t |
Temp.limit |
|
1000 |
1050 |
1050 |
Linear shrinkage |
% |
≤1.50 (1000,3hrs) |
≤1.50 (1000,3hrs) |
≤1.50 (1000,3hrs) |
We also supply limit 850 degree products.
Block Sizes and Dimensional Tolerances
Length±3mm |
Width±3mm |
thickness+2mm,1.5mm |
610 |
303,300,150 |
25-140 |
600 |
300 |
25-140 |
400 |
250 |
25-140 |
1000 |
500 |
25-140 |
1200 |
600 |
25-140 |
We also supply special size and type
