Home > Transportation > Trailer > Other Trailers > 3 Axles 60 Tons Low Bed Semi Trailer

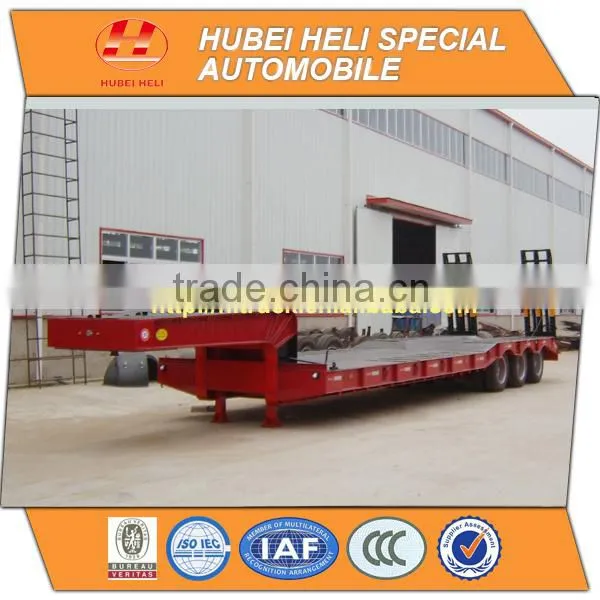

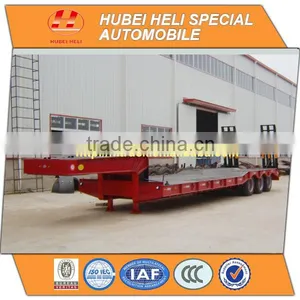

3 Axles 60 Tons Low Bed Semi Trailer

US$ 20,000 - 25,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Max Payload:

60000

Size:

13000,12500x3000x3100,2015

Place of Origin:

Hubei, China

Contact Supplier Request Quote Chat Now

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Max Payload 60000

Size 13000,12500x3000x3100,2015

Place of Origin Hubei, China

Brand Name HLQ

Model Number HLQ9401TDP low bed semi trailer

Product Description

Item		unit	parameter
Product Name		HLQ9401TDP low bed semi trailer
Overall dimensions		mm	13000,12500×3000×3100,2015
	Max loading	kg	60000
	Net weight		10000
	Wheel base	mm	8580+1310+1310,8080+1310+1310
	Front/rear overhang		-/1400
	Approach/departure angle	°	-/16

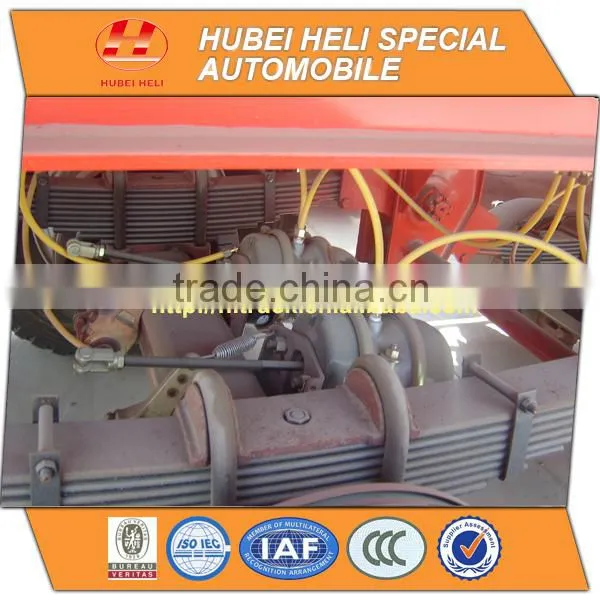

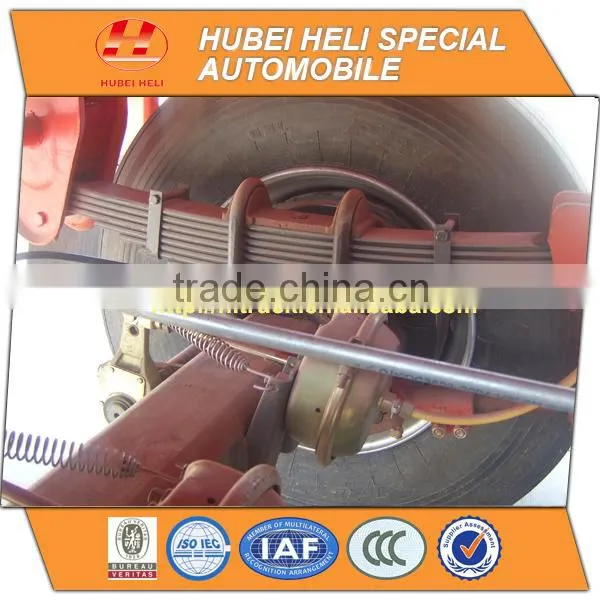

Number of armor plate spring		-/8/8/8,-/10/10/10	axle	13T FW

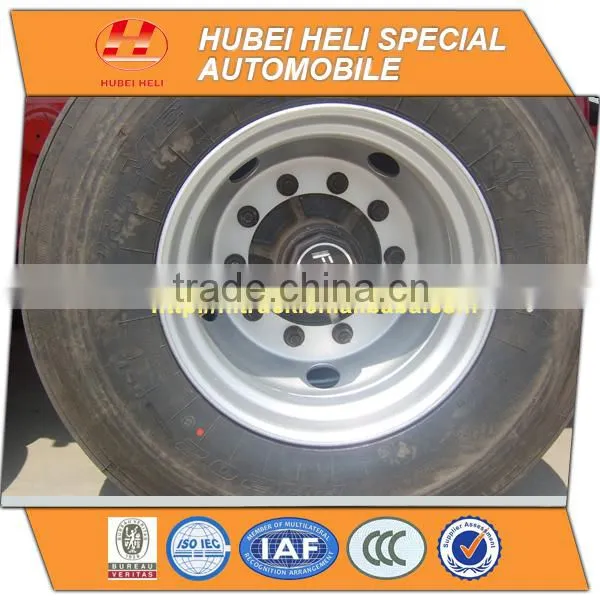

Tire specification		8.25-20 16PR,8.25R20 16PR	Pin traction	90#
F/R wheel base		2180/2180/2180	Outrigger	28T Single-action
Number of axles		3	Braking system	Brake made in China
Standard configuration: 28T single leg, four big gas chambers two small gas chambers, domestic relay valve, 90# traction pin, with ladder Structural characteristics: 520-550mm high beam, upper and lower wing board 20mm, web 10mm, bottom 6mm pattern plate.
Production cycle		10-15 days
Warranty		12 month, from the date of supply
FOB PRICE		USD	DAF/CNF/CIF	USD

Packaging & Shipping

1, attached parts and tools put into standard export box.

2, low bed semi trailer will be cleaned and covered with wax before delivery.

3, low bed semi trailer will be covered by waterproof cloth at the departure port.

4,Roll-on/Roll-off ship or bulk cargo ship is optional according to the customers’ requirements.

5,some small low bed semi trailer can be put into container according to its overall dimensions.

Company Information

Hubei Heli Special Automobile Manufacture Co.,Ltd is a professional low bed semi trailer manufacturer in China. Supply ability of low bed semi trailer is 200 units per month. We have a perfect quality inspection system for low bed semi trailer. welcome to our company to purchase the low bed semi trailer.

FAQ

1, How to purchase the low bed semi trailer from your company?

You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?

Firstly,we passed the international quality system certification. Secondly, Alibaba Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.

3, How to visit your factory?

After you arriving at China, you can fly to Wuhan airport. Wuhan airport is located in Wuhan City, Hubei Province. Our driver will meet you at Wuhan airport and take you to our city by car.
