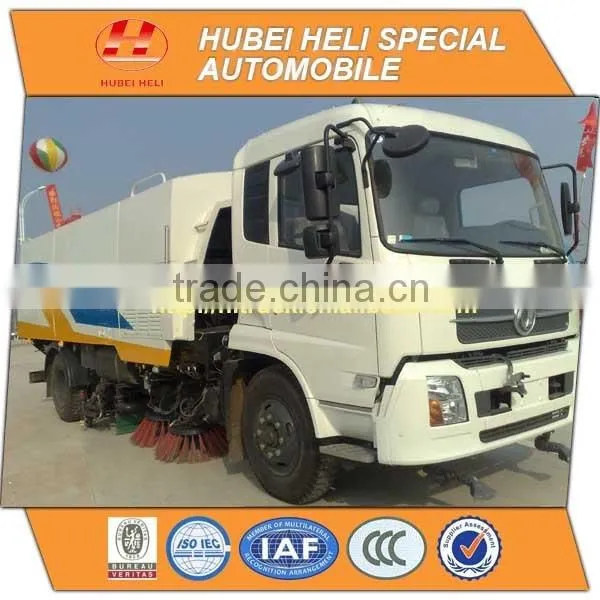

New DONGFENG Tianjin 4x2 HLQ5160TSLD Road Sweeper Truck Good Quality Hot Sale for Sale

Name: New DONGFENG Tianjin 4x2 HLQ5160TSLD Road Sweeper Truck Good Quality Hot Sale for Sale
Brand: DONGFENG
SKU: 123362741

US$ 49,000 - 55,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Transmission Type:

Manual

Emission Standard:

Euro 3

Hubei Heli Special Automobile Manufacture Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Dimensions (L x W x H) (mm) 8090X2470X3050

Gross Vehicle Weight 16000

Place of Origin Hubei, China

Brand Name DONGFENG

Model Number HLQ5160TSLD road sweeper truck

Product Description

Vehicle parameters
Vehicle Model		HLQ5160TSLD	Vehicle Brand	HELI
Overall dimensions		8090X2470X3050mm	Curb weight	9750kg
Dust tank volume		6000L	Water tank volume	4000L
Manufacturer	Hubei Heli Special Automobile Manufacture Co.,Ltd

Chassis parameters
Chassis model			DFL1160BX	Chassis brand	DONGFENG
Overall dimensions			8290x2370x2760mm	Wheel base	4700mm
Front/rear wheel track			1880/1800mm	Front/rear suspension	1430/2160mm
Approach/departure angle			20/13°	Maximum speed	90km/h
Chassis Manufacturer			Dongfeng Motor Company
Cab	Configuration		Tianjin a row and a half deluxe cab(with sleeping berth),,hydraulic mechanical flip,channel type instrument panel,air conditioner,allowable 3 passengers
	Color		white,other color is optional
Engine	Model		B190 33
	Emission		Euro 3
	Type		6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine
	Rated power		190hp,rated power speed 2500rpm
	Displacement		5900ml
	Max.torque		640N·m
	Bore x stroke		102x120mm
	Manufacturer		Dongfeng Cummins Engine Co., Ltd.
Tire	Size		9.00-20 nylon tire
	Number		6+1 nos
Clutch	push type diaphragm spring clutch,Φ395mm
Frame	(250x80x[7+4])mm
Fuel tank	160L,steel
Front axle	3.6T
Rear axle	9.0T main reduction ratio 5.286
Drive form	4X2
Rated voltage	24V,DC
Transmissions	Gearbox DF6S750, 6 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
Selective configuration		Steel wire tire
If there is a slight change in the chassis parameters above,please take the actual product as the standard

Road sweeper structure parameters
Dust tank volume		6000 L	Water tank volume	4000L
Sweep width		3000m	Cleaning speed	3-20km/h
Cleaning ability		9000-60000 m2/h	Cleaning efficiency	98%
Maximum suction particle		120mm	Min. clearance of suction nozzle	200mm
Unloading angle		45°	Unloading height	970mm
			Color and Logo	Optional
Standard configuration	Chassis,sub frame,body,4 sweeping brushes, stainless steel vacuum tank, water tank,5T fan, auxiliary engine, electromagnetic control valve, suction cup, sprinkler system, hydraulic system and electrical system.
Selective configuration	surveillance system,rolling brush.

MOQ,payment terms,delivery terms,price
MOQ	One unit
Payment terms	T/T 30% down payment, 70% balance after inspection before delivery
	L/C is optional
Inspection	Buyer's agent or third party inspection agency,the cost is paid by the buyer
Delivery term	20 days from down payment
Documentation	Maintenance manual
	User manual
	Packing list
	Commercial invoice
	Certificate of origin is optional
	Spare parts list for purchase is optional
Standard tools	With standard tools for chassis and road sweeper structure
Packing	The main vehicle nude and covered with wax, attached parts and tools put into standard export box
Other requirements		Please fill in here
FOB			USD
CNF/CIF			USD	Shipment
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks.
