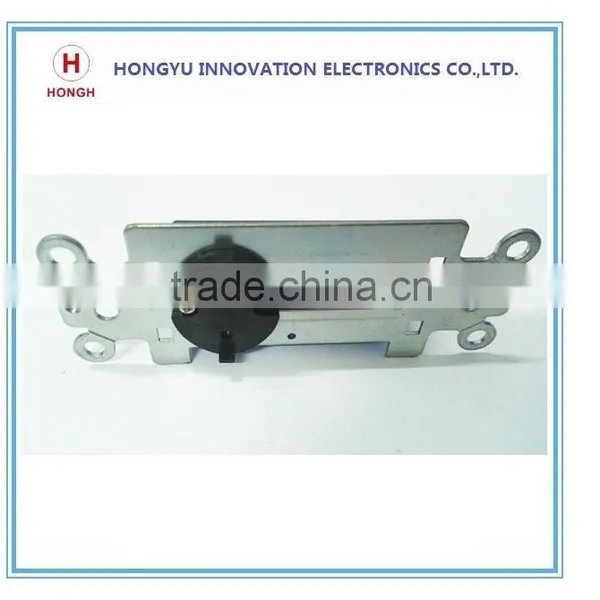

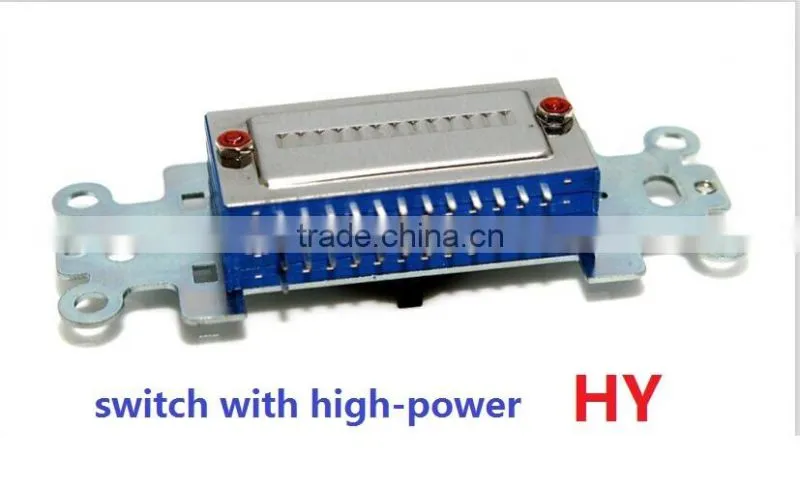

55mm slide body rotary switch rotary switch with four poles

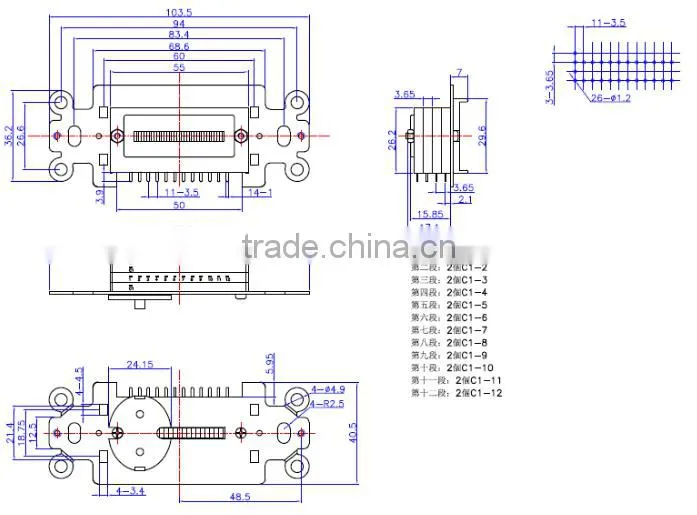

Outline drawing
More specifications
| Operating force: | 1±0.5Kgf.cm |
| Rated power: | DC 30V 0.5A |
| Contact resistance: | 30mΩ MAX |
| Insulation resistance: | DC 500V 100MΩ MIN |
| Withstand voltage: | 500V AC 1Minute |
| Rotational life: | 10,000cycles |
Bright points:
1 ~ 12 optional position Switch
1 ~ 4 pole Switch
PCB terminals
Taiwan quality
Excellently stable contact ability
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation
Testing & packaging
UPS ,DHL, FEDEX are available to transport our cargos.
Self introduction:
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises..

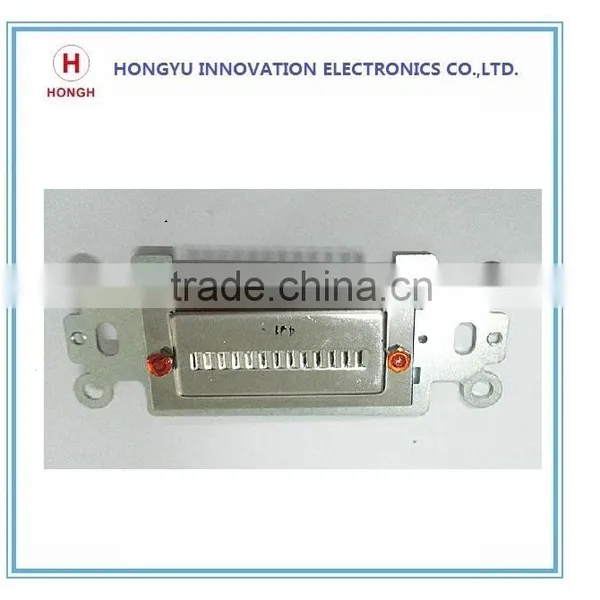

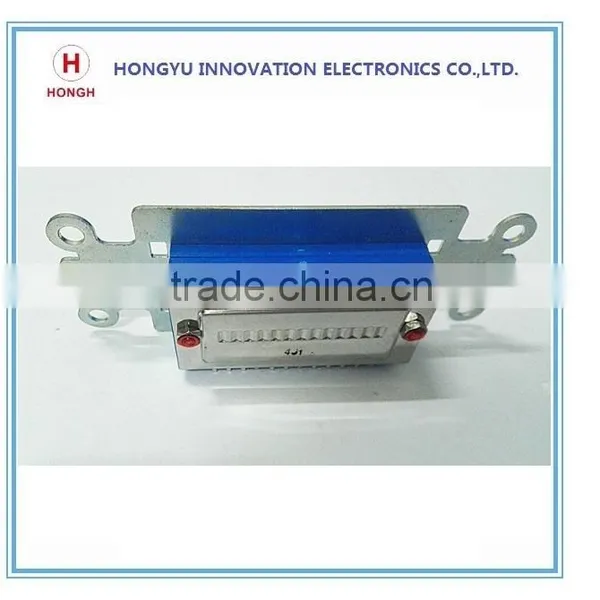

Photos for viewing:
Certificates:
What is the application of this part ?
Hongyu switch is Applied to :washing machine,car audio,sound console,dimmer,volume controller,christmas lights controller,the other instruments. .
How to understand more of Hongyu products ?
Please check with our website of and two dimensional code as below
