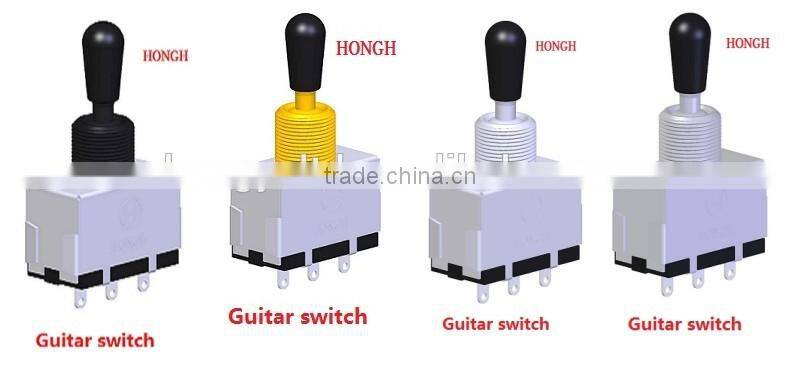

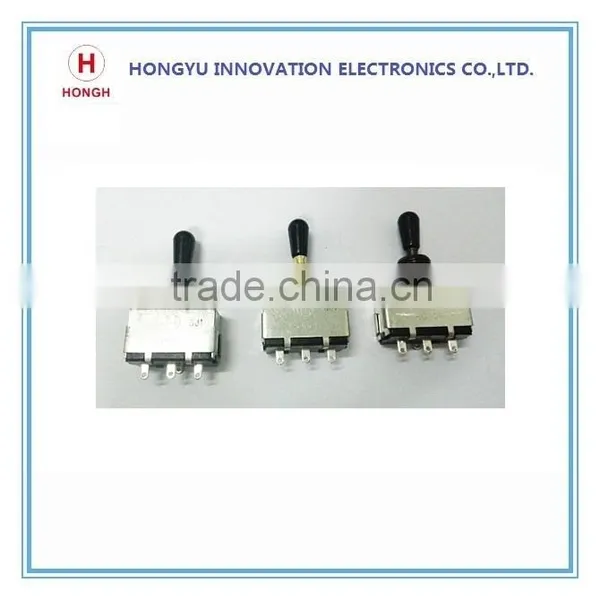

guitar switch control 3 soldering lug switch control
| Electrical characteristics: | |||
| Rating: | 16V DC 0.1A | ||
| Contact resistance: | 200mΩ max. | ||
| Insulation resistance: | D.C 500V 10MΩ min.. | ||
| Withstand voltage: | A.C 500V 1 minut | ||
| Operating force: | 0.5±0.3Kgf.cm(with cap),0.6±0.3Kgf.cm(without cap) | ||
| Operating life: | 10000 times | ||
| Stop strength: | 5kgf.cm | ||
| Bushing & nut tight strength: | 5Kg/cm min.. | ||
|
Taper |
Test point(percent) |
output voltage from terminal 1 ,2 (V1-2) |
output voltage V2-3 |
1-3Input voltage between terminal 1,3 (V1-3 percent) |
input voltage V1-3 percent |
||
A |
50 |
10-25 |
|
B |
50 |
40-60 |
|
C |
*50 |
|
10-25 |
D |
50 |
6-15 |
|
E |
*50 |
|
18-34 |
K |
50 |
18-34 |
|
W |
30 |
5-15 |
|
50 |
40-60 |
|
|
70 |
85-95 |
|
|
RD |
*50 |
|
6-15 |
Features:
1.Low contact impedance under 30 mOhm .
2.Equisite appearance , easy to install .
3.Soft touching feeling ,operate smoothly .
4.High quality, competitive Price ,it is suitable for high-fashion electric guitar
Seriously checking and testing :
ABOUT US:
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises..
Company Photos
Certificates:
Hot sales:
What is the application of this part ?
Applications: Home appliance ,music instrument.
How to understand more of Hongyu products ?
Please check with our website of and two dimensional code as below.
