11mm smd rotary video encoder

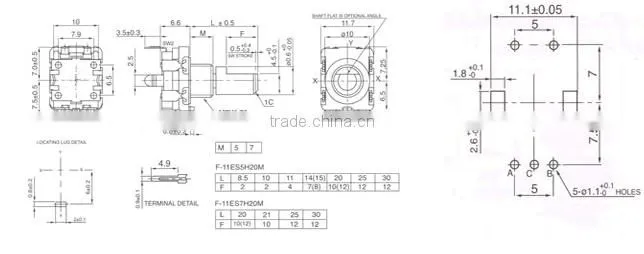

Outline drawing & specifications
| ElECTRICAL CHARACTERISTICS | |
| Rated Voltage: | DC5V 10mA |
| Sliding Nosie(Bounce): | t1,t3≤2ms |
| Sliding Nosie: | t2≤2ms |
| Phase Difference: | T≥0.08T |
| Withstand Voltage: | 1minute at AC 300V/1mA |
| Insulation Resistance: | More than 100MΩ at DC 250V/1mA |
| MECHANICAL CHARACTERISTICS | |
| Total Rotational Angle: | 360°(Endless) |
| Rotational Torque of Detent: | 51~193.8gf.cm |
| Detent torque: | 120±80 gf.cm |
| Number and Position of Detent: | 20 Detents(Step Angle:18°±3°) |
| Push-Pull Strength: | 80N(8.1Kgf)/10S |
| Bushing & Nut Tight Strength: | 1Nm(10.2Kgf.cm)Min |
| DURABILITY | |
| Rotational Life: | 15000 Cycles |
| Switch characteristics: | |
| Switch rated voltage: | DC16V 3A (10mA Min.) |
| Contact resistance: | 100mΩ Max. |
| Insulation resistance: | More than 100MΩ at DC 250V |
| Withstand voltage: | 1minute at AC 300V |
| Travel : | 0.5 +0.4/-0.3 mm |
| Operating force: | 6.0±3N(612±306gf) |
| Endurance characteristics: | |
| Operating life: | 25000 Cycles |
Features:
(1)Base on market’s need ,Hongyu develop precision encoder with switch and coding function .
(2)Hongyu encoder can be used in many fields such as mechanical engineering, the conveyor industry, material handling and the packaging industry.
(3) Taiwan high quality, competitive price ,low minimum order, fastest lead time,continual after-sale service.
Free sample is available !
If you need any parts, please kindly send us your drawings or sample for quotation.
Self introduction:
HongKong HongYu Electronics(technology)Co.,Ltd was established in 1996.With the rapid development of electronic industry in domestic of China ,HongYu Innovation Electronic Co.,Ltd.was set up in Huizhou in 2009.It is specialized in development,manufacture and selling products of potentiometer,encoder,and switch which are widely applied to home application,digital camera,car audio system,sound console desk,musical instrument,computer and other IT prodcuts.Our products are mainly exported to oversea markets ,the main clients are Siemens,Electrolux,A.O Smith, Budweiser and other famous international enterprises..

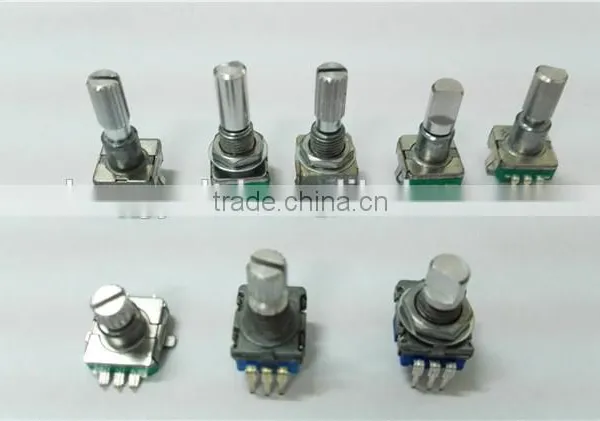

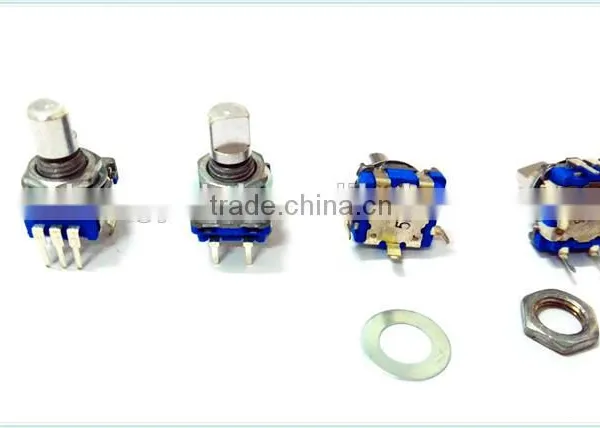

Photos for viewing:
Certificates:
What is the application of this part ?
Hongyu rotary encoder is Applied to :household appliance ,digital camera, sound console,musical instrument,car audio,computer ,IT peripheral products.
How to understand more of Hongyu products ?
Please check with our website of and two dimensional code as below.
