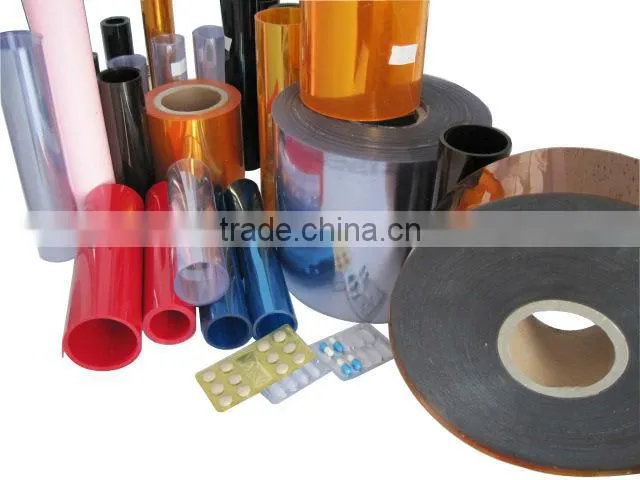

calendered rigid pvc film

Specifications

imported raw material
different color is avaliable
GMP control and ISO certification
jointless quality guarantee

Characteristics

The raw materials of high quality PVC resin is imported from LG, There is no scrapt and recycle content in our product. These can make sure the high quality of our product. Our product have reached the pharmaceutical grade, can be widly used for pharmaceutical blister packing and any other applications which required high level packaging quality.

 PVC sheet materials is a packing material manufactured by Calendering with highly luster, transparent, less air bubble, less flow mark, easily to thermoform, having national registration certificate for pharmaceutical packing material.

Specifications and usages

1. Normal thickness: 0.1mm-0.8mm

2. Normal width: 60mm-1000mm

3. Three grades: pharmaceutical grade, food grade & industrial grade

4. Standard Weight: 20KG/roll. Also can be made according to customers requirements.

5. Type: transparent, translucent and opaque.

6. Color: Can be made according to customers sample or standard PMS, such as red, yellow, green and gold.





Calender pharmaceutical grade PVC rigid film Technical index
Width (mm)			60mm to850 mm
Thickness (mm)			0.10mm to 0.8mm
External appearance			Brightness and transparency
Spectral analysis			Standard
Density   g/sq.cm			1.35≤ρ≤1.45
Tensile Strength (Mpa)			≥44
Falling Impact (%)			≤20
Heating expansion rate (%)			±6
Steam infiltration capacity (g/sq.m·24h)			≤2.5
Oxygen infiltration capacity sq.cm (sq.m·24h·0.1Mpa)			≤30
Thermal sealing strength (N/15mm)			≥7.0
Ba			None
Vinyl chloride monomer			Less than one in a million
Defecation			Standard
readily oxidizable substance			Less than 1.5ml
Heavy Metal			Less than one in a million
Water			Standard
alcohol			Standard
n-hexane			Standard
Bacterium			≤1000/100 sq.cm
Mould and yeast			≤100/100 sq.cm
Escherichia coli			None
