Specifications
PVC rigid sheetMaterial: High standard sanitary PVC resin
Usage: Pharma blister packing
Hardness: Rigid
Brand name:Younker

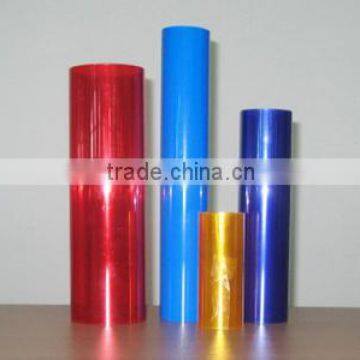

Pharmaceutical Grade PVC Rigid Sheet is a packing material manufactured by calender with the characteristics of high luster, glass clear transparency, and good barrier resistance .The materials has excellent suction plastic formation and good folding self-adhesion performance . The PVC Rigid Sheet is mainly used as visual packing of pharmaceutical tablets and capsules packed by pharmaceutical factory blister machine.
1. Specifications
Thickness range: 0.1mm to 0.8mm
Max width up to 800mm, 20kg/roll,max is 55kg/roll
2. Color Available
Glass clear, Yellow, Red, Amber, Green, Orange, Golden Yellow, Dark & light Blue, White Opaque etc
3. Features
It has the best barrier properties ,Moisture resistance which can extend the storage period of drugs..
4. Usage:
Application For packing capsules, pills, and tablets etc
5. Apperance
The followings such as Perforation, Peculiar smell, obvious damage, bubble, wrinkle, dirt and other defects are not allowed.
6. Dimension
Width:no more than 800mm.
Roll Diameter: 76 mm or your requirement,
And the accurate dimension based on customers' pharmaceutical packing machine.
7. Packing
PVC rigid film in roll is packed at 20KGS net weight per piece or it can be packed according to the requirements of consumers. double PE Inside or export carton outside , foam plugs, 1ton/pallet with stretch film. The storage life of the product is one year.
8. Productive Capacity
Our yearly capacity is 10,000 Metric Tons, Our PVC rigid film is adopting 100% new high standard sanitary PVC resin and produced in the 100,000 level purified workshops.
9. Factory management and environment
Under GMP management, 400 square meters Laboratory and 2,000 square meters work shop which is
100,000 garde purified clean room
10. Shipping Port
Any port in China
11. Shipping Terms
EXW, FOB, CFR, CIF and etc, Just on customers' requirement
12. Payment Terms
T/T 30% prepayment, Confirmed & Irrevocable L/C at sight
13. COA testing for Pharmaceutical PVC Rigid Sheet as follow
CERTIFICATE OF ANALYSIS
| Item | Specification | Test Result | |||
| Appearance | The PVC Sheet Should be transparent uniform. Disallow to have the wrinkledness, greasy dirt, eyewrinker, perforation, impurity, Fisheye's Diameter >1.3mm | Match The Norm | |||
| Size | Width | ≥300±2 | –– | ||
| ≤300±1 | ±0.2 | ||||
| Thickness mm | 0.20-0.40 ≤±0.02 | ±0.01 | |||
| Identify | Infrared spectrum analysis | Should be uniform to the antitheses spectrum | Match The Norm | ||
| Density g/sqcm | 1.35≤p≤1.45 | 1.37 | |||
| Physics | Water Vapor Transmission g/sqm.24h 23°C, RH90% | ≤2.5 | 1.2 | ||
| Oxygen Transmission sqcm/sqm·24h· 0.1Mpa | ≤30 | 19 | |||
| Tensile Strength Mpa | MD ≥44 | 66 | |||
| TD ≥44 | 65 | ||||
| Falling Ball Impact Brittle Rate | TD ≤20 | 0 | |||
| MD ≤20 | 0 | ||||
| Heating Shrinking rate % | ±6 | TD -2 | |||
| MD +2 | |||||
| Heating Sealing Strength N/15mm | ≥7.0 | 8.9 | |||
| The Content of VCM mg/kg | ≤1 | <1 | |||
| Test of Extraction | Degree of Clear | Ought to clear | Clear | ||
| Test of Oxidation | ≤1.5ml | 0.8 | |||
| Heavy Metal mg/kg | ≤1 | <1 | |||
| Non-Volatile | Water mg | ≤30.0 | 3 | ||
| 65% Ethanol mg | ≤30.0 | 3.1 | |||
| Hexane mg | ≤30.0 | 2.3 | |||
| Barium | Ought to clear | Match The Norm | |||
| Microbial Limit Tests | Bacterium | ≤1000/100sqcm | <30 | ||
| Fungus, Saccharomycetes | ≤100/100sqcm | <30 | |||
| Escherichia Coli | Ought to clear | Match The Norm | |||
