SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi

Name: SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi
Brand: Fuyuan
SKU: 123344161
Availability: InStock

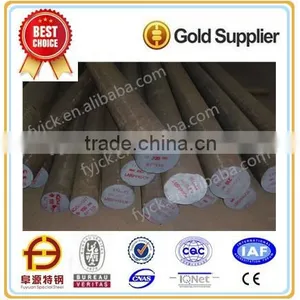

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi thumbnail-1

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi thumbnail-2

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi thumbnail-3

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi thumbnail-4

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi thumbnail-5

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi thumbnail-6

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi photo-1

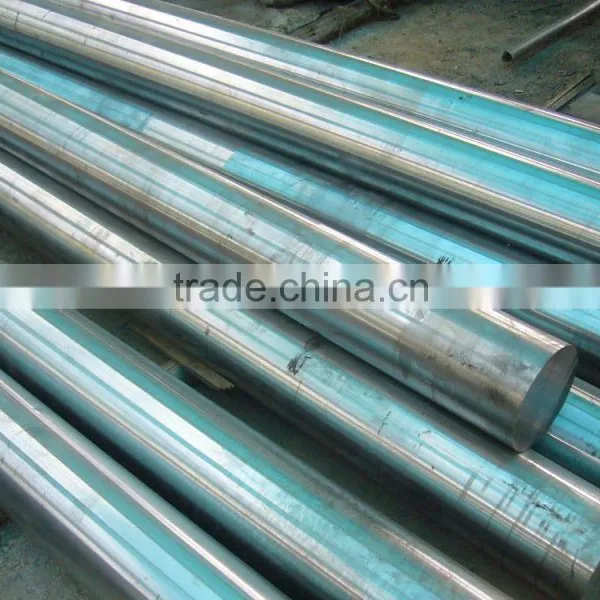

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi photo-2

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi photo-3

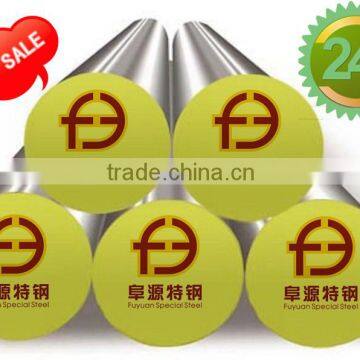

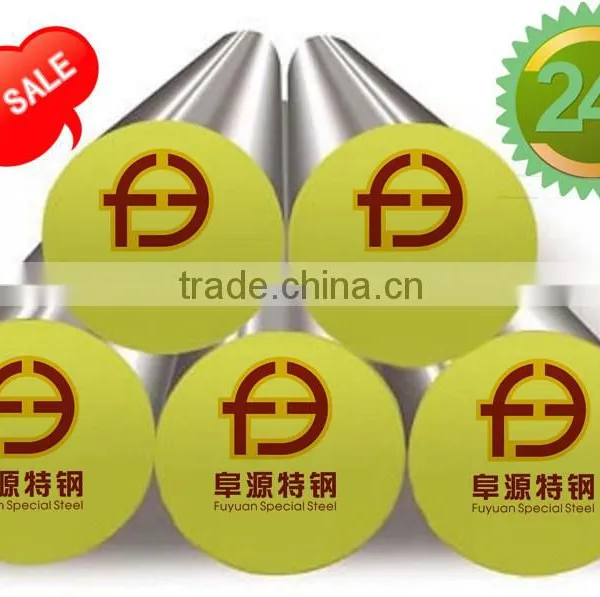

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi photo-4

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi photo-5

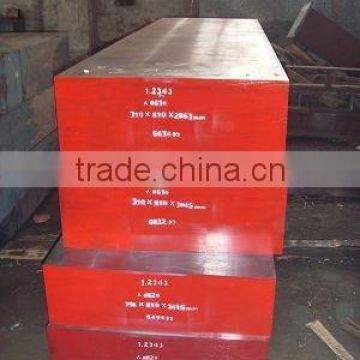

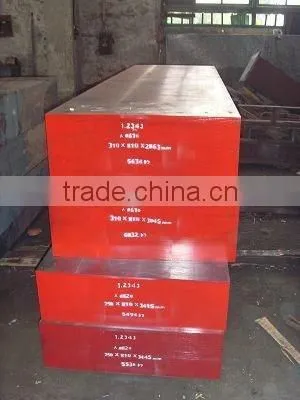

SKD61,1.2344,H13,4Cr5MoSiV1 Alloy Tool Steel From Huangshi photo-6

US$ 1,000 - 10,000 MOQ: 1 Metric Ton

Key Specifications

Get Latest Price

Steel Grade:

Alloy Steel

Standard:

AISI, ASTM, BS, DIN, JIS

Dimensions:

Round50--500mm

Contact Supplier Request Quote Chat Now

Huangshi Fuyuan Import And Export Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai shenzhen zhenjiang ningbo wuhan huangshi

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Steel Grade Alloy Steel

Standard AISI, ASTM, BS, DIN, JIS

Dimensions Round50--500mm

Place of Origin Hubei, China

Brand Name Fuyuan

Model Number SKD61,1.2344, H13, 4Cr5MoSiV1

Technique Other, Forged, Forged or Rolled

Application Tool Steel Bar

Alloy Or Not Is Alloy

Special Use Mold Steel

Type Alloy Steel Bar

Product Introduction

H13 is a chromium, molybdenum, vanadium hot work tool steel which is characterized by high hardenability and excellent toughness. The molybdenum and vanadium act as strengthening agents. The chromium content assists H13 to resist softening when used at high temperatures. H13 offers an excellent combination of shock and abrasion resistance, and possesses good red hardness. It is capable of withstanding rapid cooling and resists premature heat checking. H13 has good machinability, good weldability, good ductility, and can be formed by conventional means.

Specification

*Item*
Size	Round	Dia 12mm-500mm	Length 2000mm-5800mm
	*Flat (when forged, production width is 4 times than thickness)**	Thickness 12mm-400mm
		Width 50mm-800mm
Chemical Composition	AISI H13	C:0.32-0.45, Si:0.80-1.20, Mn:0.20-0.50, Cr:4.75-5.50, Mo:1.10-1.75, V:0.80-1.20, P≤0.030, S:≤0.030
	DIN 1.2344	C:0.37-0.42, Si:0.90-1.20, Mn:0.30-0.50, Cr:4.80-5.50, Mo:1.20-1.50, V:0.90-1.10, P≤0.030, S:≤0.030
	JIS SKD61	C:0.32-0.42, Si:0.80-1.20, Mn:≤0.50, Cr:4.50-5.50, Mo:1.00-1.50, V:0.80-1.20, P≤0.030, S:≤0.030
	4Cr5MoSiV1	C:0.32-0.45, Si:0.80-1.20, Mn:0.20-0.50, Cr:4.75-5.50, Mo:1.10-1.75, V:0.80-1.20, P≤0.030, S:≤0.030
Technique	Rolled or Forged
Process	EAF+LF+VD+ESR+FORGED/ROLLED+Heat Treatment (Annealed,A Normalized, Q+T)
Heat treatment	Normalized ; Annealed ; Quenched ; tempered

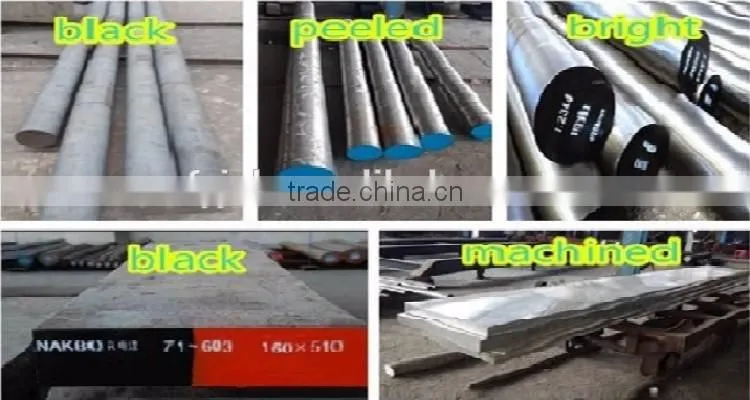

Surface Condition/Treatment	Black surface ; Grinded/Peeled ; Machined;Turned/Bright
Inspection	100% Ultrasonic according to the test standards:SEP1921-84,CLASS C/c or D/d
Payment Terms	T/T;L/C (30% advance payment by T/T, and 70% should be paid against the color scanned copy of BL by T/T or irrevocable L/C at sight)
Trade Terms	FOB;CIF,CFR
Packing	Standard seaworthy packing or as customer required
Shipping Marks	As Buyer/Seller’s option. N/M means no marks.
Invoicing	According to acctural weight (25 tons). If the acctural weight ≥ 25 tons, pls fill less to the seller for the over weight according to the PI price.
Size tolerence	0/+2mm for bright / grinded / machined surface, 0/+4mm for black / peeled surface.
Length tolerence	10% shorter length should be allowed.
Quantity tolerence	-10%/+10% for total quantity.
*Heat Treatment*
Forging	Preheat slowly to 750°C then increase the temperature more rapidly to 1050-1100 °C. Do not forge below 850°C. It is essential to cool the H13 slowly after forging, either in a furnace or in vermiculite
Annealing	Soak thoroughly at 840-860°C before furnace cooling at a maximum rate of 20°C per hour down to 600°C followed by cooling in air.
Stress relieving	When desirable to relieve the strains of machining, heat slowly to 1050°-1250°F, allow to equalize,and then cool in still air (Strain Relieving)
Preheat prior to hardening	Warm slightly before charging into the preheat furnace, which should be operating at 1400°-1500°F.
Hardening	H13 is a steel having very high hardenability and should be hardened by cooling in still air. The use of a salt bath or controlled atmosphere furnace is desirable to minimize decarburization, and if not available, pack hardening in spent pitch coke is suggested. The temperature employed is usually 1800°-1850°F, depending on size section.
Quenching	Quench in still air or dry air blast. If complicated forms are to be hardened, an interrupted oil quench can be used. Quench part in oil and remove from bath when it just loses its color (1000°-1100°F). Finish cooling to below 150°-125°F in air, then temper immediately.
Tempering	Tempering practice may vary with size and application, but is usually performed in the range of maximum secondary hardness or higher. Double tempering is recommended. The results below is H13 that was air quenched from 1800°F and tempered for 4 hours at various temperatures.The results may be used as a guide, keeping in mind that parts of heavy section or mass may be several points lower in hardness.
Applications	Typical applications for are forging dies, forging die inserts, hot gripper dies, hot nut tools, hot header dies, brass forging and pressing dies, aluminum base dies, aluminum casting and extrusion dies, zinc die casting dies, extrusion mandrels, plastic molds, cores, die holder blocks, hot press dies, hot work punches, etc.

Product Details Show

Why Choose Us

About us

1, the company professional to produce and RD more than 100 kinds and 1000 sizes of die / mould / tool steel products more than 10 years;Rich technology strength & strong processing strength & advanced production equipment & complete test instrument & rigor quality management.

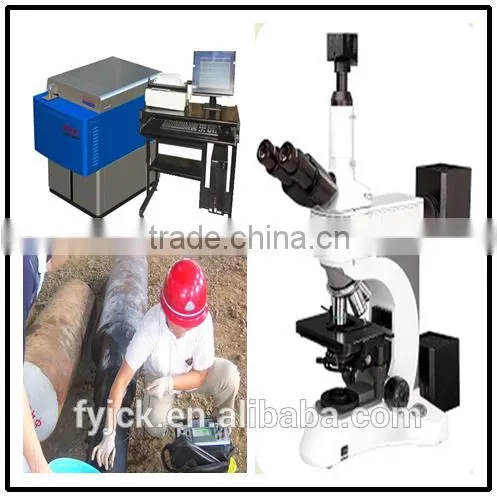

Quality control

2, Acceptable materials; UT test; After annealing ,steels are held for a suitable time in sands and cooling slowly; Machining; Tolerance control; Strictly testing; Certification: Mill Certificate Test or third party inspection institution.

Service

3, Sample free provided from inventory; MOQ is 1 metric ton; Reliable quality; Competitive price; In seaworthy packing; Excellente service; Reply within 24 hours.

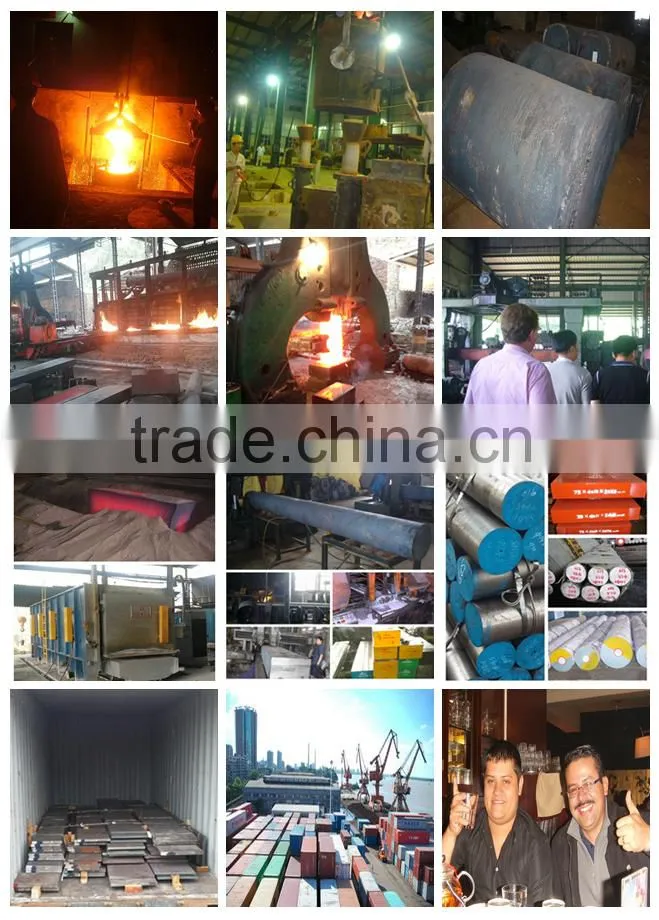

Product Processing
