2014 New Desgin Hot Sale Work Bench

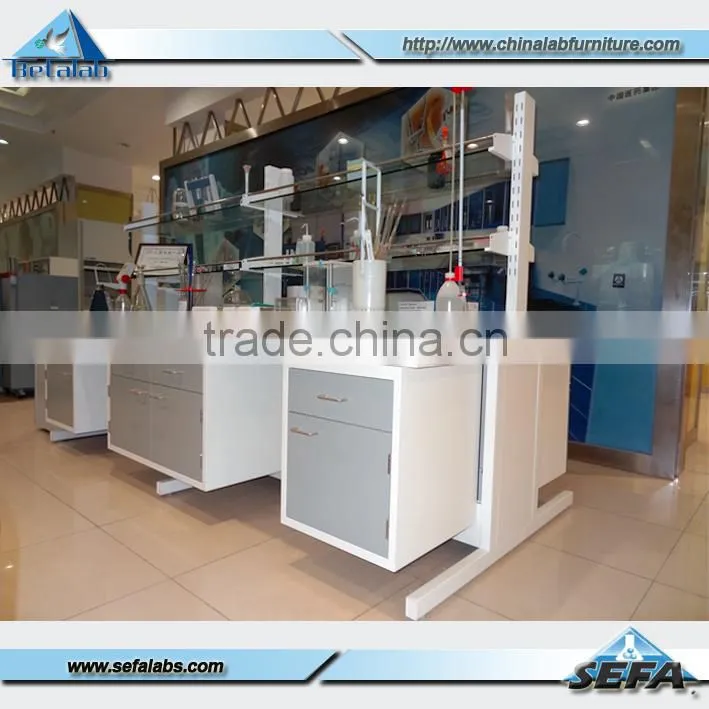

1.PRODUCT OF C FRAME FULL STEEL WORK BENCH
2.SPECIFICATIONS
Product Name |
|
Structure |
C-Frame ALL-Steel Workstation Steel framework, Fashion style with simple installation and flexible budget |
Custom-made |
Dimension |
Color | |
Worktop |
1)15 mm/19mm/20mm thickness EPOXY, Black Color 3)304 STAINLESS STEEL cover with 25mm thickness MDF or Particle board core 4)19mm thickness WILSONART CHEMSURF/ Wilsonart Physurf/ Protector 5)19mm thickness Formica Chemtop 6)WORK TOP: 20mm thickness of Laboratory Ceramics whose surface highly resistant to chemicals and well-suited for laboratories using very aggressive products. This is an extremely hard material resistant to scratches and resistant to high temperatures. The color: Black Advantage of the 20mm thickness Laboratory Ceramic Work Top: a: Chemical resistant b: Be able to resist instant temperature 1200°C and there is no affect when temperature is up to 160 °C. 7) 30mm thickness Marble, Black Color |
C-Frame Steel |
Frame work shall be made of appropriate sections as given below made of cold rolled mild steel of thickness 1.5mm minimum which shall be sandblasted and Epoxy powder coated. Framework shall be designed for safe loading of worktops of up to 200 kilogram per square meter and to keep service space between wall and under bench units. Frames shall be connected to each other by means of a front runner of at least 2mm thick size 60x40mm. Frame shall be of rectangular box with a wall thickness of 3mm and at least of following dimensions.
Vertical member of minimum 60x40mm Horizontal top member 60x40mm Horizontal bottom member 60x40mm Other frame sizes will be subject to approval.
|
Cabinet |
General Requirements: laboratory environment. Cold Rolled Steel: at the mill to be free of scale, ragged edges, deep scratches or other injurious effects. Hinges: type with a fiveknuckle bullettype barrel. Welding of hinges to door or case will not be accepted. Doors under 36" in height shall be hung on one pair of hinges.
Positive Catch: be positioned near the pivoting edge of door to provide a clean unobstructed opening. Elbow Catches: and are to be burnished cast aluminum, with bright brass finish. Shelf Adjustment Clips: Leg Shoes: shall be a pliable, black vinyl material. |
Reagent Shelf |
Modules Column of Reagent shelf is made of Cold-Rolled Steel bar which is 100*40mm *2mm and Treatments of Modules Column steel profile surface is the same as that of C-Frame Supporting Frame. Option: 12mm thick reinforced glass |
Electrical Trunking System |
The electrical trunking system shall be from the manufacturers or approved complying with requirements of BS4678 and IEE wiring regulations. |
3.MORE CHOICE
Different kinds of structure and material for choices,as follows:
1. Floor Mounted Full Steel Workstation Laboratory Furniture
2. Floor Mounted Full Wood Workstation Laboratory Furniture
3. C-Frame Steel-Wood Workstation Laboratory Furniture
4. C-Frame All Steel Workstation Laboratory Furniture
5. H-Frame Steel-Wood Workstation Laboratory Furniture
6. H-Frame All Steel Workstation Laboratory Furniture
7. Stainless Steel Workstation Laboratory Furniture
4.MAIN BUSINESS LINES
Main Business Lines:
A.Laboratory Planning, Designing, Production, Integration, Installation, Consultation & Project Management.
B.Lab Furniture Designing, Development, Manufacturing, Installation. Commissioning & Service.
C.CAV/Two-State/VAV UBC Laboratory Air Flow Control System.
D.Laboratory Furniture, Fume Hood, Enclosure & Ventilation Product
E.Laboratory Specialty Gas Pipe and Gas System
F.Comprehensive Supply of Lab Accessories.
5.ORDERING PROCESS
7.MANUFACTURE&PACKAGE
8.CONTACT
| Telephone: | 0086-757-8778-1160/87781161 |
| Fax: | 0086-757-8778-1160 |
| Factory Address: | No. 968 Pengqing Road Huaqiao Town, Kunshan |
| Foshan Branch: | Room 1003, Business Blg. Garden Hotel, No. 39 Guanghai Avenue, Xinan Town, Sanshui District, Foshan City, Guangdong Province, PRC |
| Zip: | 200000 |
| Country/Region: | China (Mainland) |
