Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Round Bar > Alloy Steel Tool Steel Plastic Mould Steel NAK80

Alloy Steel Tool Steel Plastic Mould Steel NAK80

Name: Alloy Steel Tool Steel Plastic Mould Steel NAK80
Brand: Fuyuan
SKU: 123343517
Availability: InStock

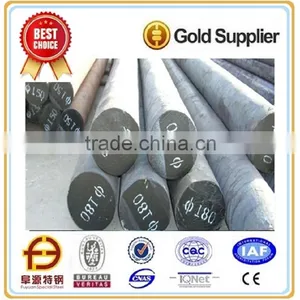

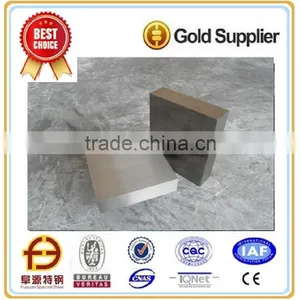

Alloy Steel Tool Steel Plastic Mould Steel NAK80 thumbnail-1

Alloy Steel Tool Steel Plastic Mould Steel NAK80 thumbnail-2

Alloy Steel Tool Steel Plastic Mould Steel NAK80 thumbnail-3

Alloy Steel Tool Steel Plastic Mould Steel NAK80 thumbnail-4

Alloy Steel Tool Steel Plastic Mould Steel NAK80 thumbnail-5

Alloy Steel Tool Steel Plastic Mould Steel NAK80 thumbnail-6

Alloy Steel Tool Steel Plastic Mould Steel NAK80 photo-1

Alloy Steel Tool Steel Plastic Mould Steel NAK80 photo-2

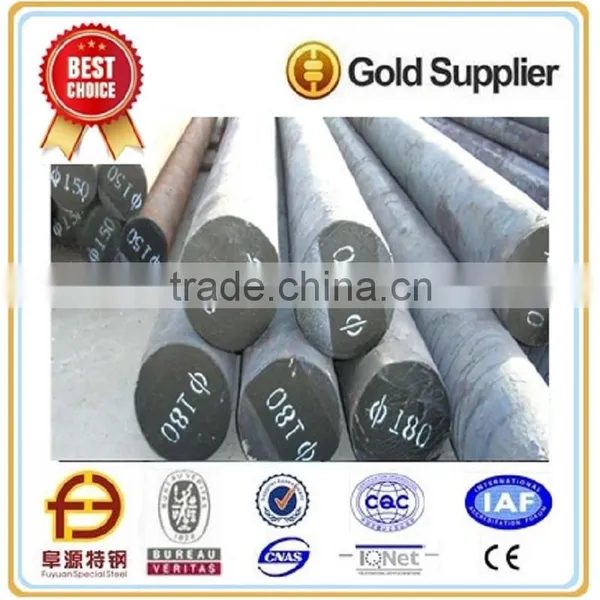

Alloy Steel Tool Steel Plastic Mould Steel NAK80 photo-3

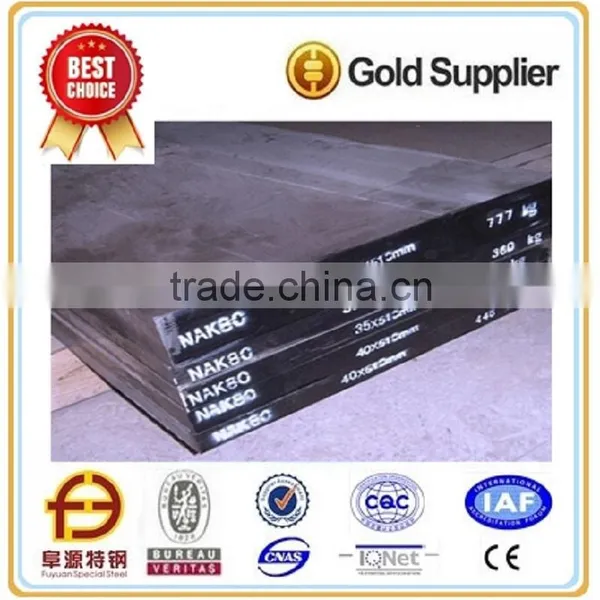

Alloy Steel Tool Steel Plastic Mould Steel NAK80 photo-4

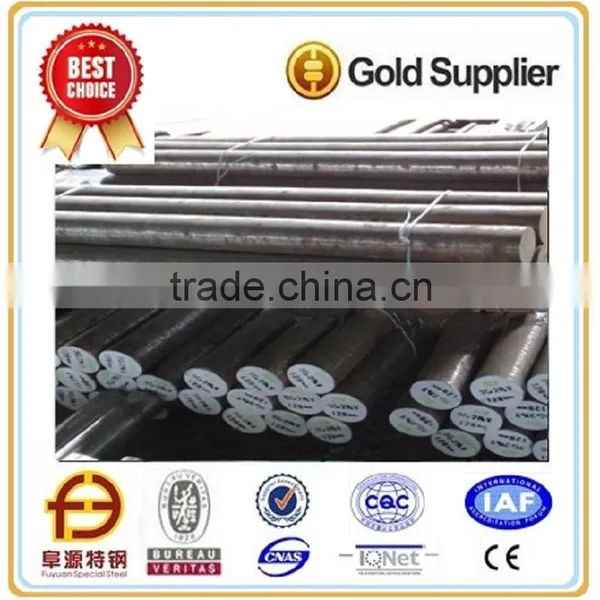

Alloy Steel Tool Steel Plastic Mould Steel NAK80 photo-5

Alloy Steel Tool Steel Plastic Mould Steel NAK80 photo-6

US$ 1,500 - 2,500 MOQ: 1 Metric Ton

Key Specifications

Get Latest Price

Steel Grade:

Alloy Steel

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Dimensions:

Round12--500mm, Flat 12mm-400mm (Thickness) x 50-800mm (Width)

Contact Supplier Request Quote Chat Now

Huangshi Fuyuan Import And Export Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai shenzhen zhenjiang ningbo wuhan huangshi

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Steel Grade Alloy Steel

Standard AISI, ASTM, BS, DIN, GB, JIS

Dimensions Round12--500mm, Flat 12mm-400mm (Thickness) x 50-800mm (Width)

Place of Origin Hubei, China

Brand Name Fuyuan

Model Number NAK80, PM50, GK2003, P21 (Optimized steel), HAbI-70, 10Ni3MnCuAl

Technique Other, Forged, Forged or Rolled

Application Tool Steel Bar

Alloy Or Not Is Alloy

Special Use Mold Steel

Type Alloy Steel Bar

Product Introduction

DAIDO NAK80 is 40 HRC pre-hardened, high performance, high precision, mold steel. Equivalent grades: DIADO NAK80,

HITACHI HPM50,EVERGCREEN GK2003,ASTM P21 (Optimized steel),HJ HAbI-70,GB 10Ni3MnCuAl

Features:
• Machines up to 20% faster than 30 HRC P20
• Hardening up to 37-43HRC can be inscribed and used in the original mould of processing,heat treatment is not needed.
• Uniform microstructure & hardness (40 HRC between surface & interior)

• After Ni-Al-Cu age-hardening steel discharge, the grinding processing is easy.

• Good weld ability, HAZ gets softer not harder (re-age harden to bring back to 40 HRC), can be used to maintain high-precision,the hardness of the surface and central is uniform.

• Never need stress relieving, even after heavy machining
• EDM layer is easy to remove

• Special melting Excellent precision of grinding,satisfactory brightness,good process ability of corrosion took,detailed surface discharge, fine flat pretty machined surface.

• Corrosion Steel.

Specification

*Item*
Size (mm) (can be customized)	Round	Dia 12-500	Length 1000-6000, Straightness: 3mm/M max
	Flat	Thickness 12-400
		Width 50-800
Chemical Composition (can be customized)	DIADO NAK80	C:0.15,Si:0.30,Ni:3.00,Mn:1.50,Mo:0.30,Cu:1.00,Al:1.00,Cr:0.30
	ASTM P21	C:0.18-0.22, Si:0.20-0.40, Ni:3.90-4.25, Mn:0.20-0.40, V:0.15-0.25, Cr:0.30-0.50, P≤0.030, S≤0.030, w(Al):1.05-1.25
	10Ni3MnCuAl	C:0.06-0.16, Si:≤0.40, Mn:1.40-1.70, Al:0.70-1.20, Mo:0.20-0.50, Ni:2.70-3.30, Cu:0.80-1.20, P≤0.020, S≤0.020

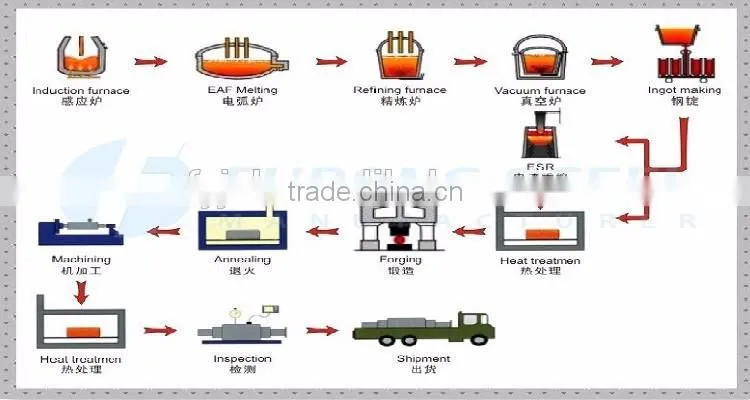

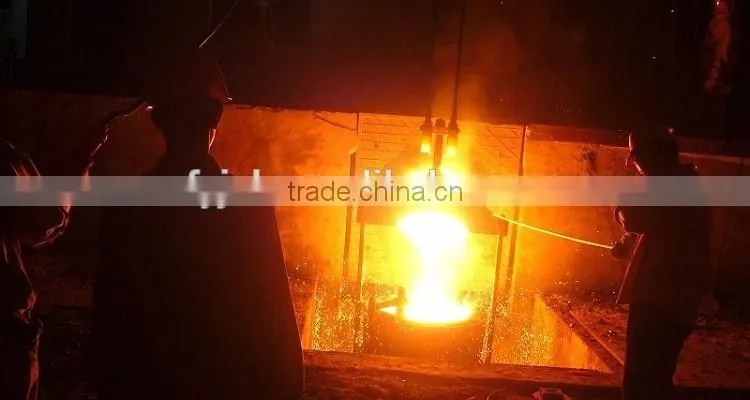

Process	EAF+LF+VD+ESR+Forged/Rolled+Heat Treatment (Annealed,A Normalized, Q+T)
Heat treatment	Normalized, Annealed, Quenched, tempered

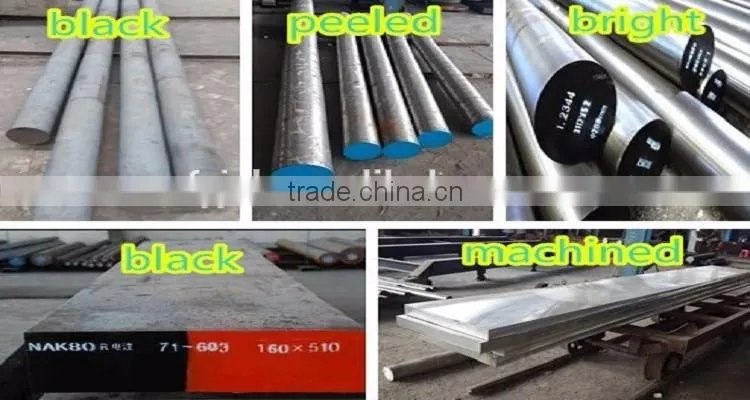

Surface Treatment	Black; Grinded/Peeled ; Machined;Turned/Bright
Payment Terms	(1) 100% T/T, (2) 30% advance payment by T/T, and 70% should be paid against the color scanned copy of BL by T/T or irrevocable L/C at sight
Trade Terms	FOB, CIF, CFR
Packing	Standard seaworthy packing or as customer required

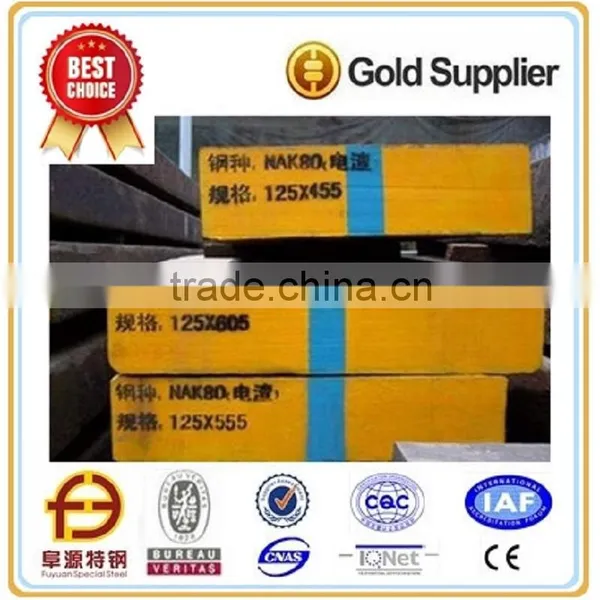

Marking	Grade, Heat No. Length will be stamped one each bar with required color or as customized.
Shipping Marks	As Buyer/Seller's option. N/M means no marks.
Delivery Condition	Hot forged +Rough machined (black surface after Q/T)+ Turned (optional)
Delivery Time	Shipped within 50 days after prepayment.
MOQ	1 ton or Flexible MOQ.
Forged Ratio	No less than 4:1
Technical Data	According to the customer's requirement of Chemical Composition, Physical Properties and Mechanical Testing
Ultrasonic Test	According to SEP 1921-84 G3 C/c or D/d
Test and Certificate of Quality	Mixed test, crack test, defect depth test, US test, production process, the mechanical property, forged ratio, Grain size, heat treatment methods and the sample of is shown on the Certificate of Quality
Invoicing	According to acctural weight.
Size tolerence	0/+2mm for bright / grinded / machined surface, 0/+4mm for black / peeled surface.
Length tolerence	10% shorter length should be allowed.
Quantity tolerence	-10%/+10% for total quantity.
Physical Properties
NAK80 steel solid solution temperature on hardness
Solution temperature (°C) : hardness(HRC)	780: 30.8, 810: 32.4, 840: 33.1, 870: 32.7, 900: 33.1, 940: 31.0
Recommended solution treatment norms	Solution temperature: 850±20 °C. Cooling method: Air-cooled.
Recommended age-hardening of steel to deal with norms	Aging temperature: 510±10 °C, Aging time: 4~8 h, Cooling method: Air-cooled.
Applications	High-performance precision plastic mould, rubber mould, stamping mould (bending etc.), industrial machinery parts, Mirror transparent material, discharge processing from the surface, jigs, fixtures, press dies, etc

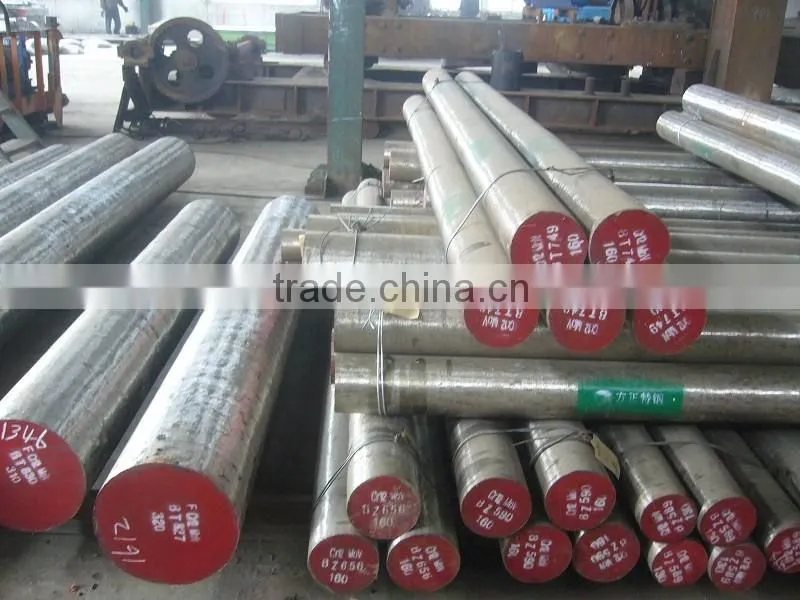

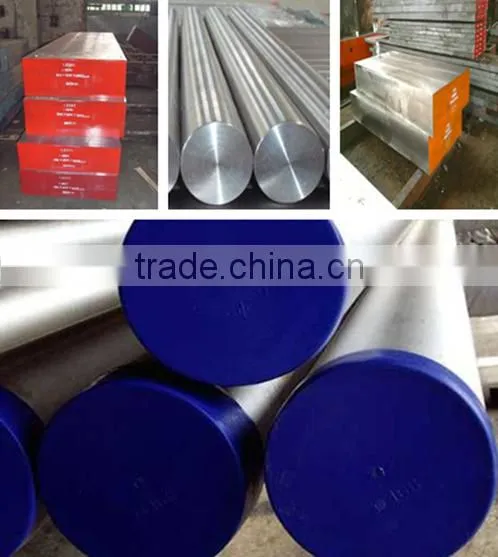

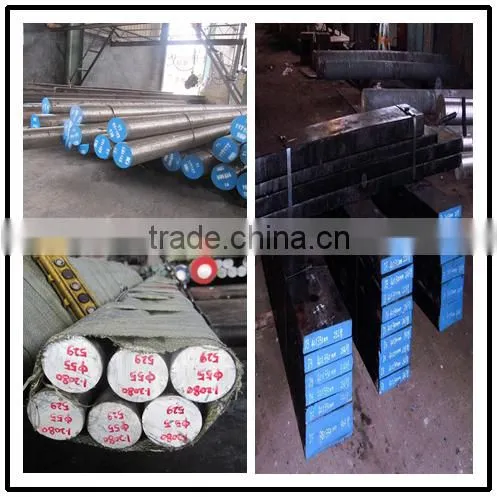

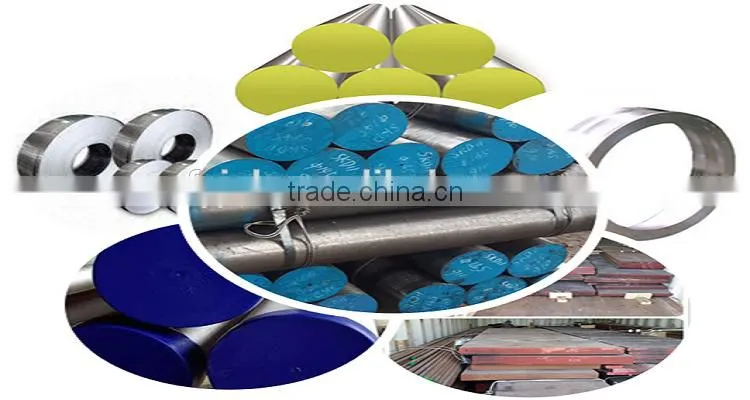

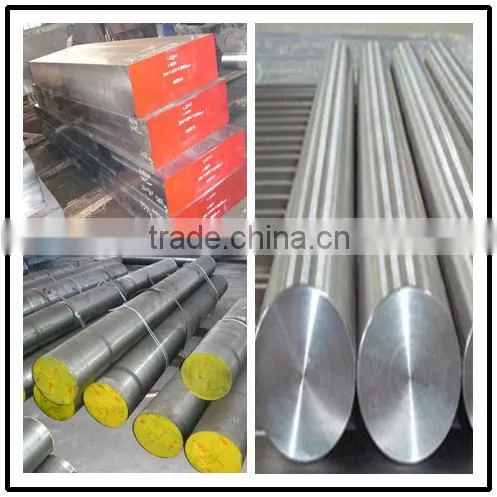

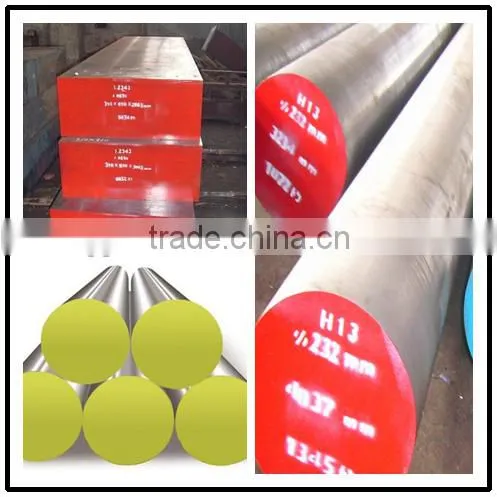

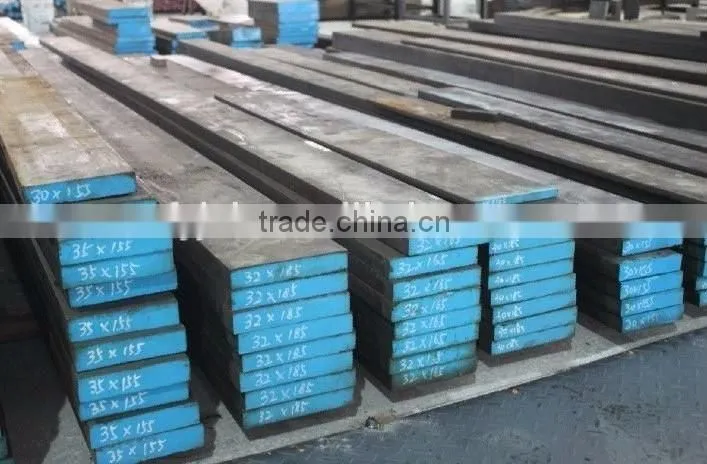

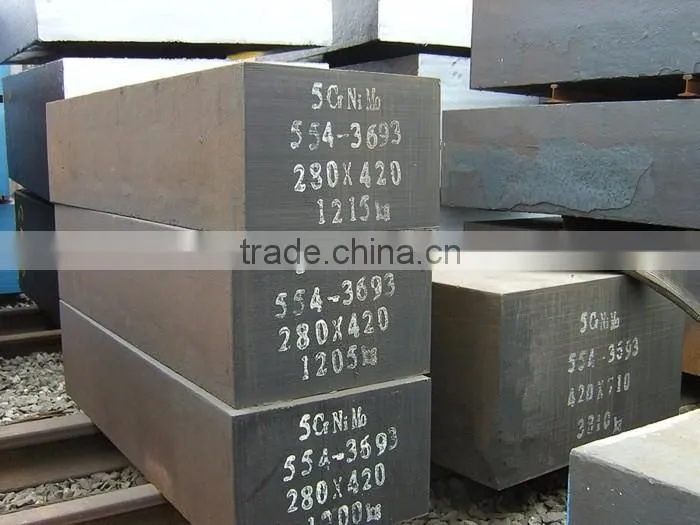

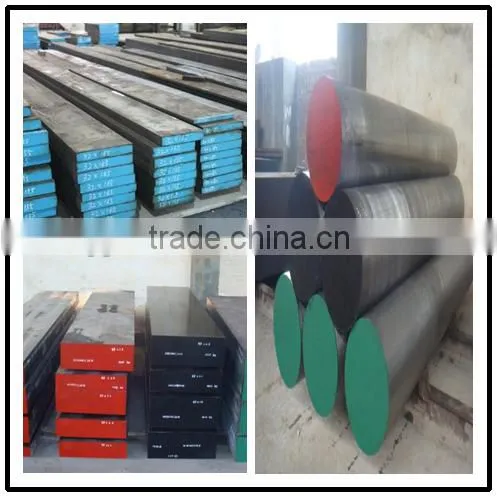

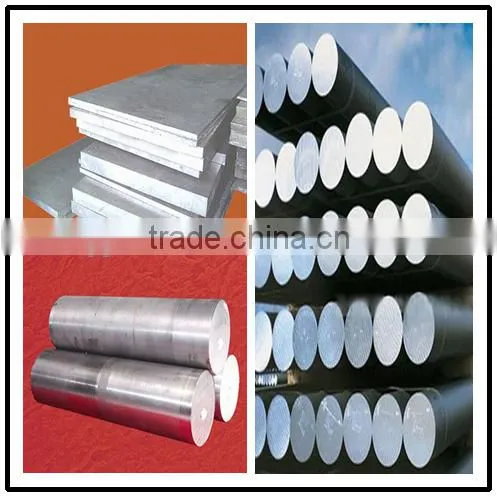

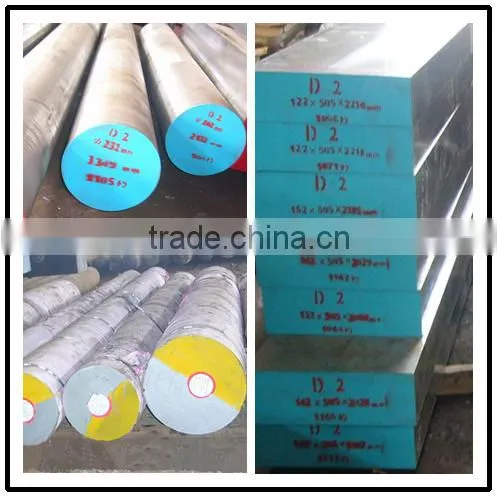

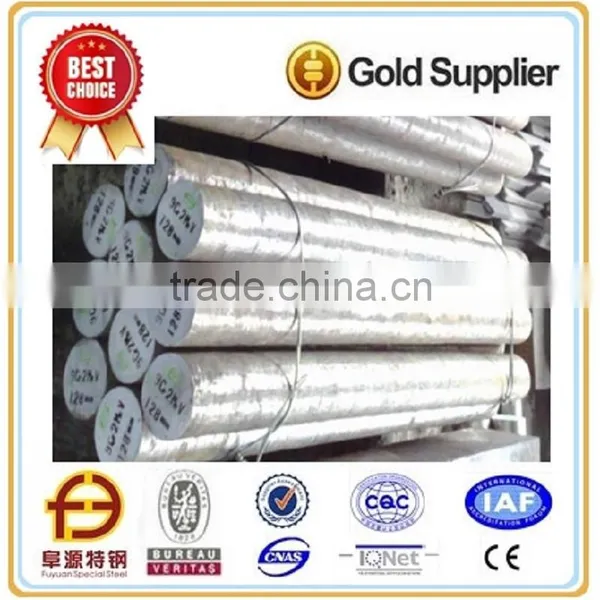

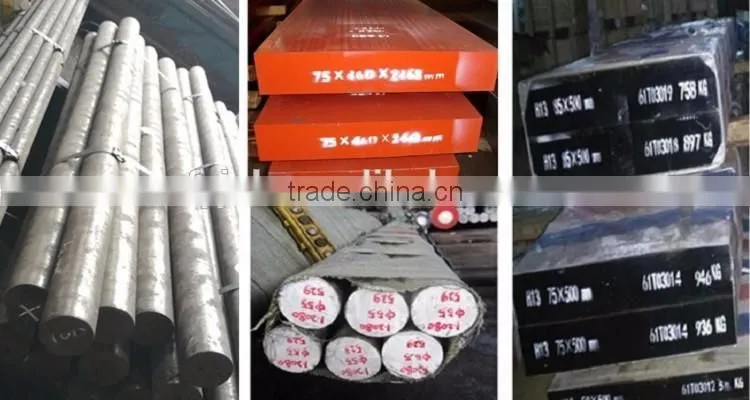

Product Show

Why Choose Us

About us

1, Professional to produce and RD more than 100 kinds and 1000 sizes of die / mould / tool / alloy steel products more than 10 years; Rich technology strength; Strong processing strength; Advanced production equipment; Complete test instrument; Rigor quality management.

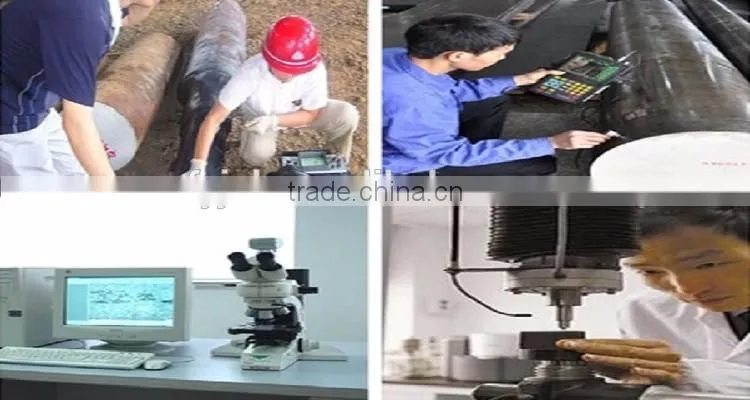

Quality control

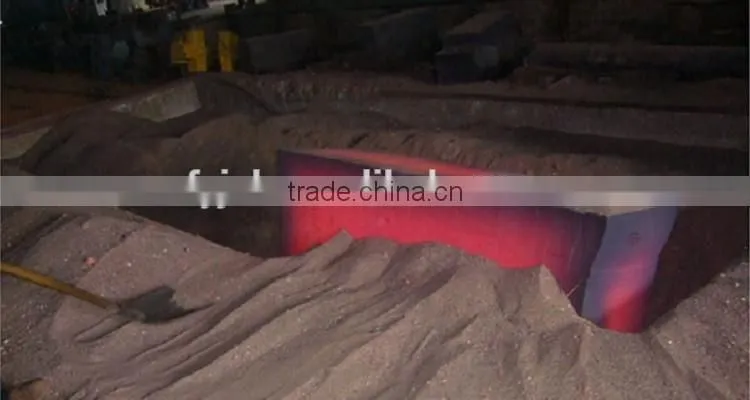

2, Acceptable materials; UT test; After annealing, Sand cooling and annealing; Machining; Tolerance control; Strictly testing; Certification: Mill Test or third party inspection institution.

Service

3, OEM or ODM; Customized; Sample free provided; Flexible MOQ; Reliable quality; Competitive price; In seaworthy packing; Excellente service; Reply within 24 hours.

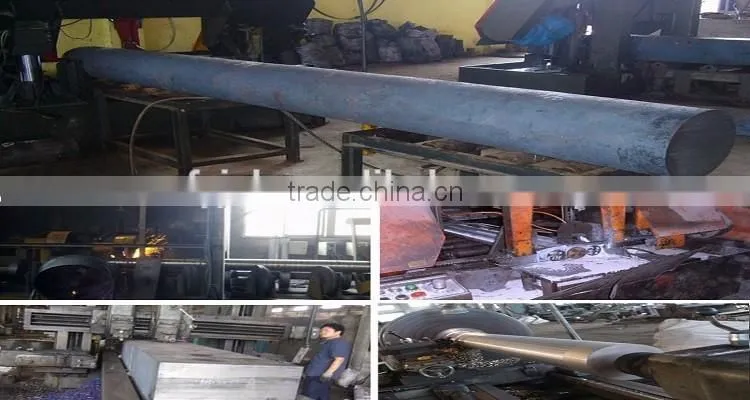

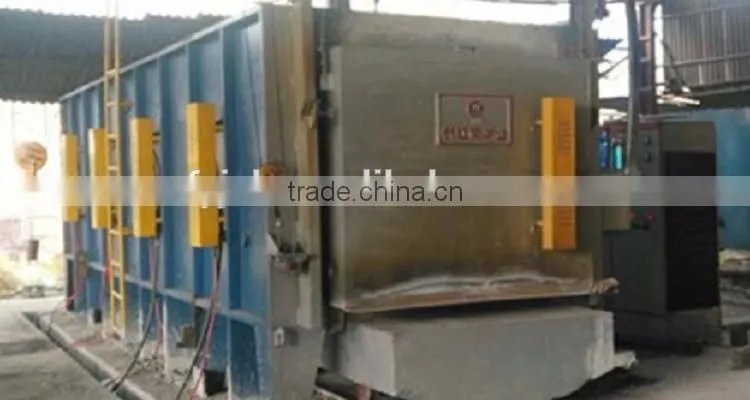

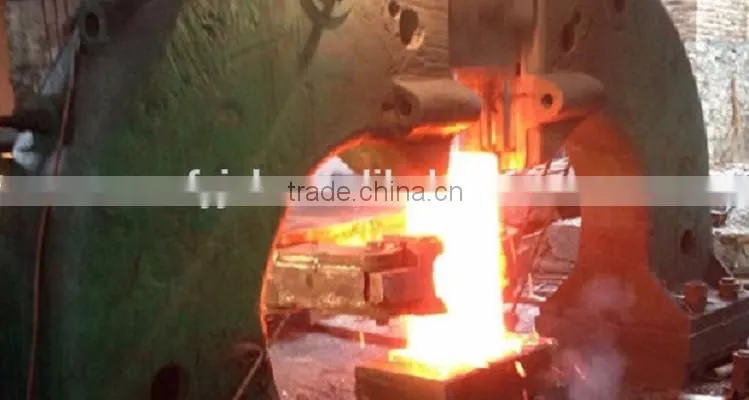

Product Processing
