| Name | ebike battery(24v 10ah) |
|
| Cell Type | 18650 Samsung Li-ion |
|
| Nominal Voltage | 24V | |
| Rated Capacity | 10Ah | |
| Internal Resistance | ≤190mΩ (AC1kHz AC impedence) | |
| Weight | About 3.5kg |
|

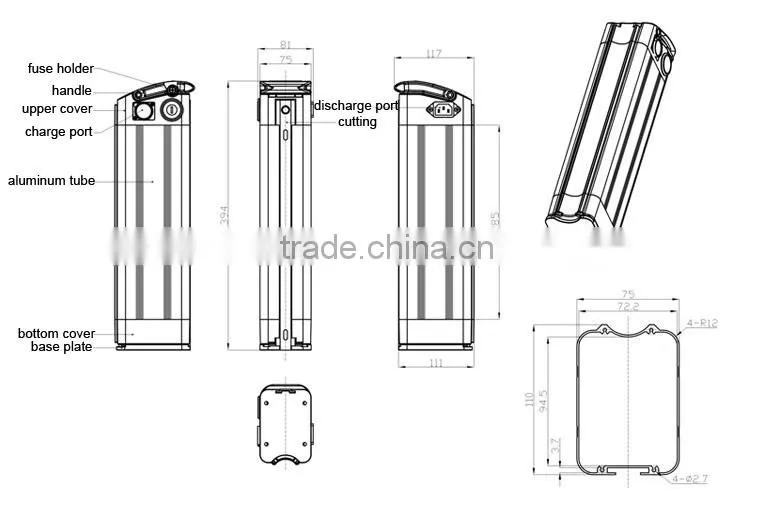

| Dimension | 117mm(L)x81mm(W)x394mm(H) | |
| Charge&Discharge Mode | CC&CV | |
| Cycle Life | ≥500 times | |
|
Battery Hopower Retention (power strorage:one month) |
≥95% | |
| Certification | RoHS,CE | |
| Warranty | 12 months | |
| Applicaiton | Electric bike,E-scooter etc | |
| Charge | Standard Charge Current | 2A |
| Max Discharge Current | 3.5A | |
| Max Charge Voltage | 29.4V | |
| Discharge | Standard Discharge Current | 5A |
| Max Discharge Current | 20A | |
| Discharge Cut-off Voltage | 21V | |
|
PCB parameters |
Overcharge Protection Voltage | 4.25±0.03V |
| Over-discharge Voltage Protection | 2.5±0.1V | |
| Over-current Protection Current | ≥40A | |
| Over-current Protection Delay | < 15 ms | |
|
Working Temp. |
Charge Temp. | 0~45°C |
| Discharge Temp. | -20~55°C | |
Adavantage:
1. The capacity is 100% enough
2. Long shelf-life and low self-discharge rate
3. The distinction of capacity between two cells is less than 10 mAh.
4. The distinction of voltage between two cells is less than 0.003v.
5. The internal resistance is 3mΩ-5 mΩ.
6. Use samsung lithium-ion 18650 cell.

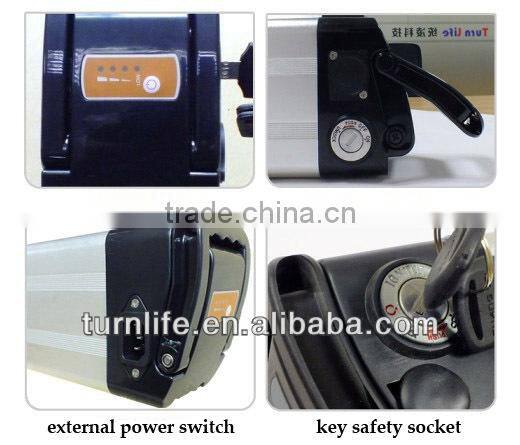

Detail photos
Trade terms:
1.Payment:By T/T or Western Union.
100% payment if the total amount is ≤5,000USD
30% deposit and 70% balance before shipment if the total amount is ≥5,000USD
2.Delivery ways:DHL,UPS,FedEx door to door service ,by sea,by air,etc.
Our Services:
1.Reply your inquiry in 24 working hours.
2.Customized design is available.OEM & ODM are welcomed.
3.Professional engineers & Exclusive and unique solution.
4.Well-trained staffs.
5.Return Policy: For defective goods,please send us the pictures to confirm then we will give you the replacement
during warranty period.

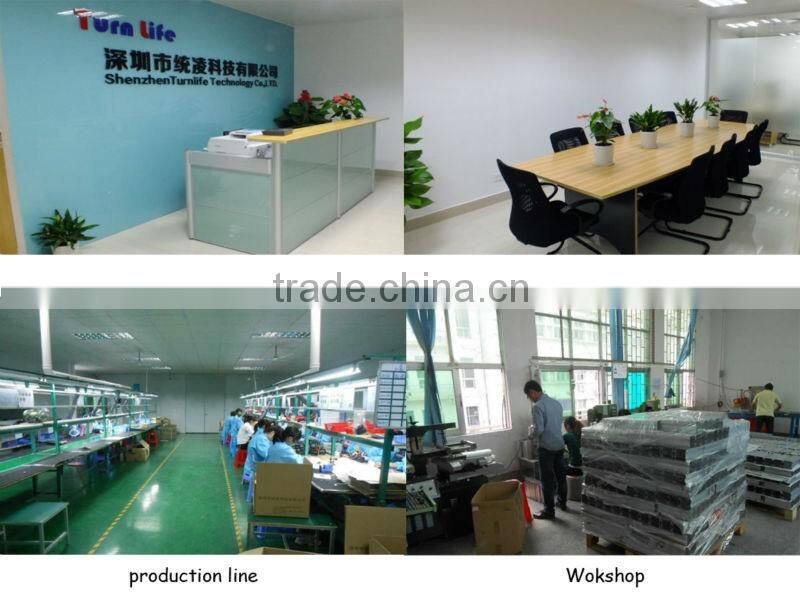

Company profile:
Turn Life is one of the high technology firms which devotes to R&D the new energy, mainly engaged in the electric bike lithium battery, customized lithium battery and power bank. Develop, produce and sell three series of solar storage system battery.
