Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment

Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment thumbnail-1
Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment thumbnail-2
Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment thumbnail-3
Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment thumbnail-4
Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment thumbnail-5

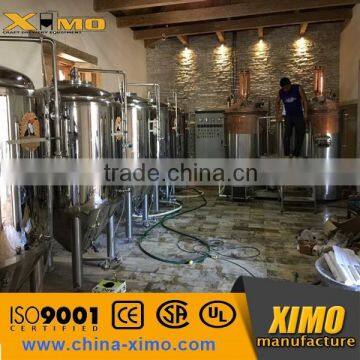

Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment photo-1

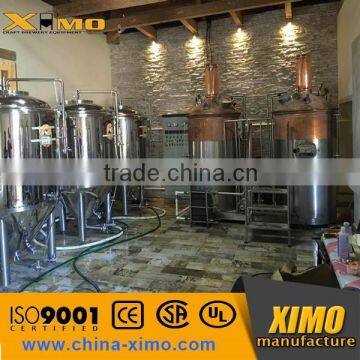

Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment photo-2

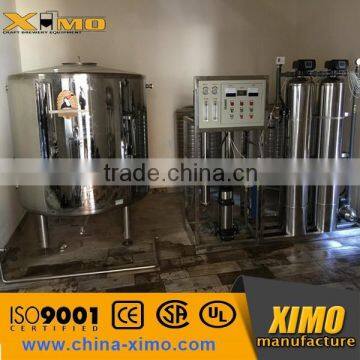

Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment photo-3

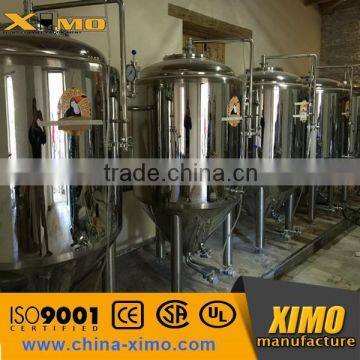

Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment photo-4
Beer Brewing Equipment ,red Copper Beer Equipment , Microbrewery Equipment photo-5
US$ 26,000 - 38,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
XIMO
Contact Supplier Request Quote Chat Now
Jinan Ximo International Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name XIMO
Model Number XM-KX100L
Processing Types Alcohol
Voltage depends
Power(W) depends
Dimension(L*W*H) all depends
Weight all depends
Certification CE, ISO,ECM
Warranty 3 years
After-sales Service Provided Engineers available to service machinery overseas
Beer brewing equipment ,red copper beer equipment , microbrewery equipment



Our Beer Brewing Equipment is carefully manufactured and tailored specifically to each of our customers’ needs.

We offer a wide array of Beer Brewery Equipment that will accommodate  any budget or production goal that

each customer might have.






Product Instruction:

Beer Brewing Brewing Equipment Overview

(Can be customized )



Architecture

Main Components

1.Trituration System

01.Malt Mill

2.Heating System

   (Optional)

01.Steam Boiler(Optional)

3.Saccharification System

01.Mash Tun / Lauter Tank

02.Whirlpool Tank /Brew Kettle

4.Fermentation System

01.Fermentation Tank

5. Cooling System

01.Glycol Tank

02.Glycol Unit

6. Cleaning System

01.Disinfection Tank

02.Alkali Tank

03.Sterilization Vehicle

04.Sterilization Pump

7. Control System

with PLC screens to monitor the temperature of the fermentation,

the Brew house and  Glycol Tank. (High Quality)





Product Characteristics:

5 High

High Quality SUS304 and SUS316 raw materials with material quality certificate ;

High Quality False Bottom Filter - virtually guarantees consistent wort flow
High Quality Stainless Steel Thermometers and Valves

High Efficiency Heat Exchanger

High Efficiency Designs and Rapid Recovery and Compact- Space Saving

4 Excellent

Excellent welding: Fully welded exterior shell TIG Welding

Excellent polishing: Interior and exterior finish polished to a sanitary finish

which eliminates any possibility of contamination;

Excellent Details:

Dual zone dimple cooling jackets (3 or more on larger tanks)

2” Polyurethane insulation & Sanitary tri-clamp connections

Individually Controlled On-Demand Temperature Controls For Each Tank

Excellent Design:

Rotating racking port& Side manway hole, shadowless

2” CO2 blowoff arm for maximum tank space utilization

Flexible Brewing Configurations & All systems made to suit & Custom Manifold Designs





Details of Beer Brewery Equipment:

Beer brewing equipment ,red copper beer equipment , microbrewery equipment

(1) High quality materials

The raw materials is SUS304 and SUS316, which require materials quality certificate.

We’ll test the materials quality using chemical agent when we receive the materials.



(2) Excellent appearance

The polishing standard of welding seam is 240 um, 60mm width. All of connection required

turn up workmanship and all of welding seam required polishing, which is more smooth

tank surface. We’re very serious about the excellent appearance of tanks.



(3) The standard of tanks

We use plasma torch to cut the materials on the soft carpet, avoid to damaging the surface of

stainless steel, and then we adopt double argon protection welding

Volume: Working volume and 20%-30%additional space.

Inner Shell: SUS304 materials, thickness 3mm, acid washing and

passivation treatment, furthermore,polishing and mirror treatment are workable with different cost.

All of the inner surface connection using turnup workmanship and polishing round.

The normal pressure is 0.2Mpa, maximum test pressure is 0.4Mpa.

Cladding: SUS304, 2mmthickness, welding seam polishing, 60mm width.

All of the welding connection polishing treatment, more smooth



(4) The special design

Four adjustable legs. In special area, stand bolt and gasket can be designed to avoid earthquake.

All of connection is Φ38.1(exceptmash tun outlet), Jacket using thread connection,

pipe using clamp, easy to unpick and washing. Fliter plate using Milling type grid,

strong and smooth. No noise from mixer equipment, the motor variable frequency.







Product Ranges:

Beer brewing equipment ,red copper beer equipment , microbrewery equipmentBeer brewing equipment ,red copper beer equipment , microbrewery equipment











Company Profile:

Beer brewing equipment ,red copper beer equipment , microbrewery equipmentBeer brewing equipment ,red copper beer equipment , microbrewery equipment



Factory Overview:
Beer brewing equipment ,red copper beer equipment , microbrewery equipment



Our Service:
Beer brewing equipment ,red copper beer equipment , microbrewery equipment
Beer brewing equipment ,red copper beer equipment , microbrewery equipment

We are grateful that you are interested in our product and thanks for your time .

For any query regarding our Beer Brewery Equipment, please feel free to contact us.

We will be more than happy to support you !
