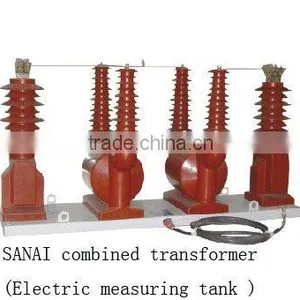

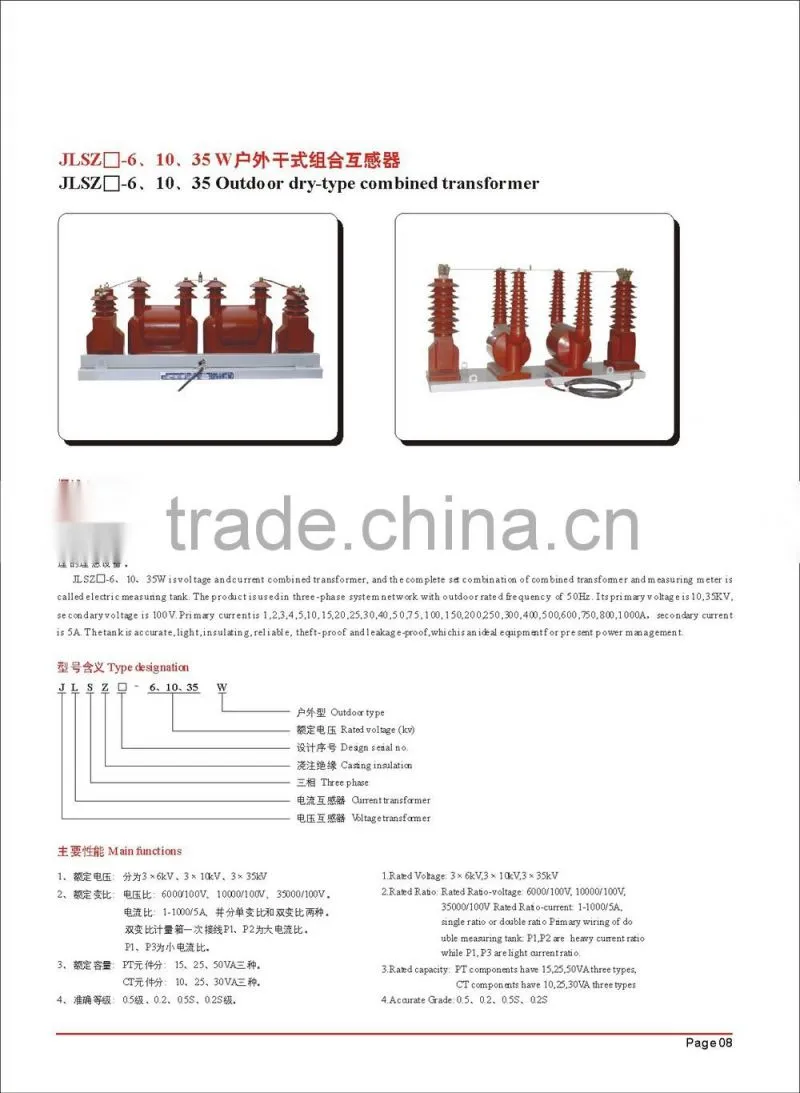

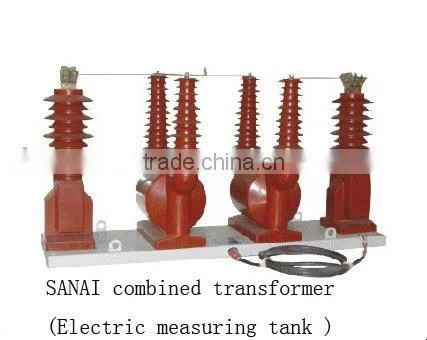

JLSZ- 6kV 10KV ,35KV Outdoor dry-type combined transformer
It is voltage and current combined transformer ,and the complete set combination of combined transformer and measuring meter is called electric measuring tank.
The product is used in three-phase system network with outdoor rated frequency of 50Hz.
Its primary voltage is 6kv and 10kv ( from 6kv to 10kv , you can choose your voltage )
Secondary voltage is 100V.
Primary current is 1, 2, 3, 4, 5,10,15 ,20, 25, 30, 40, 50,60,75, 100, 150, 200, 250, 300, 400, 500, 600, 750, 800, 1000A and so on .
Secondary current is 5A.
The tank is accurate ,light ,insulating , theft-proof ,which is an idea equipment for present power management .
more detail ,please contact us . welcome you to inquiry about products
Package : cartons and wooden case with pallent.
Shipping : 3days ~30days after receiving L/C or T/T advance payment .
We can also package the goods according your requirements
24 hours online services . to solve your any questions,
Offer OEM Service , After-Sales Service, Technical data Service
Outdoor dry-type combined transformer
high voltage electric measuring tank,
transformer
