Current Usage and Single Phase Heater Protection Current Transformer
- Ningbo port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SANAI | |
| Model Number | LQZBJ-15 | Usage | Instrument | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
Current Usage and Single Phase heater protection current transformer
15kv current transformer
1).Rated voltage :15kv
2),Rated insulation :17.5/38/95kv
3).Rated primary current : from 15A to 1000A
4).Rated secondary current :5A or 1A
5).Accuracy class: 0.5, 0.5S, 0.2, 0.2S, 10P
6),Rated burden : 10VA, 15VA , 20VA
The other detail technical data ,please contact us .
we'd like to reply you in time .
Construction
This current transformer is fully enclosed and posts type product It has a good ability of antipollution and moisture proof.It is smaII and light,It can be mounted in any position you like.
Technical parameter
The voltage transformers are in accordance IEC60044-1 standards
Rated insulation leveI 17.5/75/95KV;
Load power factor COSΦ=0.8(Lag);
Rated secondary Current 5A or 1A;
Instrument insurance Darameter Fs≤10;
Pollution class lV.
type | rated primary current (A) | accuracy classes | rated output (VA) | 1s thermal stable current (kA) | dyniamic current (kA) | |||||
0.2s | 0.2 | 0.5 | 10P10 | 10P15 | 10P20 | |||||
LQZBJ-15 | 50 | 0.2(S)/0.2(S) 0.2(S)/0.5(S) 0.5(S)/0.5(S)
0.2(S)/0.5(S)/10P
0.2(S)/10P/10P
| 15 | 15 | 30 | 50 | 30 | 20 | 150lln | 375lln |
75 | 31.5/1 | 80 | ||||||||
100 | 31.5/2 | 80 | ||||||||
150 | 15 | 15 | 30 | 50 | 30 | 20 | 31.5/3 | 80 | ||
200 | 30 | 30 | 50 | 50 | 40 | 30 | 31.5/4 | 80 | ||
300 | 40 | 40 | 50 | 50 | 50 | 40 | 40/4 | 100 | ||
NOTE: if user's data go beyong the above mentioned scope, please contact us to confirm.
outline and installation dimension

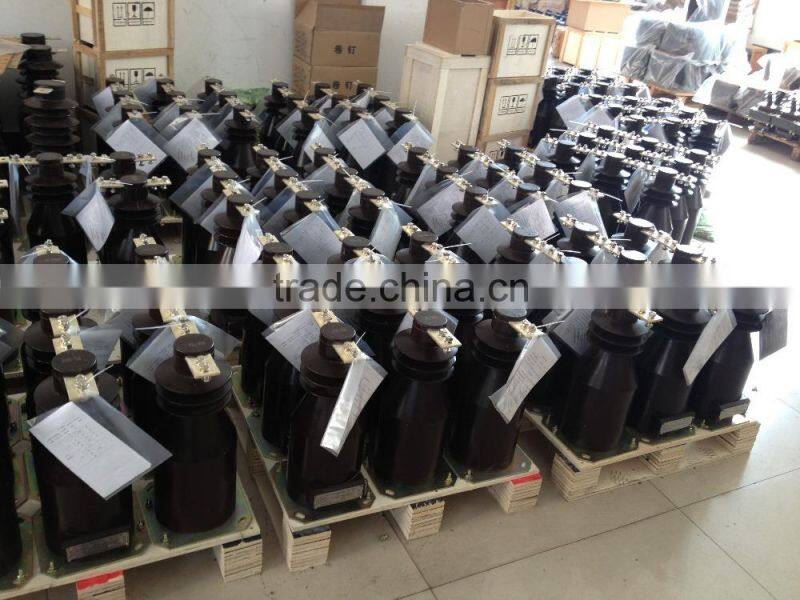

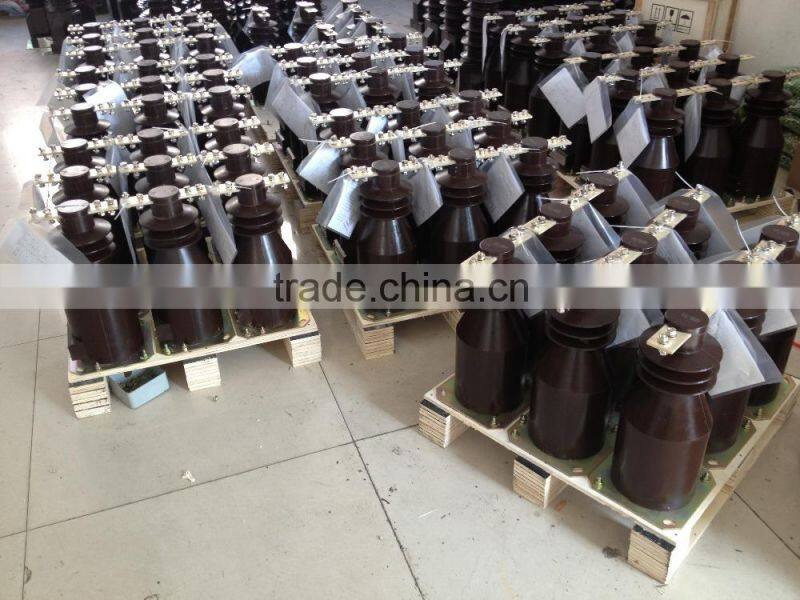

Package : cartons and wooden case with pallent.
Shipping : 3days ~30days after receiving L/C or T/T advance payment .
We can also package the goods according your requirements
24 hours online services . to solve your any questions,
Offer OEM Service , After-Sales Service, Technical data Service
MOQ & delivery
1. MOQ: 1 pc
2. delivery time: within 15-20 days after the advance payment
payment term:
1. accept L/C, T/T, western union,money gram
Test report .
1.ISO Certificate
2.Type test report and factory test report .
quality & price:
1. we sell items with top quality because we want to keep every customer as our long-term business partner.
2. we set competitive price because we need to attact buyers to this new store.
3. we ship your items on time after you place orders.
