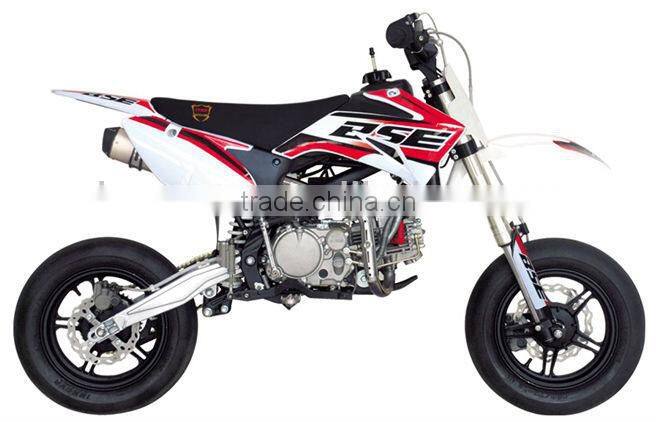

Help CenterPITBIKE PH10A SUPER MOTO 150CC 160CC
Related Products
-
BSR125 EEC ON RAOD RACING BIKE MOTORCYCLE FROM CHINA GREEN COLORUS$ 500 - 1,000MOQ: 30 Units -
BSR EEC ON RAOD RACING BIKE 125cc for Cheper Pit Bike BSR Style Cheap Sale From ChinaUS$ 600 - 1,000MOQ: 30 Units
-
PH10A ON ROAD BIKE 150CC 160CC DIRT BIKE BIG POWERUS$ 900 - 1,500MOQ: 30 Units
-
PIT BIKE ON ROAD BIKE 140CC 150CC 160CC DIRT BIKE BIG POWERUS$ 900 - 1,500MOQ: 30 Units
-
China BSR125 EEC ON RAOD RACING BIKE MotorcycleUS$ 500 - 1,000MOQ: 30 Units
ENGINE
Engine type: 150CC, single cyclinder, 4-stroke, oil cooled, start at any gear
Bore X Stroke: 60X54mm
Compression Ratio: 9.8:1
Max power 11.0kw/8500rpm
Min Fuel Consumption <=367g/KW.H
Max torquer: 9.5N.m/ 8500rpm
Transmission system all up gear, N-1-2-3-4
lgnition mode CDI electronic ignition
Clutch Manual, wet multiple plates
CHASSIS
Frame High strengthened duralable forged steel twins cradle, 3-spar chromolly main body
Swing arm: Heavy duty steel swing arm with linkage connector
Suspension system Front:45/18-735mm length up-side-down suspenssion, rebound and compression adjustment 385mm length high performance, rebound and compression adjustment, linkage fixation connector
Brake system Hydraulic disc brake, special designed disc for sufficient brake, disc size: front: 220mm, rear: 190mm
Maximum load 353lb/(160kgs)
Tank Capacity 0.9gal(us)/(3.4L)
G.W/N.W 154lb/143lb(70kgs/65kgs)
Carburetor MIKUNI VM26
Dimensions(L*W*H) 1660mm*760mm*1060mm
Carton size 1620mm*385mm*735mm
Container 75units 20"FCL 153units 40" FCL 153units 40HQ FCL
Seat Height 32in/810mm
Wheel base 48in/1215mm
Ground Clearance 11.4in/290mm
Engine and Rear sprocket 15/41T, 428# Chains.
Rim Size Front 12.50-12/ Rear 2.75-12, alloy rim
Tire size Front/Rear: 90/90-12 110/70-12
