Home > Packaging & Printing > Packing Machinery > Filling Machine > Coffee Powder Automatic Premade Pouch Filling Sealing Machine
Coffee Powder Automatic Premade Pouch Filling Sealing Machine
US$ 30,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Food, Other, Medical, Beverage, Chemical, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Capsule
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SW-8-200 2015 Premade Pouch Filling and Sealing Machine Line for NutsUS$ 30,000 - 40,000MOQ: 1 Set -
Automatic Premade Pouch Fill Seal Machine For Snack FoodUS$ 30,000 - 40,000MOQ: 1 Set
-
SW-PL6 Automatic Chips Popcorn Standup Pouch Packing MachineUS$ 20,000 - 23,000MOQ: 1 Set
-
SW-PL6 Automatic Coffee Beans Pouch Packing MachineUS$ 20,000 - 23,000MOQ: 1 Set
-
China Supplier! Premade Pouch Filling Sealing MachineUS$ 30,000 - 40,000MOQ: 1 Set
Condition
New
Application
Beverage, Chemical, Food, Other, Medical, Beverage, Chemical, Food, Machinery & Hardware, Medical
Packaging Type
Bags, Capsule
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Pneumatic
Voltage
220V/380V
Power
3.8kw
Place of Origin
Guangdong, China
Brand Name
SMART WEIGH
Model Number
SW-8-200
Dimension(L*W*H)
L2691*W1537*H1675mm
Weight
1200KG
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Coffee Powder Automatic Premade Pouch Filling Sealing Machine
Overview:
1. Application
This automatic packing machine unit is specialized in the powder and granular, such ascrystal monosodium glutamate, wash clothes powder, condiment, coffee, milk powder, feed.
It is mainly for pre-made bag packing

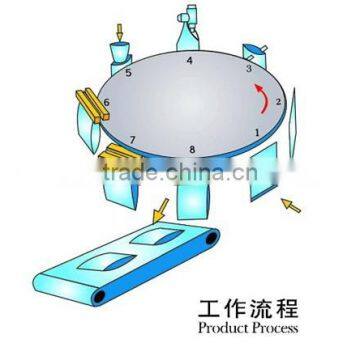

2. Working Procedure
Total 8 working position as following:
1). Pouch conveyor feeding & pickup
2). Date Coding & Zipper Open Device (option)
3). Open the bottom of pouch
4). Pouch top opening
5). First filling position
6). Second filling position(option)
7). First sealing position
8). Second sealing position(cold seal) and Pouch feed out conveyor
Features:
1). Adopt advanced “Tanz” Indexing Gear Box Design;
2). Finger width adjustment could be made in touch screen;
3). Adopt a “Panasonic” PLC control system to control whole machine;
4). Adopt Germany “Piab” vacuum pump for pouch opening, reliable, lower noise and no maintenance, avoid the trouble and pollution in using a normal vacuum pump;
5). Adopt “Schneider” frequency inverter;
6). Adopt PID temperature controller;
7). Adopt colorful “Kinco” touch screen for operation control;
8). All “Telemerchaniq” and “Omron” electrical component;
9). All “SMC” and “AIRTAC” pneumatic parts;
10). Stainless Steel Construction, with safety door function;
11). With one year spare parts and tools kit with the main machine;
12). 3 corner of the machine have START and EMERGENCY stop, user friendly mechanical design;
13). Base frame table can be washed directly after daily work.
Specification:
Model |
SW-8-200 |
Working position |
eight-working position |
Pouch material |
Laminated filmPEPP etc. |
Pouch pattern |
Stand-up, spout, flat |
Pouch size |
W:100-210 mm L:100-350 mm |
Speed |
≤50 pouches /min |
Weight |
1200KGS |
Voltage |
380V 3 phase 50HZ/60HZ |
Total power |
3KW |
Compress air |
0.6m3/min(supply by user) |
Options:
1). Zipper Bag Open Device
Function: Open the zipper on the empty bag
2). Vibration Device
Function: vibrating on the bottom of the pre-made bag while filling, ensure all products get inside the bag and good for sealing
3). Nitrogen Flush Device
Function: Injet nitrogen into pre-made bag
Function: Open the zipper on the empty bag
2). Vibration Device
Function: vibrating on the bottom of the pre-made bag while filling, ensure all products get inside the bag and good for sealing
3). Nitrogen Flush Device
Function: Injet nitrogen into pre-made bag
Optional Filling Systems:
1).Fits most fillers for dry and frozon applications:
2).Combination weighers
3).Combination scalesAuger fillers
4).Cup fillers
5).Linear scales
Machine dimension layout:
Packing& shipping:
1. polywood carton
2. 25 days delivery
3. FOB/CIF terms
