2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food

2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food thumbnail-1
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food thumbnail-2
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food thumbnail-3
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food thumbnail-4
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food thumbnail-5
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food thumbnail-6
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food photo-1
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food photo-2
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food photo-3
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food photo-4
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food photo-5
2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food photo-6
US$ 20,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Material:
Plastic
Plastic Type:
PP
Bag Type:
Stand Up Pouch
Contact Supplier Request Quote Chat Now
Zhongshan Smart Weigh Packaging Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Plastic
Plastic Type PP
Bag Type Stand Up Pouch
Industrial Use Food
Use Other, Snack
Feature Moisture Proof
Surface Handling Hot Stamping
Custom Order Accept
Place of Origin Guangdong, China
Brand Name Smart Weigh
Model Number SW-8-200

Overview:



1. Application

This automatic packing machine unit is specialized in the powder and granular, such ascrystal monosodium glutamate, wash clothes powder, condiment, coffee, milk powder, feed.
It is mainly for pre-made bag packing

2. Working Procedure

Total 8 working position as following:




1). Pouch conveyor feeding & pickup




2). Date Coding & Zipper Open Device (option)




3). Open the bottom of pouch




4). Pouch top opening




5).  First filling position




6).  Second filling position(option)




7).  First sealing position




8). Second sealing position(cold seal) and Pouch feed out conveyor







Features:





1). Adopt advanced “Tanz” Indexing Gear Box Design;

2). Finger width adjustment could be made in touch screen;

3). Adopt a “Panasonic” PLC control system to control whole machine;

4). Adopt Germany “Piab” vacuum pump for pouch opening, reliable, lower noise and no maintenance, avoid the trouble and pollution in using a normal vacuum pump;

5). Adopt “Schneider” frequency inverter;

6). Adopt PID temperature controller;

7). Adopt colorful “Kinco” touch screen for operation control;

8). All “Telemerchaniq” and “Omron” electrical component;

9). All “SMC” and “AIRTAC” pneumatic parts;

10). Stainless Steel Construction, with safety door function;

11). With one year spare parts and tools kit with the main machine;

12). 3 corner of the machine have START and EMERGENCY stop, user friendly mechanical design;

13). Base frame table can be washed directly after daily work.



Specification:





Model

SW-8-200

Working position

eight-working position

Pouch material

Laminated filmPEPP etc.

Pouch pattern

Stand-up, spout, flat

Pouch size

W:100-210 mm L:100-350 mm

Speed

≤50 pouches /min

Weight

1200KGS

Voltage

380V  3 phase  50HZ/60HZ

Total power

3KW

Compress air

0.6m3/min(supply by user)









Options:


1). Zipper Bag Open Device
Function: Open the zipper on the empty bag

2). Vibration Device
Function: vibrating on the bottom of the pre-made bag while filling, ensure all products get inside the bag and good for sealing

3). Nitrogen Flush Device
Function: Injet nitrogen into pre-made bag


Optional Filling Systems:

1).Fits most fillers for dry and frozon applications:
2).Combination weighers
3).Combination scalesAuger fillers
4).Cup fillers
5).Linear scales

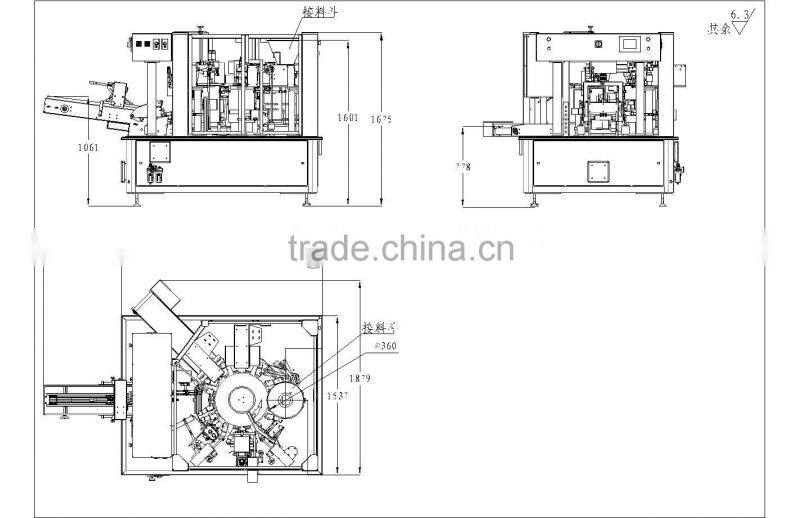

Machine dimension layout:



 2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food

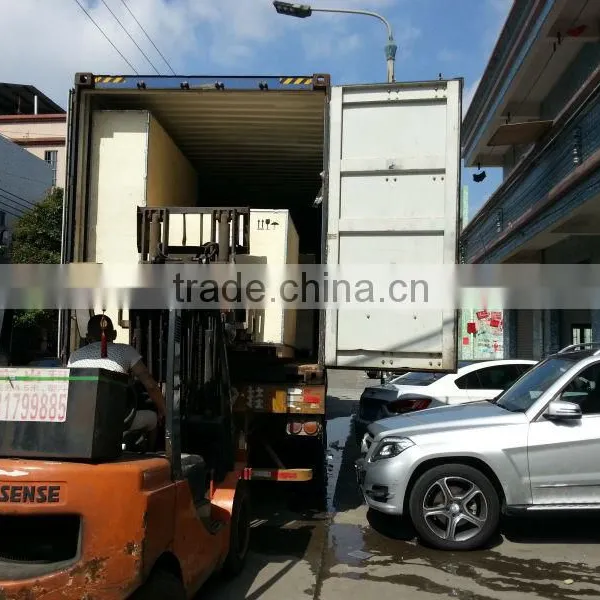

Packing& shipping:

1. polywood carton
2. 25 days delivery
3. FOB/CIF terms


Smart Weigh products:

2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food2015 SW-8-200 Hot Sale CE Approved Automatic Rotary Packing Machine for Granule Food
