Product Details
| Place of Origin | Jiangsu, China | Brand Name | GOLINK | |
| Model Number | HBG1000 |
Product Description

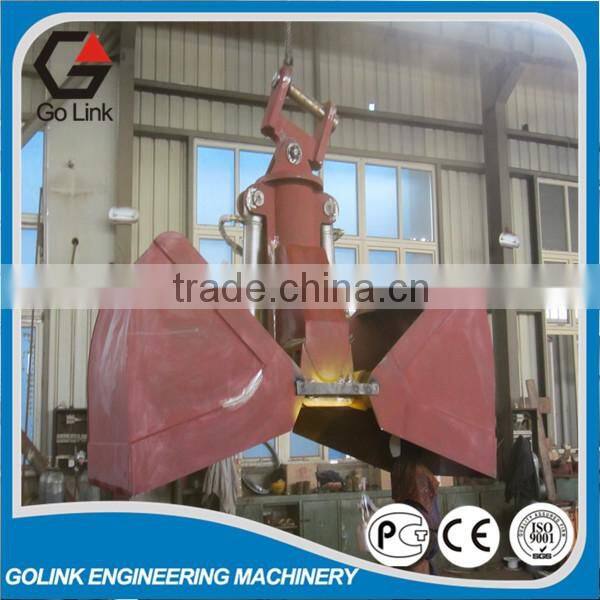

High quality Long Service Life Clamshell Bucket/Excavator Grab/ mad in China

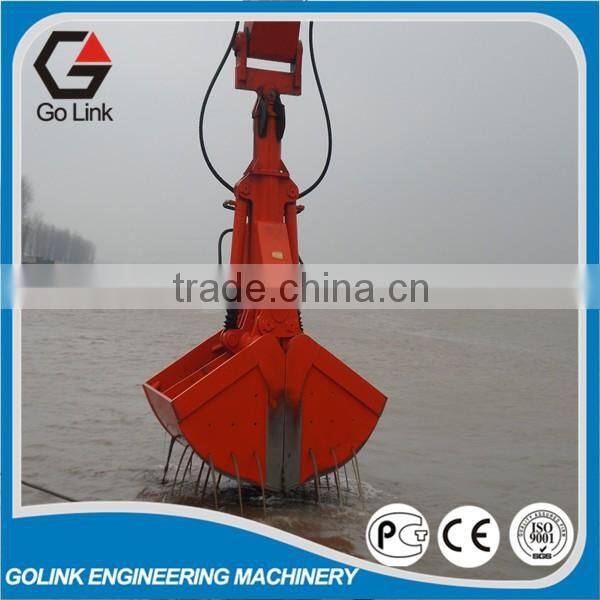

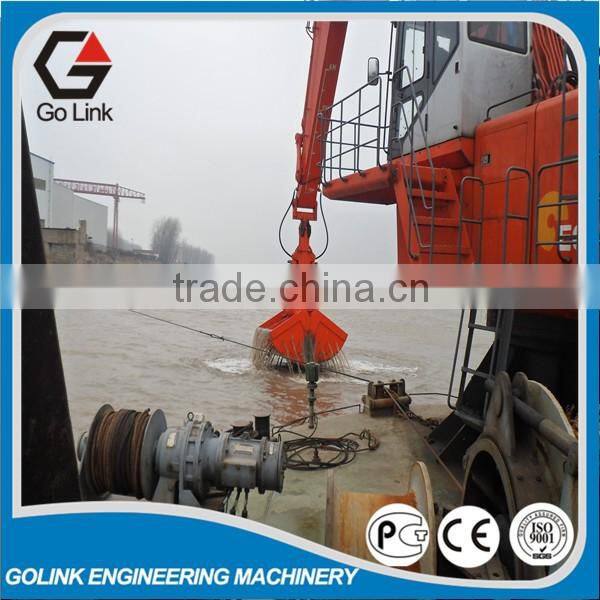

1.Used for building the base of the foundation pit digging mining, pit mining, gravel and clay, sand, coal loading. Particularly applicable to ditch or restricted space on one side of the excavation and loading. Apply to port ship, train and car
2.With double oil cylinders drive and high strength steel production. With big closing force, excellent mining properties,and high work efficiency. Hydraulic turning points according to the customers' demand, Without hydraulic rotary excavator grab use the oil cylinder or standby line, don't need to add other hydraulic valve block and line. Rotary hydraulic excavator grab need add another set of hydraulic valve and pipeline to control, oil cylinder makes the piston protective device
Drawing:
Type HBG-1 | Weihgt | Capacity (m3) | Density (t/m3) | SWL (t) | Size (mm) | ||||
A | B | C | D | E | |||||
HBG400-1 | 560 | 0.4 | 0.4-1.2 | 5 | 1260 | 810 | 1100 | 1350 | 950 |
HBG500-1 | 650 | 0.5 | 0.4-1.2 | 6.25 | 1350 | 870 | 1200 | 1460 | 1020 |
HBG630-1 | 770 | 0.63 | 0.4-1.2 | 7.6 | 1450 | 930 | 1290 | 1570 | 1100 |
HBG800-1 | 920 | 0.8 | 0.4-1.2 | 9.4 | 1510 | 960 | 1340 | 1635 | 1250 |
HBG1000-1 | 1070 | 1.0 | 0.4-1.2 | 11.34 | 1620 | 1030 | 1880 | 1760 | 1360 |
HBG1250-1 | 1240 | 1.25 | 0.4-1.2 | 13.7 | 1740 | 1100 | 1450 | 1895 | 1450 |
HBG1600-1 | 1500 | 1.6 | 0.4-1.2 | 17.1 | 1890 | 1560 | 1690 | 2060 | 1580 |
HBG2000-1 | 1740 | 2.0 | 0.4-1.2 | 20.7 | 2030 | 1290 | 1820 | 2220 | 1700 |
HBG2500-1 | 2010 | 2.5 | 0.4-1.2 | 25.1 | 2180 | 1385 | 1960 | 2390 | 1830 |
HBG3000-1 | 2170 | 3.0 | 0.4-1.2 | 28.8 | 2315 | 1470 | 2085 | 2540 | 1940 |
HBG3500-1 | 2260 | 3.5 | 0.4-1.2 | 32.3 | 2430 | 1540 | 2195 | 2670 | 2040 |
HBG4200-1 | 2380 | 4.2 | 0.4-1.2 | 37.1 | 2580 | 1635 | 2330 | 2840 | 2170 |

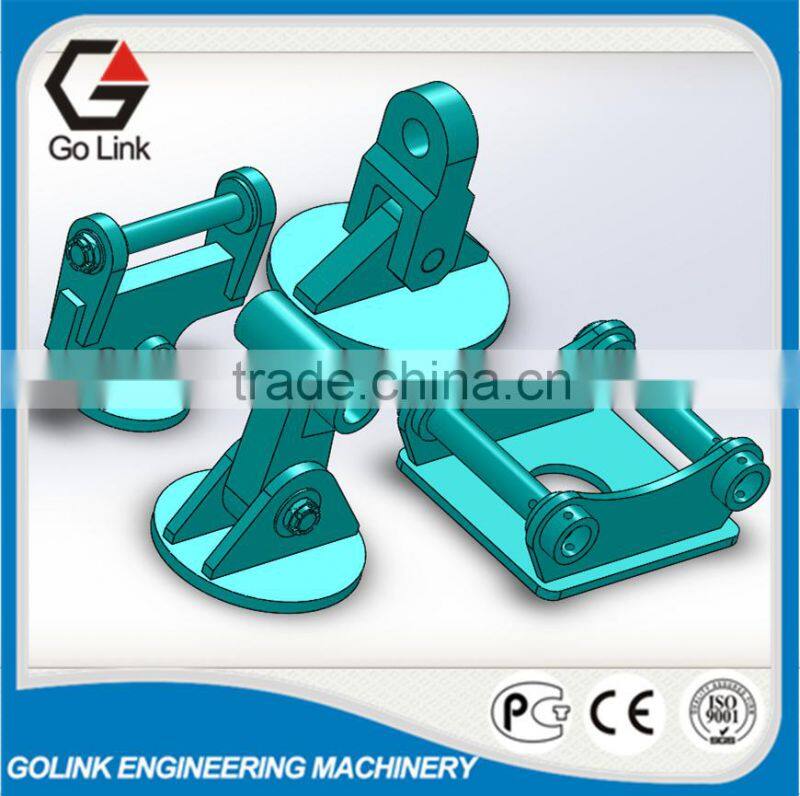

Different connect way

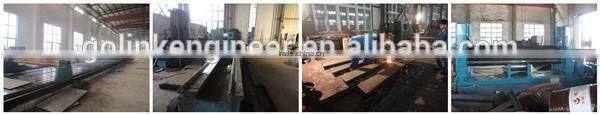

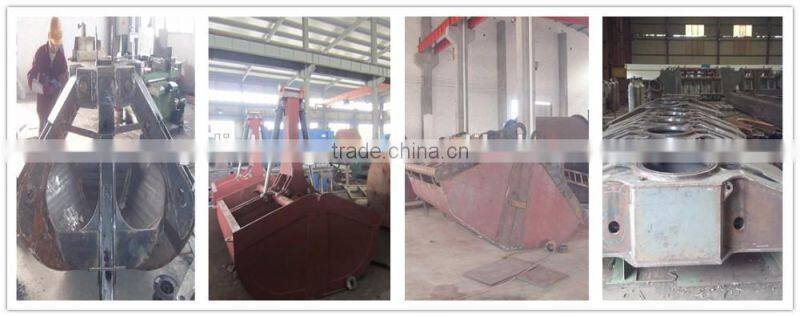

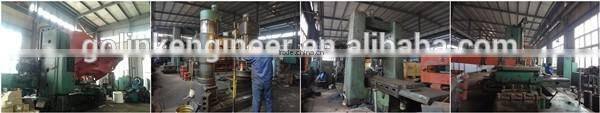

Wuxi Golink engineering machinery Co.,Ltd is a large-scale comprehensive enterprise which integrates design,R&D manufacture,sales&service all along,Specialized in producing alll kinds of excavator bucket,bulldozer pushing shovel,
ripper,long reach-boom and arm,wearable pieces,steel structure and other construction machinery accessory device.


We supply all kinds attachments for excavator. We can help you slove any problems because of our rich experience.
Wish we can have a good relation ship with our high quatily products.
Any question please contact us. We are glad to help you.
1.We provide high quality excavator attachments.
2.We choose the best material for our bucket and own experienced skills
3.We can design and make buckets according to our customer request.
4.We can also support the shipment for our customer
5.Fast delivery time and good after-sales service.

1.Are you sure that your product will fit my excavator?
Our breakers can be adapted to different excavators. Show me your model number, and we can give you best solution.
2.How about the delivery time ?
Within 30-40working days after receiving T/T payment.
3.What color can you produce ?
Yellow ,If you need special, please advise.
Thanks a lot! Any question please contact us.
