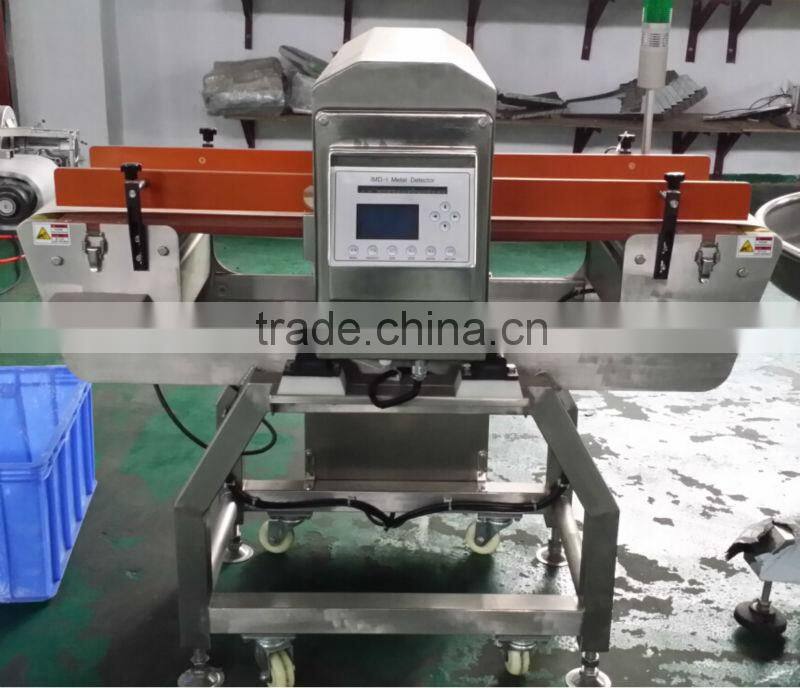

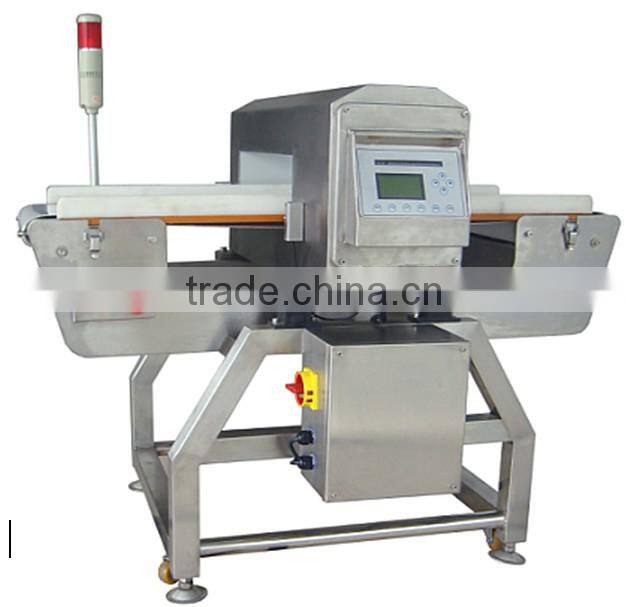

Help Center2015 SW-D300 Various Food Industry Combined Metal Detector and Check Weigher
Related Products
-
2015 SW-D Series Cheap Food Auto Stainless Steel Metal DetectorUS$ 4,000 - 7,000MOQ: 1 Set -
2015 SW-D Series Food Auto Metal DetectorUS$ 4,000 - 7,000MOQ: 1 Set
-
SW-D300 2015 Food Packaging Belt Metal DetectorUS$ 4,000 - 7,000MOQ: 1 Set
-
2015 SW-D300 Bread Slices Metal DetectorUS$ 4,000 - 7,000MOQ: 1 Set
-
2015 SW-D300 Bread Metal DetectorUS$ 4,000 - 7,000MOQ: 1 Set
Application
According to different product size, various detect head size will be provided. It is not only suitable for finished package product, but also for bulk product.

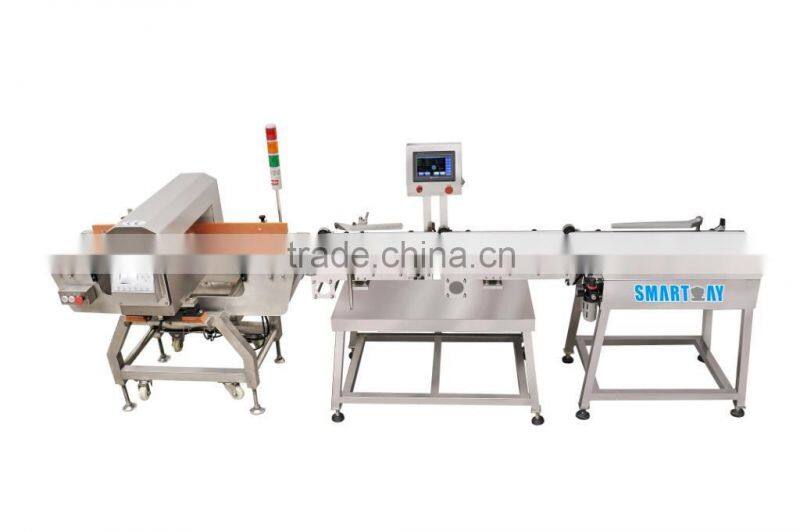

The metal detector also can be integrated with check weigher into combine machine.
Features:
1). Advanced DSP technology to refrain product effect;
2). LCD display with simple operation;
3). Multi-functional and humanity interface;
4). English/Chinese language selection;
5). Product memory and fault record;
6). Digital signal processing and transmission;
7). Automatic adaptable for product effect.
8). Optional reject systems;
9). High protection degree and height adjustable frame.(conveyor type can be chose).
Specification:
Model |
SW-D300 |
|||
Control System |
PCB and advance DSP Technology |
|||
Conveying Speed |
22 m/min |
|||
Detect Size (mm) |
250W×80H |
300W×100H |
400W×150H |
500W×200H |
Sensitivity: FE |
≥0.7mm |
≥0.8mm |
≥1.0mm |
≥1.0mm |
Sensitivity: SUS304 |
≥1.0mm |
≥1.2mm |
≥1.5mm |
≥2.0mm |
Conveying Belt |
White PP (Food grade) |
|||
Belt Height |
700 + 50 mm |
|||
Construction |
SUS304 |
|||
Power supply |
220V/50HZ Single Phase |
|||
Packing Dimension |
1300L*820W*900H mm |
|||
Gross Weight |
300kg |
|||
Drawing:
Options:
1). Safe photo sensor
Function: If unqualify bag did not reject out and still pass to next equipment, this safe sensor will alarm and stop machine running
2). Reject Bin
Function: Collect rejected products, when rejected products full to 2/3 position, PLC will alarm to remind operator to take out the reject products
3). Three color alarm
Function: check production situation all the time
4). Push rejector and air blow rejector
Function: for heavy and light proudcts rejection
Packing and shipping:
1. Polywood carton
2. Delivery: 15-20 days
3. FOB ZHONGSHAN
