Golink standard top type breaker has the characteristic of convenient maintenance and flexible operation,
which is the first selection of mining and road construction. They are good performence will help you save a lot of time.
The large Hydraulic breaker have big power, It's easy to break the rocks or concrete.

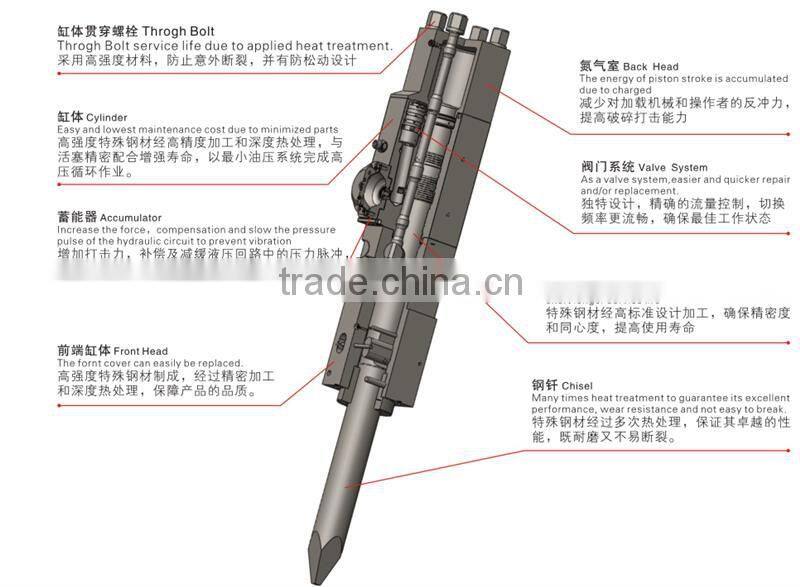

Drawing for reference :
we are the manufacture of excavator attachment especially in hydraulic breaker.We are glad to help you if have any problem.

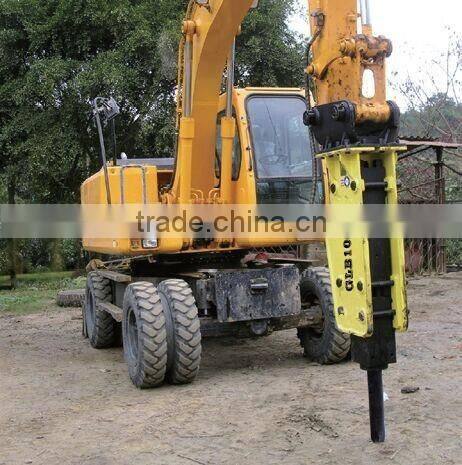

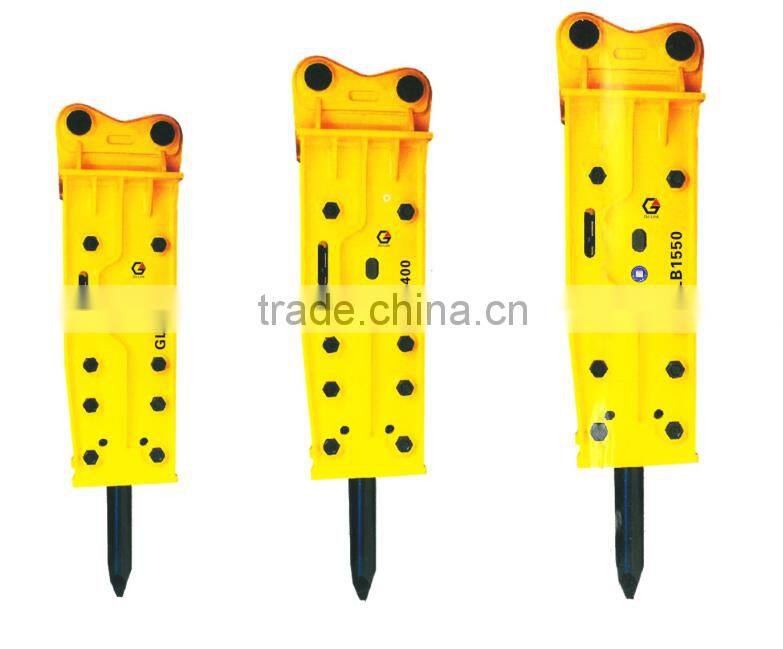

Photos for reference:
Side type hydraulic breaker parameters
|
Modle
|
Units | GLB530 | GLB600 | GLB680 | GLB750 | GLB850 | GLB1000 | GLB1350 | GLB1400 | GLB1500 | GLB1550 | GLB1650 | GLB1750 | |
Item | ||||||||||||||
|
Job weight |
Side |
KG | 120 | 180 | 250 | 305 | 475 | 768 | 1460 | 1740 | 2140 | 2520 | 2650 | 3750 |
|
Top |
KG | 120 | 180 | 298 | 365 | 550 | 890 | 1512 | 1754 | 1970 | 2555 | 3050 | 3900 | |
|
Silent |
KG | 152 | 225 | 292 | 350 | 535 | 860 | 1772 | 1766 | 2050 | 2630 | 2800 | 3900 | |
|
Hydraulic job |
BAR | 90-120 | 100-130 | 110-140 | 120-150 | 130-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | |
| PSI | 1305-1740 | 1450-1885 | 1595-2030 | 1740-2175 | 1885-2320 | 2175-2465 | 2320-2610 | 2320-2610 | 2320-2610 | 2320-2610 | 2320-2610 | 2320-2610 | ||
|
Diameter hoses |
BAR/PSI | 150/2175 | 150/2175 | 170/2465 | 170/2465 | 190/2755 | 190/2755 | 210/3045 | 220/3190 | 220/3190 | 240/3480 | 240/3480 | 240/3480 | |
Oil job |
L/MIN | 20-50 | 30-60 | 40-70 | 40-90 | 65-110 | 80-110 | 100-150 | 120-180 | 150-210 | 180-240 | 200-260 | 210-290 | |
| GAL/MIN | 4.9-12 | 7-14 | 9.8-17 | 9.8-22 | 16-27 | 19-27 | 24-36 | 29-44 | 36-51 | 44-59 | 49-64 | 51-71 | ||
|
Against frequency |
BPM | 600-1100 | 500-1000 | 500-900 | 650-1050 | 550-900 | 350-700 | 350-600 | 350-500 | 300-450 | 300-450 | 250-400 | 200-350 | |
|
Diameter hoses |
INCH | 1/2" | 1/2" | 1/2" | 1/2" | 3/4" | 3/4" | 1" | 1" | 1" | 1 1/4" | 1 1/4" | 1 1/4" | |
|
Diameter drill rod |
MM | 53 | 60 | 68 | 75 | 85 | 100 | 135 | 140 | 150 | 155 | 165 | 175 | |
|
Weight drill rod |
KG | 10 | 14 | 18 | 23 | 29 | 54 | 115 | 126 | 155 | 182 | 205 | 247 | |
|
With bucket volume |
m³ | 0.06-0.2 | 0.1-0.25 | 0.15-0.3 | 0.2-0.35 | 0.25-0.5 | 0.4-0.6 | 0.6-0.8 | 0.7-0.9 | 0.9-1.2 | 1.1-1.4 | 1.2-1.7 | 1.4-2.0 | |
|
The application of machine-dug |
T | 2.5-4.5 | 3.0-5.5 | 4.0-7.0 | 6.0-9.0 | 6-11 | 10-16 | 16-21 | 18-26 | 25-30 | 28-35 | 30-45 | 40-55 | |

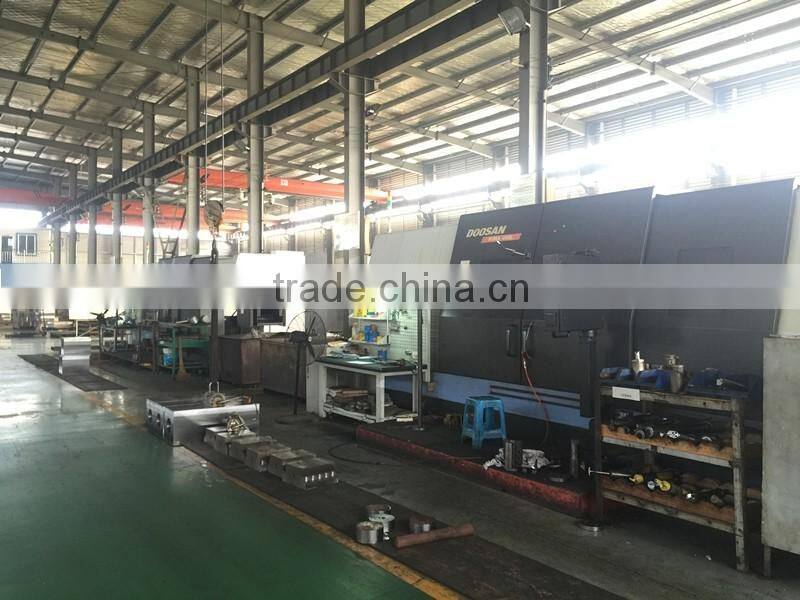

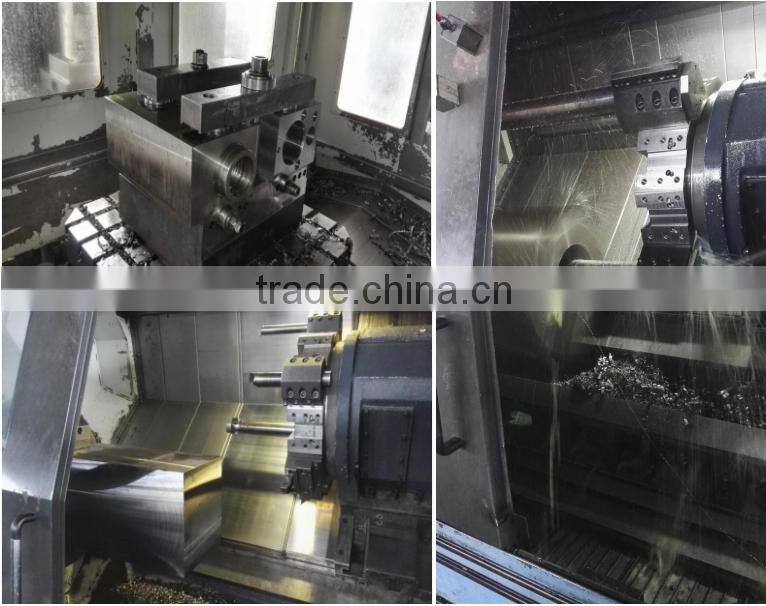

Our factory
Welcome to our factory. Don't forget to visit our factroy
if you have free time.
1.We supply all kinds of excavator attachments such as hydraulic breaker,
quick hitch,hydraulic shear, excavator grab bucket,hydraulic shear and so on.
2.As a leading manufacturer of hydraulic attachments on excavator and its spare parts,
we provide full support to our customers includes competitive price, after-sale services, fast delivery and etc.
1.Are you sure that your product will fit my excavator?
Our breakers can be adapted to different excavators. Show me your model number, and we can give you best solution.
2.How about the delivery time ?
Within 7-10 working days after receiving T/T payment.
3.What color can you produce ?
Yellow ,If you need special, please advise.
