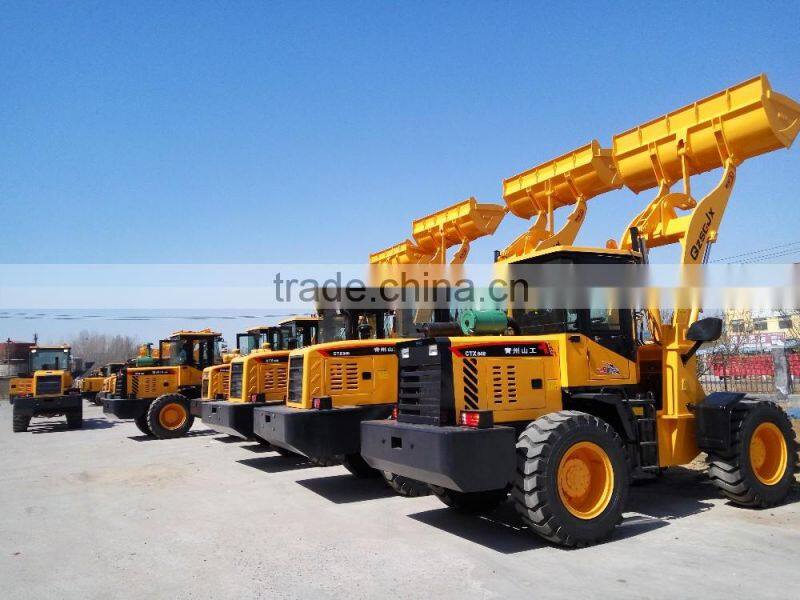

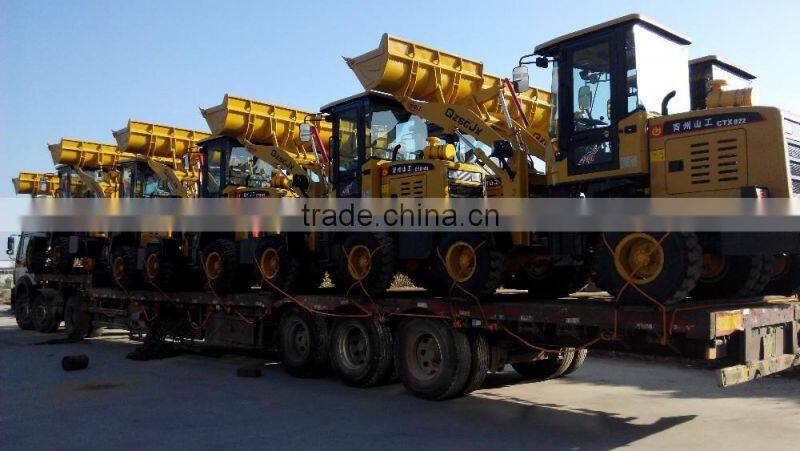

cheap price chinese famous skip loader for sale
As the supplier of SEM SAM LOVOL SDLG XCMG YX YINENG,we can supply you a best price and after-sales service.
Main features of our zl30 wheel loader
l To match the re-optimization engine with strong power, strengthened the good starting performance, and the operating efficiency and performance is greatly improved.
l Advanced cooling system, and to withstand 40° C high temperature, can also play the highest performance in a high dust environment.
l Fully hydraulic steering, the hydraulic valve designed and produced by international advanced technology with stable and reliable quality to promote the hydraulic system performance.
l Using ISR hoses with high quality, strength and reliability.
l Fixed axle gearbox, power shift, featured by simple structure, high transmission efficiency, long life, easy maintenance, more gear, and high speed, is suitable for heavy load operating conditions.
l The cab fully adopting tempered glass, driving comfortably with wide view.
l Bigger counterweight, bigger load capacity.
l New cooling system design, can meet minus 20-43°Cenvironment temperature requirements.
main technical parameters
Performance |
rated load |
3000kg |
overall weight |
9600kg |
|
rated bucket capacity |
1.7-2.5m³ |
|
maximum tractive force |
97KN |
|
maximum breakout force |
127KN |
|
maximum grade ability |
30° |
|
maximum dump height |
3100mm |
|
maximum dump reach |
1006mm |
|
overall dimension (L×W×H) |
6890×2430×3070mm |
|
minimum turning radius |
5097mm |
|
Engine |
model |
YC6B125-T20/ wp6g125e22 |
type |
inline/water cooling/four stroke |
|
No. of cylinder-bore/stroke |
6-108×125mm |
|
rated power |
92kw |
|
maximum torque |
500N.m |
|
min fuel-consume ratio |
≤210g/kw.h |
|
|
Transmission system |
torque converter |
YJ315-X |
gearbox mode |
fixed axle normally engaged straight gear |
|
gear shift |
4 forward shift 4reverse shift |
|
maximum speed |
40km/h |
|
Drive axles |
main reducing spiral |
bevel gear grade 1reduction |
decelerating mode |
planetary reduction,grade 1 |
|
wheel base (mm) |
2660mm |
|
wheel tread |
1800mm |
|
minimum ground clearance |
400mm |
|
Hydraulic system |
system working pressure |
16.5Mpa |
boom lifting time |
4.83s |
|
total time |
9.15s±0.5s |
|
fuel tank capacity |
156L |
|
function of leveling automatically |
yes |
|
Brake system |
service brake |
air over hydraulic disc brake on 4 wheels |
parking brake |
manual parking brake |
|
|
Tyre |
type specification |
17.5-25 |
front tyre pressure |
0.4Mpa |
|
rear tyre pressure |
0.35Mpa |

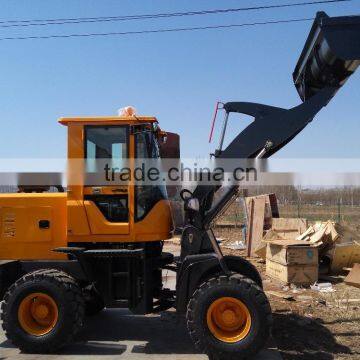

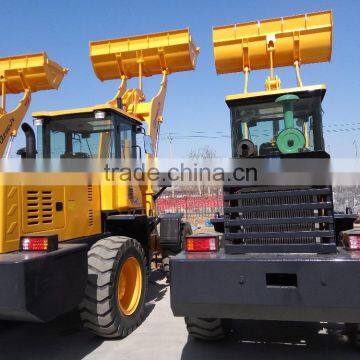

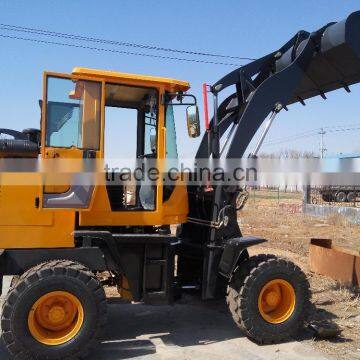

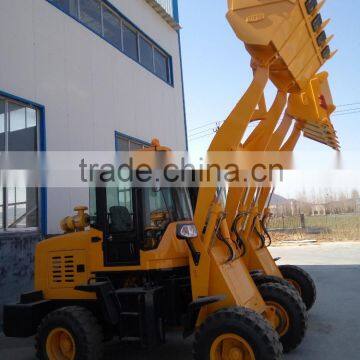

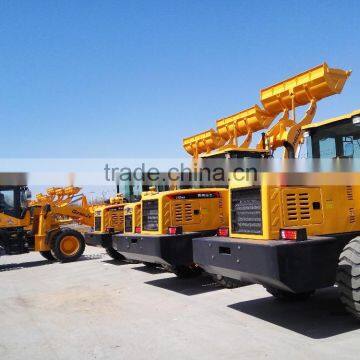

ZL30 Wheel loader
1.Warranty
Changhui grants our clients a twelve-month-period or 2000-hour warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge, at our discretion.
2.Spare parts
Changhui is dedicated to provide our clients with genuine spare part with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
3.Training
Changhui offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client’s site.
4.Technical advice
Changhui can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
Main business of CHANWAY
Engaged in machinery production, package, assembly and disassembly for import and export, Changhui have the completely autonomous management about import and export. Besides, freight forwarders and principal-agent import & export business is also included.
We focus on engineering machinery import & export and domestic trading, including Wheel loader, backhoe loader, forklift loader,mining loader,underground loader,mucking loader,Sand-excavating ship,dredger vessels, grader, Forklift,placer gold extraction equipment system of sand & sand washing equipment and other products and related accessories.
Besides,we have a good relationship with main construction equipment manufactures of China, just like XCMG, SANY, SEM, Liugong, SDLG, LOVOL, etc.
1.Our advantage:
a) Have a good relationship with main construction equipment manufactures of china.
b) Our Technical team, Sales team and Service team all have rich experience.
c) Provide the best shipping solution, save the cost of logistics.
2.Date of delivery:Generally, 30 days after receiving your deposit.
3.Payment term: T/T(30% prepaid, 70% before the shipment), L/C
4.Validity of the price: 30days
