Help CenterFarm Tractor 35HP Crawler Dozer With PTO
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
Other, crawler type
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Chinese Small Garden Tractor Loader BackhoeUS$ 9,000 - 15,000MOQ: 1 Set -
Farm Dozer Farm Tractor 35HP Agricultural Crawler DozerUS$ 14,500 - 16,500MOQ: 1 Set
-
China Famous Brand TractorUS$ 25,000 - 35,000MOQ: 1 Set
-
Tractor With BackhoeUS$ 25,000 - 35,000MOQ: 1 Set
-
Chinese Best Seller Small Garden Tractor Loader BackhoeUS$ 10,000 - 20,000MOQ: 1 Set
Condition
New
Type
Walking Tractor
By wheel
Other, crawler type
Usage
Farm Tractor
Drive Type
Gear Drive
Power(W)
25kw
Certificate
CE
Brand Name
WEIFANG
Model Number
YCT306S-61
Place of Origin
Shandong, China
After-sales Service Provided
Overseas third-party support available

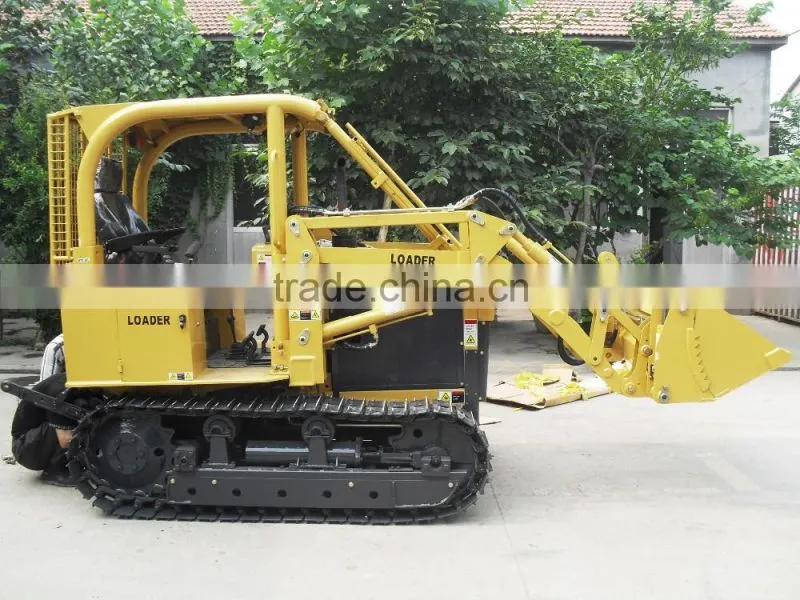

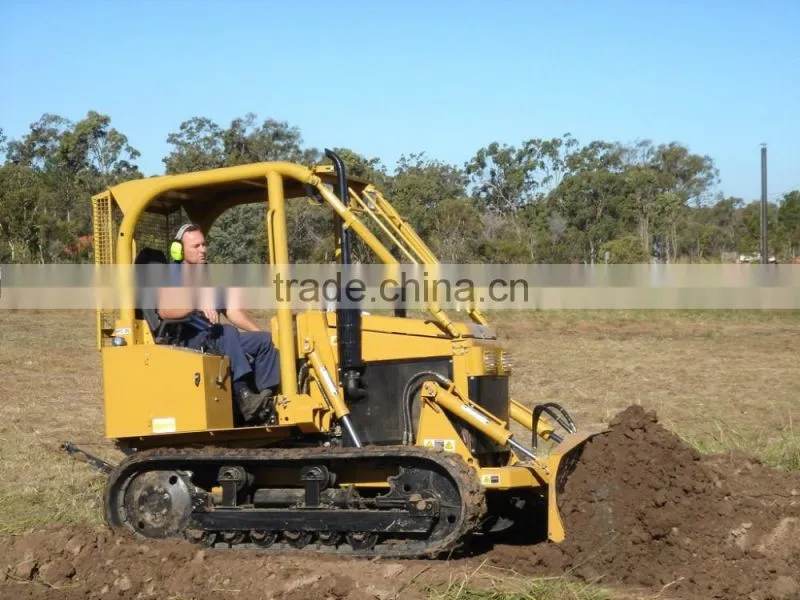

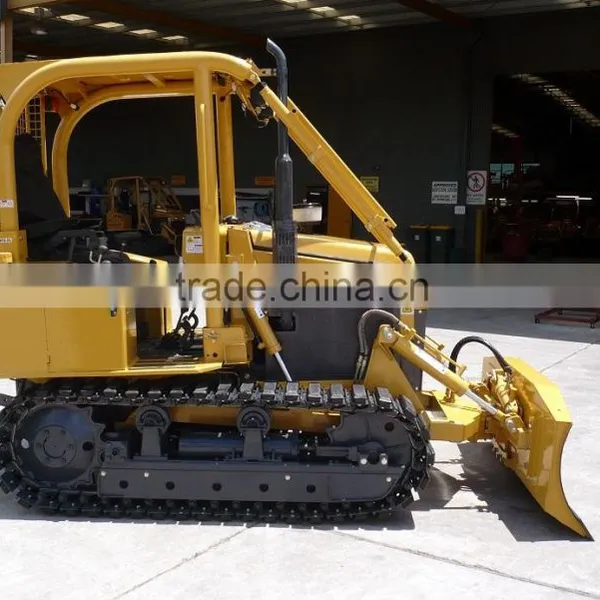

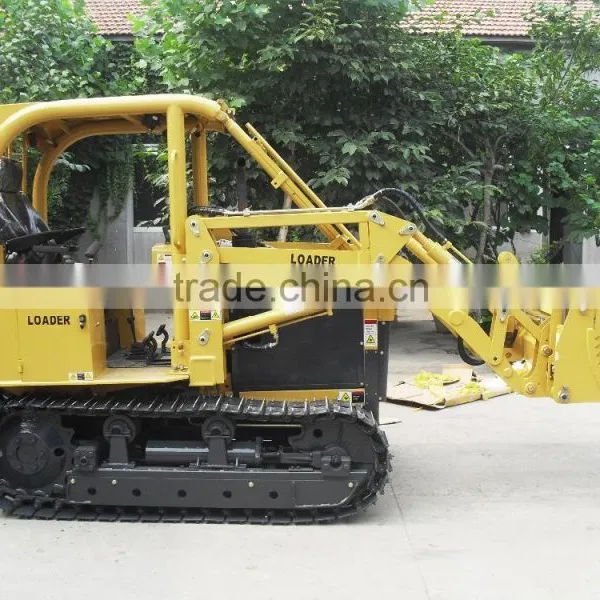

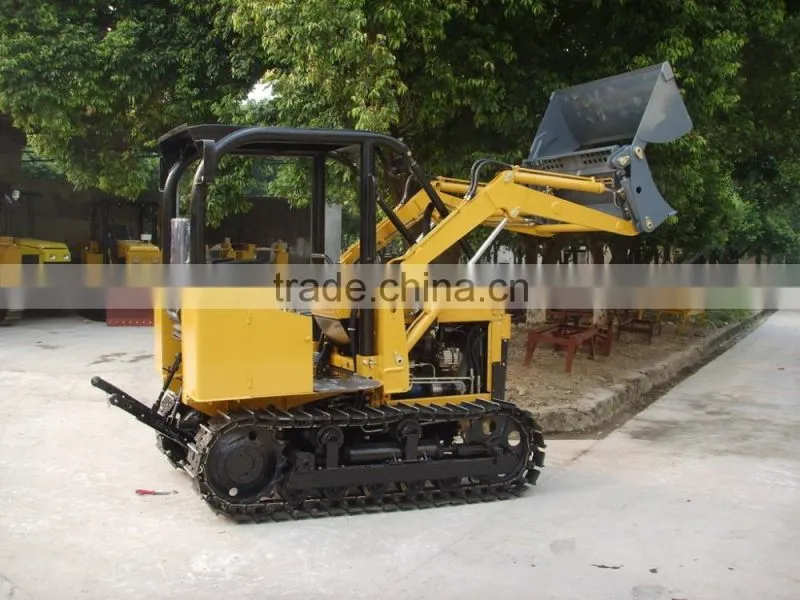

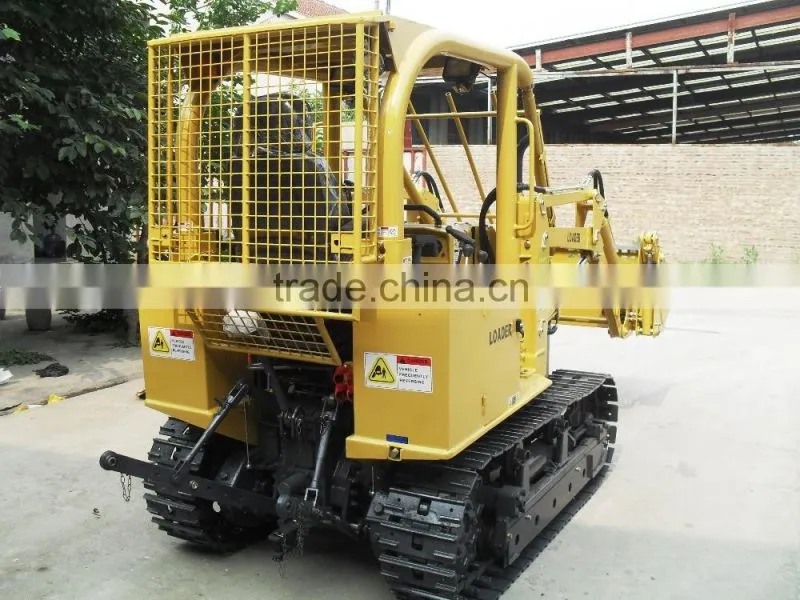

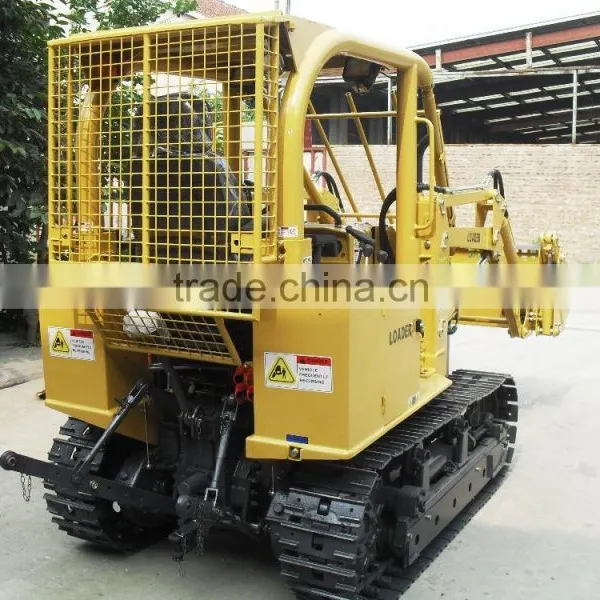

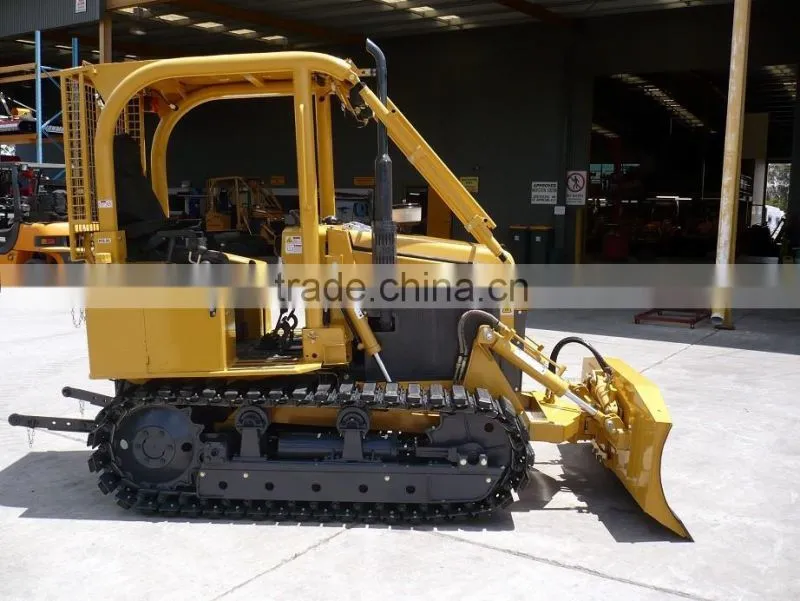

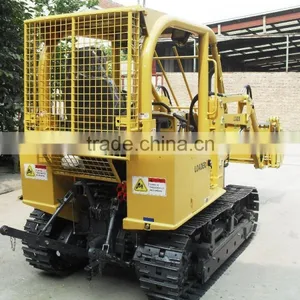

farm tractor 35HP crawler dozer with PTO
Specifications
| MODEL | YCT306S-61 |
| OVERALL DIMENSION | mm |
| Overall length (with/without blade) | 2200/2960mm |
| Overall width (with/without blade) | 1430/1640mm |
| Overall height to top of ROPS | 2160mm(can be adjusted to 2260mm) |
| PERFORMANCES | |
| Operating weight | 2790KGS |
| Max. drawbar pull | 23.5KN |
| ENGINE | |
| Model | TY395IT |
| Bore | 95mm |
| Stroke | 105mm |
| Cylinders | 3 |
| Max. power / rpm | 22.1kW / 2000rpm |
| Output volume | 2.23 L |
| Fuel | Diesel |
| Optimum fuel consumption | ≤243g / kWh |
| Optimum engine oil consumption | ≤1.63g / kWh |
| Lubrication | Full pressure by rotary pump |
| DESIGN SPEED | Km/h at maximum power output |
| Forward - Low 1 | 0.86km/h |
| Forward - Low 2 | 1.09km/h |
| Forward - Low 3 | 1.77km/h |
| Forward - Low 4 | 2.81km/h |
| Forward - High 1 | 3.38km/h |
| Forward - High 2 | 4.27km/h |
| Forward - High 3 | 6.95km/h |
| Forward - High 4 | 11.02km/h |
| Reverse - Low 1 | 0.86km/h |
| Reverse - Low 2 | 1.09km/h |
| Reverse - Low 3 | 1.77km/h |
| Reverse - Low 4 | 2.81km/h |
| Reverse - High 1 | 3.38km/h |
| Reverse - High 2 | 4.27km/h |
| Reverse - High 3 | 6.95km/h |
| Reverse - High 4 | 11.02km/h |
| TRANSMISSION | |
| Clutch | Hydraulic shuttle clutch hand control |
| Gearbox | 2-shaft, 8 forward + 8 reverse, sliding gear shift |
| Main drive | Spiral bevel gear |
| Final drive | Externally meshed spur gear |
| BLADE | |
| Height of blade | 675mm |
| width of blade | 1640mm |
| Blade lift height | 500mm |
| Digging depth | 150mm |
| Cutting angle | 52.5° |
| UNDERCARRIAGE-ROLLERS | |
| Ground clearance | 240mm |
| Track frame | Semi-rigid |
| Steel Track rollers (each side) | 5 + 1 |
| Track recoil system | Helical spring, screw adjusted |
| Number of Shoes (each side) | 40 (pitch = 109mm) |
| Steel Track | |
| Track width | 290mm |
| Track guage | 1150mm |
| BRAKES & STEERING | |
| Steering Clutches | Multiple dry cerametallic disk clutches, pedal control |
| Brakes | Band brakes, pedal control |
| HYDRAULIC SYSTEM | |
| Pump / model | Gear type / CBN-E314L |
| Relief valve pressure | 16MPa (2230psi) |
| Control valve | 4-spool |
| Blade Control | 6 in 1 joystick control |
| Control - Lift | Raise - hold - lower - float |
| Control - Tilt | Right - hold - left |
| Blade cyclinders | Double acting |
| Blade - Lift | 50mm x 255mm(Qty 2) |
| Blade angle | 63mm x 280mm(Qty 2) |
| Blade - Tilt | 63mm x 50mm(Qty 1) |
| Hitch control (single lever) | Raise - hold - lower(float) |
| Elevating ram | Single-acting |
| Bore & stroke | 80mm x 100mm |
| Lifting capacity @ hitch point | 7350 N (750 kg or 1650 lbs) |

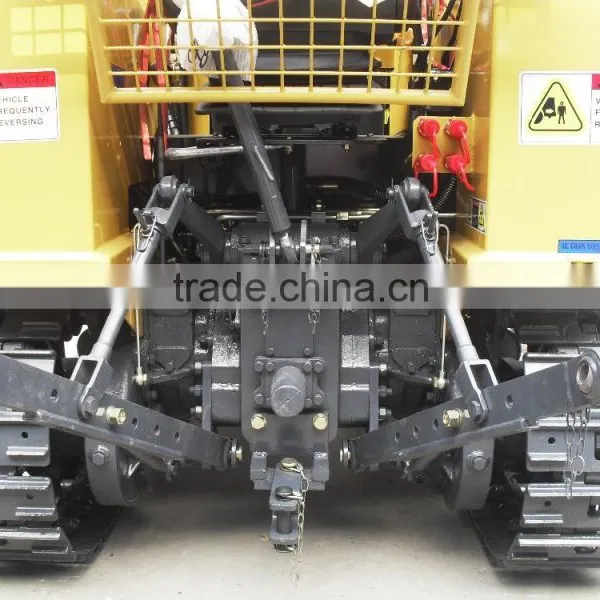

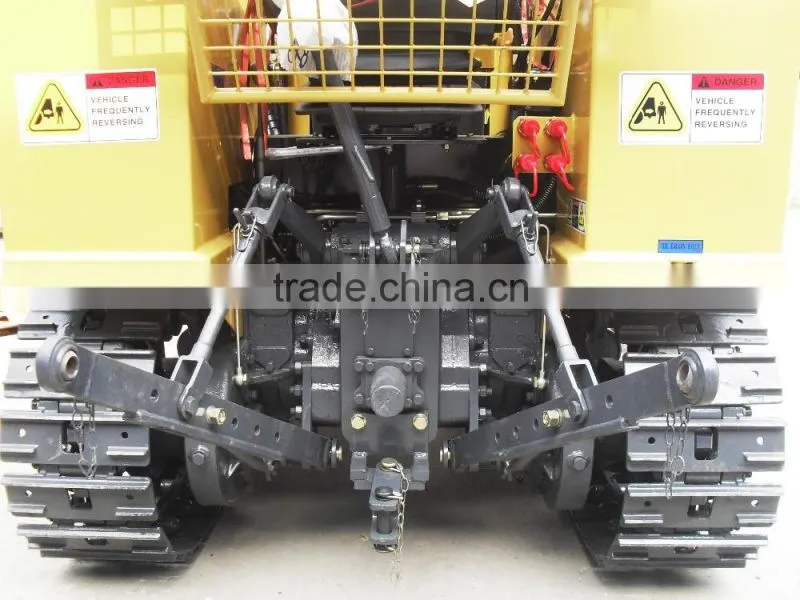

| Hitch linkage | Rear 3-point hitch, Category 1 |
| 3 point hitch upper pinhole | φ19x44 |
| 3 point hitch lower pinholes | φ22x35 |
| ELECTRICAL SYSTEM | |
| System voltage | 12V |
| Self-rectifying alternator | 200W |
| Starter | 3kW |
| Battery | 105Ah (maintenance free type) |
| Front head lamp | 55W (Qty 2) |
| Rear lamp | 55W (Qty 1) |
| POWER TAKE-OFF | |
| Type: | Mechanical dependant |
| Engagement - 540rpm | 1812 Engine rpm |
| Shaft diameter | 35mm (1 3/8"), 6 splines |
| Direction | clockwise |
| REFILL CAPACITIES | |
| Fuel | 45 Ltr (11.7gal) |
| Engine oil sump | 6 Ltr (1.6gal) |
| Gearbox | 11 Ltr (2.9gal) |
| Hydraulic system | 30 Ltr (7.8gal) |
| Coolant | 9 Ltr (2.3gal) |
| Final drives (each) | 2 Ltr (0.5gal) |
| MODEL | YCT306S-61 |
| OVERALL DIMENSION | mm |
| Overall length (with/without blade) | 2200/2960mm |
| Overall width (with/without blade) | 1430/1640mm |
| Overall height to top of ROPS | 2160mm(can be adjusted to 2260mm) |
| PERFORMANCES | |
| Operating weight | 2790KGS |
| Max. drawbar pull | 23.5KN |
| ENGINE | |
| Model | TY395IT |
| Bore | 95mm |
| Stroke | 105mm |
| Cylinders | 3 |
| Max. power / rpm | 22.1kW / 2000rpm |
| Output volume | 2.23 L |
| Fuel | Diesel |
| Optimum fuel consumption | ≤243g / kWh |
| Optimum engine oil consumption | ≤1.63g / kWh |
| Lubrication | Full pressure by rotary pump |
| DESIGN SPEED | Km/h at maximum power output |
| Forward - Low 1 | 0.86km/h |
| Forward - Low 2 | 1.09km/h |
| Forward - Low 3 | 1.77km/h |
| Forward - Low 4 | 2.81km/h |
| Forward - High 1 | 3.38km/h |
| Forward - High 2 | 4.27km/h |
| Forward - High 3 | 6.95km/h |
| Forward - High 4 | 11.02km/h |
| Reverse - Low 1 | 0.86km/h |
| Reverse - Low 2 | 1.09km/h |
| Reverse - Low 3 | 1.77km/h |
| Reverse - Low 4 | 2.81km/h |
| Reverse - High 1 | 3.38km/h |
| Reverse - High 2 | 4.27km/h |
| Reverse - High 3 | 6.95km/h |
| Reverse - High 4 | 11.02km/h |
| TRANSMISSION | |
| Clutch | Hydraulic shuttle clutch hand control |
| Gearbox | 2-shaft, 8 forward + 8 reverse, sliding gear shift |
| Main drive | Spiral bevel gear |
| Final drive | Externally meshed spur gear |
| BLADE | |
| Height of blade | 675mm |
| width of blade | 1640mm |
| Blade lift height | 500mm |
| Digging depth | 150mm |
| Cutting angle | 52.5° |
| UNDERCARRIAGE-ROLLERS | |
| Ground clearance | 240mm |
| Track frame | Semi-rigid |
| Steel Track rollers (each side) | 5 + 1 |
| Track recoil system | Helical spring, screw adjusted |
| Number of Shoes (each side) | 40 (pitch = 109mm) |
| Steel Track | |
| Track width | 290mm |
| Track guage | 1150mm |
| BRAKES & STEERING | |
| Steering Clutches | Multiple dry cerametallic disk clutches, pedal control |
| Brakes | Band brakes, pedal control |
| HYDRAULIC SYSTEM | |
| Pump / model | Gear type / CBN-E314L |
| Relief valve pressure | 16MPa (2230psi) |
| Control valve | 4-spool |
| Blade Control | 6 in 1 joystick control |
| Control - Lift | Raise - hold - lower - float |
| Control - Tilt | Right - hold - left |
| Blade cyclinders | Double acting |
| Blade - Lift | 50mm x 255mm(Qty 2) |
| Blade angle | 63mm x 280mm(Qty 2) |
| Blade - Tilt | 63mm x 50mm(Qty 1) |
| Hitch control (single lever) | Raise - hold - lower(float) |
| Elevating ram | Single-acting |
| Bore & stroke | 80mm x 100mm |
| Lifting capacity @ hitch point | 7350 N (750 kg or 1650 lbs) |
| Hitch linkage | Rear 3-point hitch, Category 1 |
| 3 point hitch upper pinhole | φ19x44 |
| 3 point hitch lower pinholes | φ22x35 |
| ELECTRICAL SYSTEM | |
| System voltage | 12V |
| Self-rectifying alternator | 200W |
| Starter | 3kW |
| Battery | 105Ah (maintenance free type) |
| Front head lamp | 55W (Qty 2) |
| Rear lamp | 55W (Qty 1) |
| POWER TAKE-OFF | |
| Type: | Mechanical dependant |
| Engagement - 540rpm | 1812 Engine rpm |
| Shaft diameter | 35mm (1 3/8"), 6 splines |
| Direction | clockwise |
| REFILL CAPACITIES | |
| Fuel | 45 Ltr (11.7gal) |
| Engine oil sump | 6 Ltr (1.6gal) |
| Gearbox | 11 Ltr (2.9gal) |
| Hydraulic system | 30 Ltr (7.8gal) |
| Coolant | 9 Ltr (2.3gal) |
| Final drives (each) | 2 Ltr (0.5gal) |
About CHANGHUI
Engaged in machinery manufacture, assembly and disassembly for import and export, Changhui have the completely autonomous management about import and export. Besides, freight forwarders and principal-agent import & export business is also included.
We focus on engineering machinery import & export and domestic trading, including Wheel loader, backhoe loader, forklift loader,mining loader,underground loader,mucking loader,Sand-excavating ship,dredger vessels, grader, Forklift,placer gold extraction equipment system of sand & sand washing equipment and other products and related accessories.The series of the loader include SEM SAM SWM SZM LQ LOVLO XCMG SDLG HYUNDAI DOOSAN KOMATSU YN YX WZ ZL etc.
Different kinds of optional equipments for your choice
Quick Hitch, 4 in 1 bucket, Pallet Fork, Snow shovel, Soft clamps, European grass-grasping, Oil drum kits, snow shovel, Backhoe, snow shovel, Auger, Grass-grasping, Hydraulic Breakers, grasping for wood
