Excavating Crawler Mining Loader Tunnel Mucking Machine With Scraper
- QINGDAO
 - T/T

You May Like
-


Small Mining Crawler Backhoe Loader With Scraper
 -


Chinese Super Underground Mini Crawler Wheel Loader
 -


Industrial Exhaust Fan in Qingzhou
 -


FULL-AUTO Poultry Heater/heating Equipment
 -


Exhaust Fan for Factory/suction Fan for Poultry House/greenhouse With Ce/ccc
 -


Wall Mounted Heavy Duty/Heavy Hammer Poultry Exhaust Fan

Product Details
| Place of Origin | Shandong, China | Brand Name | OUGONG | |
| Model Number | WBO-80 | Condition | New | |
| Moving Type | Crawler Excavator | Maximum Digging Height | 3200mm | |
| Maximum Digging Depth | 280mm | Machine Weight | 6100KG | |
| Rated Speed | 60m3/h | Certification | ISO9001 | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
mini loader1. electric hydraulic transmission
2. dumping height can be designed according to needs
3. manual valve control

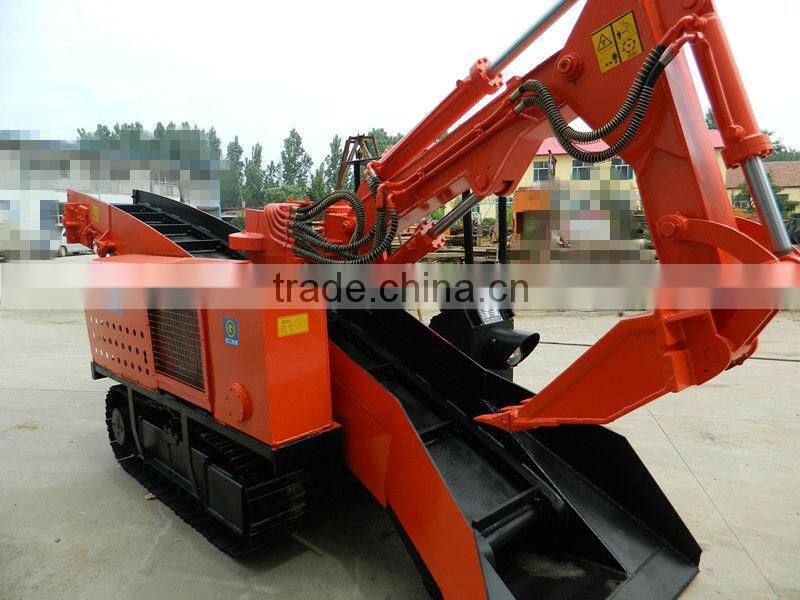

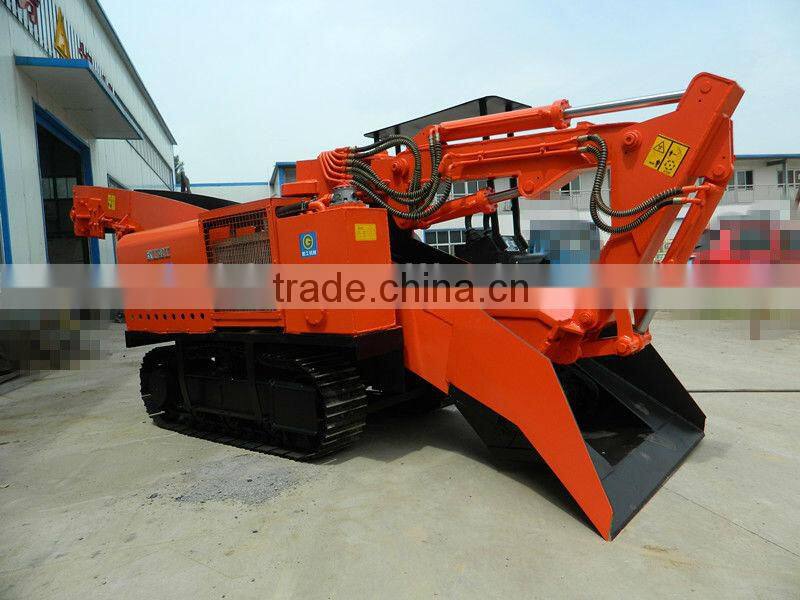

Excavating tunnel mucking machine crawler mining loader
Main features:
1. With electric hydraulic transimission,acquisition, transmission, hydraulic walking,
mining loading four kinds of functions,compact structure, propulsive force is big, pick area is wide.
Can full loaded rock, with no left angle,do not need artificial auxiliary clean coal face.
2. Dumping height can be designed according to user needs.

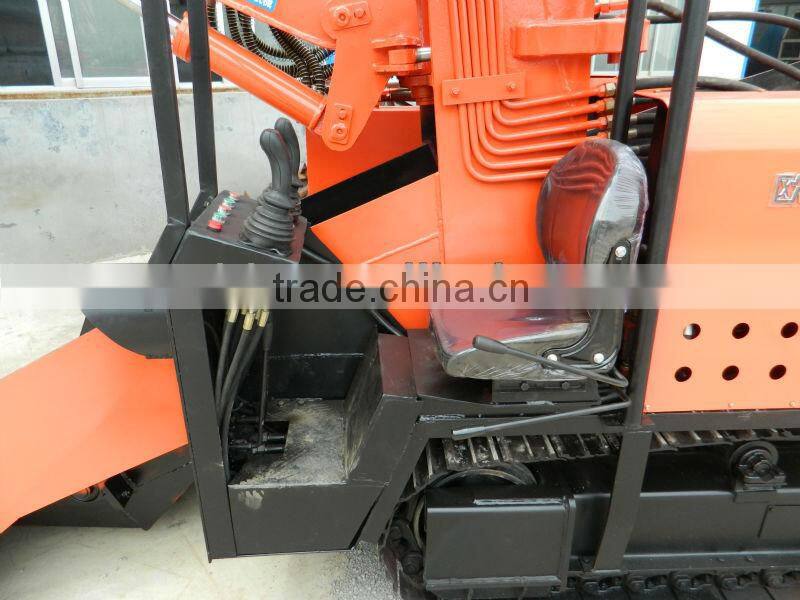

3. Using manual valve control, flexible operation, work smoothly with no impact, reliable performance,
with seat, with cab,Greatly reduce the labor intensity of the workers, lightweight.
Technical parameters:
Item  | Unit  | Value  | |
Model  |
  | WBO-80  | |
Overall weight  | KG  | 6100kg  | |
Loading ability  | m3/h  | 100  | |
  |
  | Standard arm(short arm optional)  | |
Digging width  | mm  | 3800  | |
Digging distance(from dozer blade)  | mm  | 1500  | |
Digging height  | mm  | 3200  | |
Digging depth blow ground level  | mm  | 280  | |
Dumping height  | mm  | 2000(Variable)  | |
Dumping distance  | mm  | 1600(Variable)  | |
Traveling speed  | m/s  | 0.54±5%  | |
Speed of scraper chain  | m/min  | 48  | |
Scraper chain  |
  | Double chains double motors/Single chain double motors  | |
Adaptive tunnel slope  | (o )  | ≤32  | |
Maximum working pressure  | mpa  | ≤20  | |
Ground pressure  | mpa  | ≤0.1  | |
Ground clearance  | mm  | ≤280(Variable)  | |
General power  | KW  | 31  | |
Steering  |
  | Hydraulic  | |
Crawler inner width  | mm  | 1000(Variable)  | |
Max. Boom angle  | (o )  | ±55  | |
Dimensions during transport  | Length  | mm  | 6000  |
Width  | mm  | 1500  | |
Height  | mm  | 1780  | |
Dimensions during operating  | Length  | mm  | 6200  |
Width  | mm  | 1500  | |
Height  | mm  | 1800  | |
Adaptive tunnel dimension(Width*Height)  | m  | ≥2.0*2.0  | |

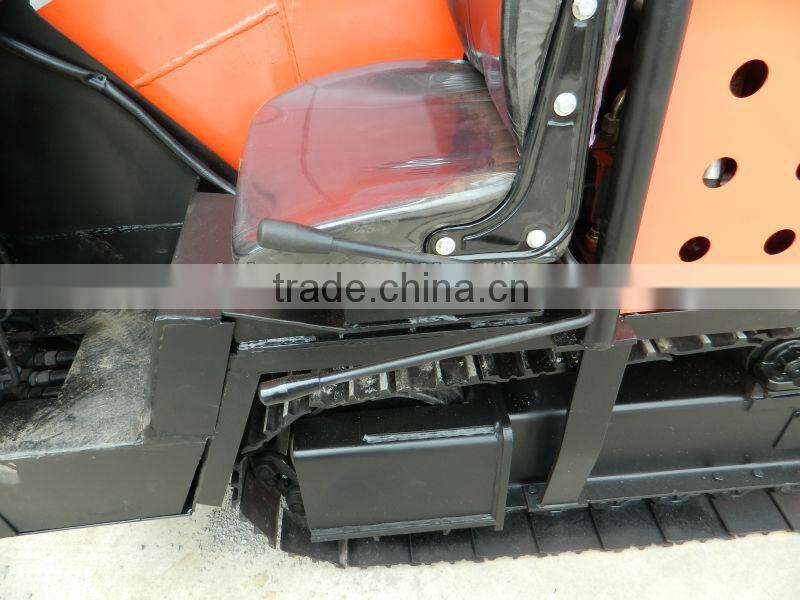

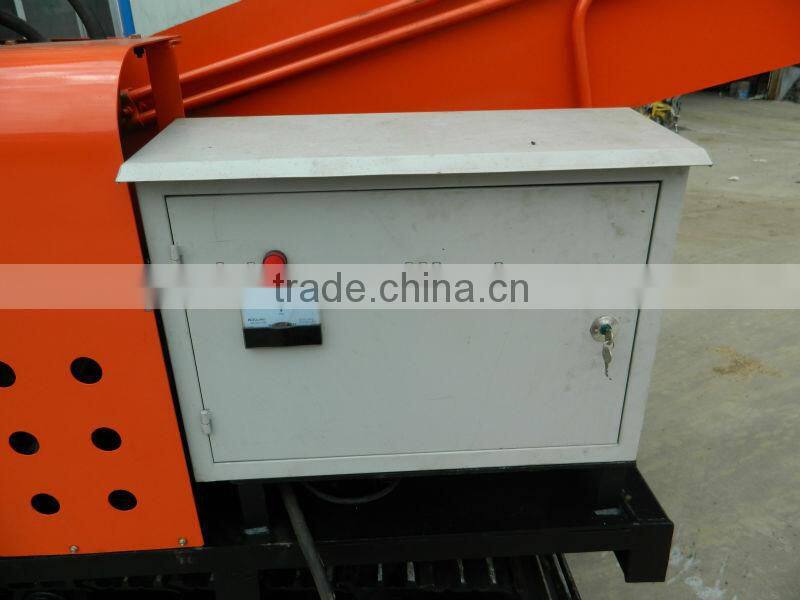

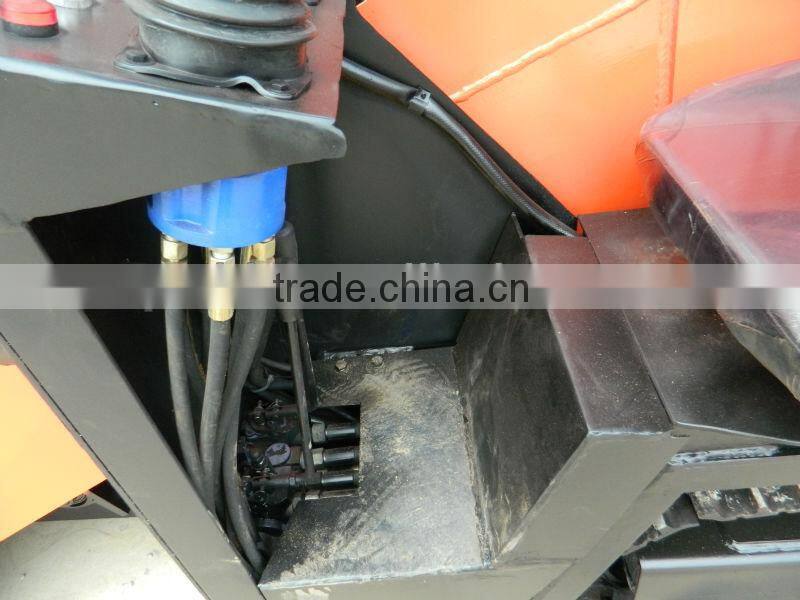

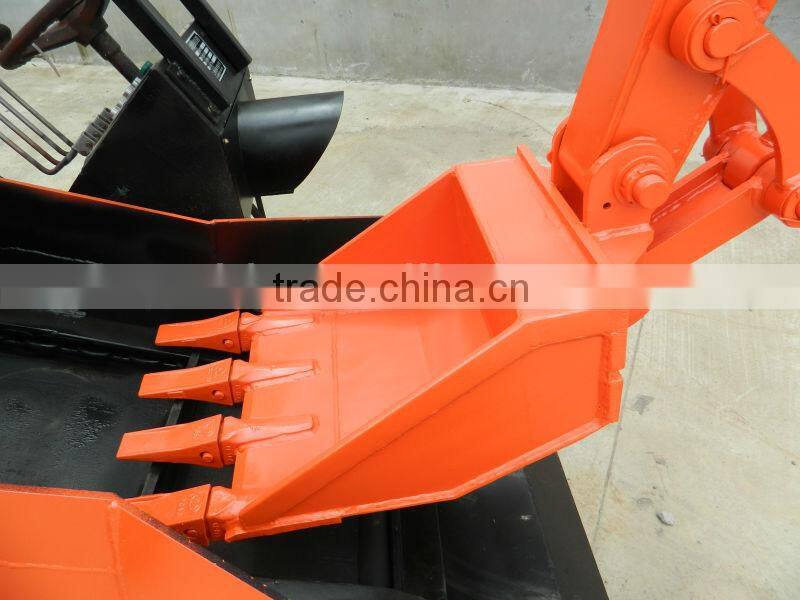

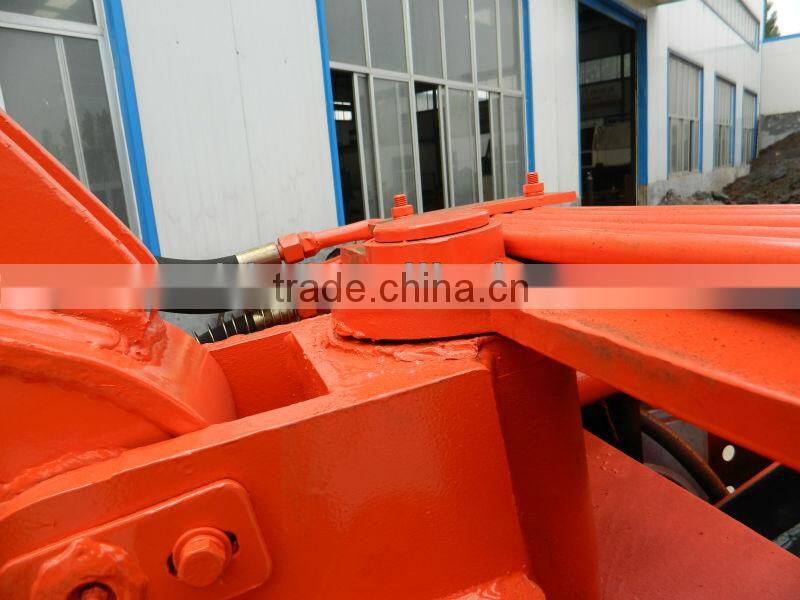

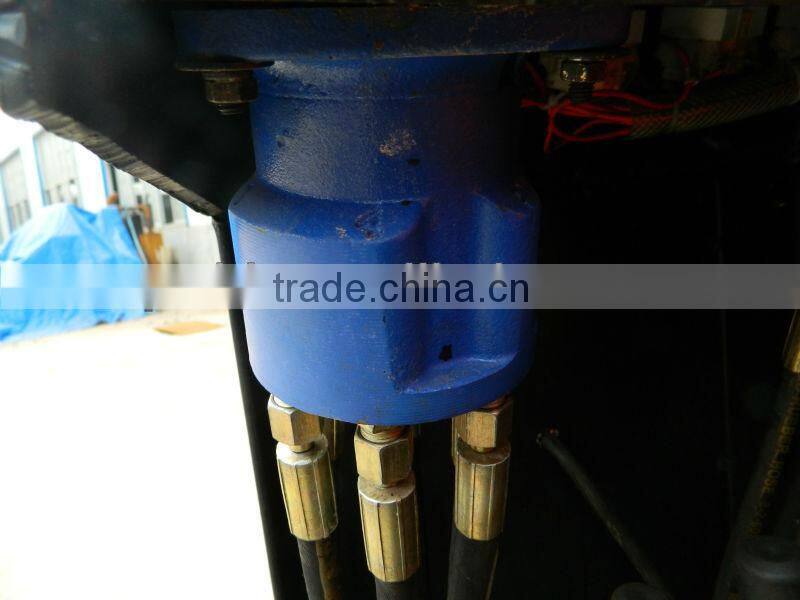

Details:
dealers cooperation with CHANGHUI
About CHANGHUI
Engaged in machinery package, assembly and disassembly for import and export, Changhui have the completely autonomous management about import and export. Besides, freight forwarders and principal-agent import & export business is also included.
We focus on engineering machinery import & export and domestic trading, including Wheel loader, backhoe loader, forklift loader,mining loader,underground loader,mucking loader,electric loader, Sand-excavating ship,dredger vessels, grader, Forklift,placer gold extraction equipment system of sand & sand washing equipment and other farm equipment construction machinery.The series of the loader include SEM SAM SWM SZM LQ LOVLO XCMG SDLG HYUNDAI DOOSAN KOMATSU YN YX WZ ZL etc.
