Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > FRL680 Tunnel Machine,underground Mine Machine,coal Mine Machine
FRL680 Tunnel Machine,underground Mine Machine,coal Mine Machine
US$ 14,000 - 19,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
CHANGHUI
Model Number:
FRL680
Payment & Shipping
Payment Methods:
Port of Shipment:
QING DAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRL660 Tunnel Mucking Loader/underground Mine Backhoe LoaderUS$ 14,000 - 19,000MOQ: 1 Set -
New Style Crawler Side-dumping Loader for Coal MineUS$ 35,000 - 45,000MOQ: 1 Set
-
ZWY-60/26L Crawler-type Muck Loader for Underground MineUS$ 39,000 - 42,000MOQ: 1 Set
-
Tunnel Muck Loader for RockUS$ 30,000 - 40,000MOQ: 1 Set
-
Mini Tunnel Track Muck Loader for SaleUS$ 30,000 - 40,000MOQ: 1 Set
Condition
New
Brand Name
CHANGHUI
Model Number
FRL680
Place of Origin
Shandong, China
Type
Backhoe Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
6500X1650X1900 mm
Rated Load
80 m³/h
Specifications
1.Continued and effective machine .2. High efficiency&safety
3. Flexible handling.
4,QA
FRL680 tunnel machine,underground mine machine
machine specification:
| Model | FRL680 |
| Load capacity | 80 m³/h |
| Digging height | 2800 mm |
| Digging depth | 350 mm |
| Digging width | 3000 mm |
| Digging capacity | 0.85 T |
| Swing angle of boom | 80° |
| Max.gradeability | 25° |
| Min.ground clearance | 150 mm |
| Electric motor power | 22+4 kw |
| System pressure | 18 Mpa |
| Fuel tank capacity | 120 L |
| Control voltage | 36 V |
| Total weight | 5500 kg |
| Dumping height | 1400-1800 mm |
| Overall size | 6500x1650x1900 mm |
machine features:
FRL series mucking loaders adopt efficient technique of hydraulic pump and hydraulic confluence,working efficiently,system reliability, good scope of work,it works stably in bad condition.
FRL body is welded by advanced modular technique,Its joint is flexible by high abrasion resistance composite shaft sleeve.
FRL cooling system can make sure machine work properly at high temperature by adopting constant temperature automatic electronic fan.
FRL adopt hydraulic pilot control system and high efficiency hydraulic valve to complete composite operating.

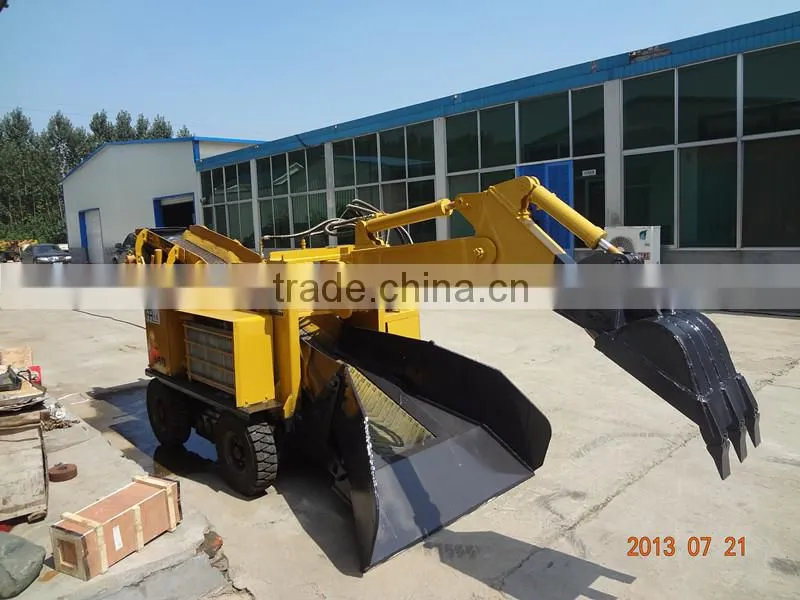

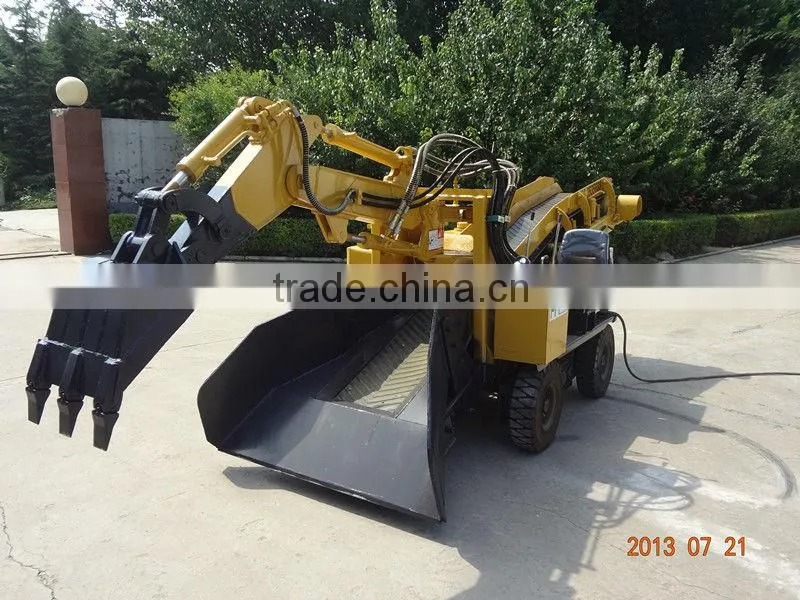

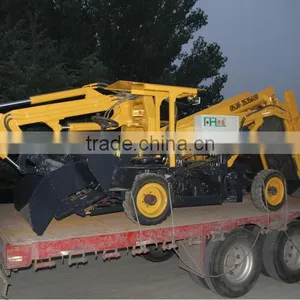

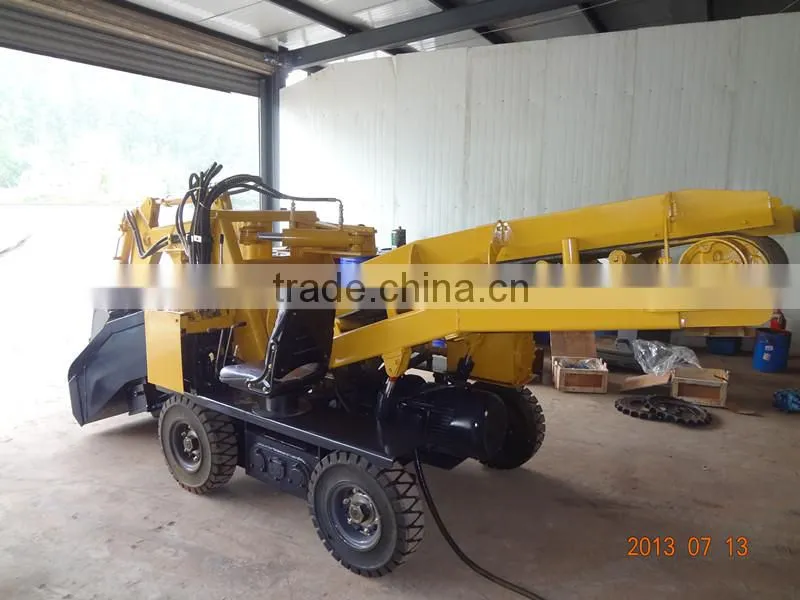

machine pictures:
