Home > Products > Backhoe Loader > cummin engine mini backhoe wheel loader for sale
cummin engine mini backhoe wheel loader for sale
- 100 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Brand Name: | CHANGHUI | Model Number: | wz30-25 |
Place of Origin: | Shandong, China | Type: | Backhoe Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 5910*2268*3760mm | Rated Load: | 2500kg | Certification: | ISO9001:2008 |
Warranty: | 12 months or 1500 working hours | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
cummin engine mini backhoe wheel loader for sale
1.Main features of the WZ30-25 backhoe loader:
1.To adopt the gearbox, torque converter provides a super power, walking steadily and higher reliability.
2.To combine Excavator and loader as one machine, fully equipped with all function of mini excavator and loader, more suitable for operating in a narrow space, convenient and flexible, reducing the whole purchase cost and running cost.
3.Excavation and loading function are pilot control, light and flexible, high efficiency.
4.Humanized designed 360 degree swivel seat, all-steel cab of forming glass, more wide vision and more comfortable driving.
5.Excavation slideslip device make the excavation operations broader and more efficient.
6.For municipal, building, water conservancy, road, water, electricity, garden and other departments, engaged in agricultural construction, pipe laying, cable laying, landscaping and other jobs.
2.main technical parameters :
Performance | rated load |
|
overall weight | 7640KG | |
Bucket Capacity | 1.0m3 | |
maximum tractive force | 39KN | |
maximum breakout force | 38KN | |
maximum grade ability |
| |
maximum dump height | 2742mm | |
maximum dump reach | 1062mm | |
overall dimension (L×W×H) | 5910×2268×3760 | |
minimum turning radius | 5018mm | |
Engine | model | YTR4108G60-1 |
type | In Line Direct injection Four-Stroke and Injection Combustion Chamber | |
No. of cylinder-bore/stroke | 4-108×120 | |
rated power | 55KW | |
maximum torque | ≥261.7N.M/1800r/min | |
min fuel-consume ratio | ≤216g/km.h | |
Transmission system | torque converter | Single-stage Three Elements |
gearbox mode | Fixed Shaft Power Transmission | |
gear shift | Gears Ahead, Two Gears Astern | |
maximum speed | 22Km/h | |
Drive axles | main reducing spiral
| Double reduction |
decelerating mode | Single stage Final Reducer | |
wheel base (mm) | 2250mm | |
wheel tread |
| |
minimum ground clearance | 300mm | |
Hydraulic system | system working pressure | 12Mpa |
boom lifting time | 5.4s | |
total time | 10.5s | |
fuel tank capacity |
| |
function of leveling automatically | yes | |
Brake system | service brake | Airover oil capliper brake/External Type/Self-regulation/Self-balance |
parking brake | Operation Power Implementing brake/Manual Operation Power Terminating Brake | |
Tyre | type specification | 16/70-20 |
front tyre pressure | 0.2Mpa | |
rear tyre pressure | 0.22Mpa |

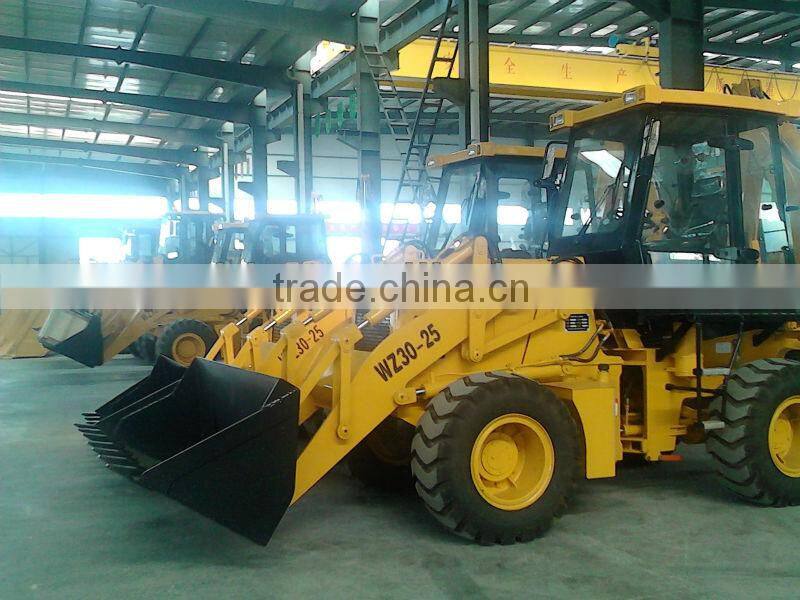

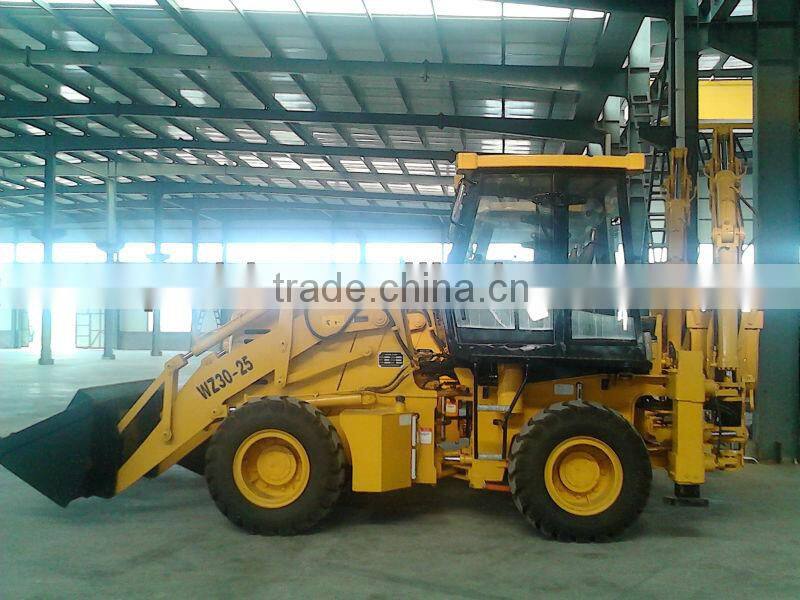

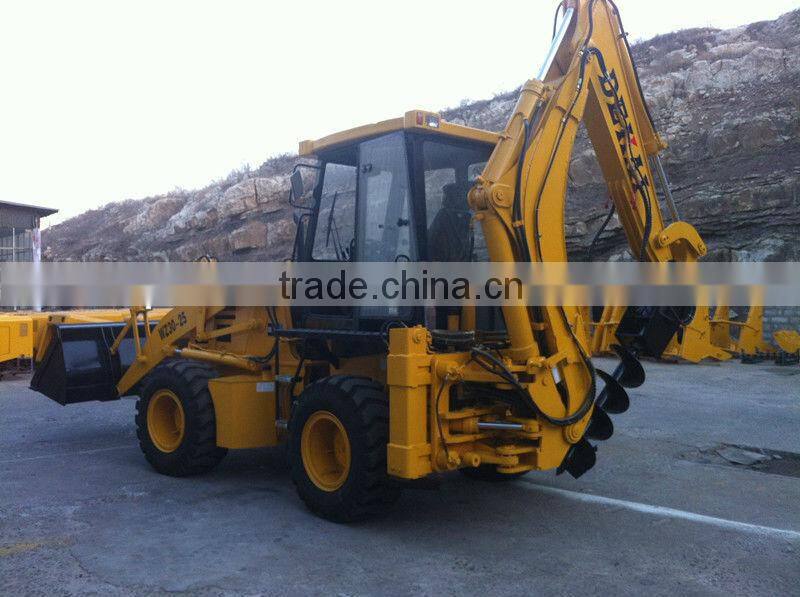

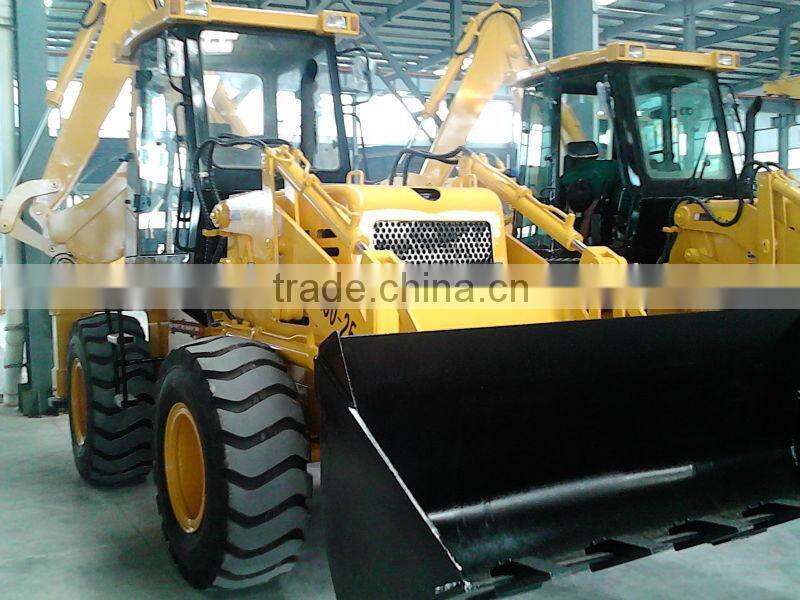

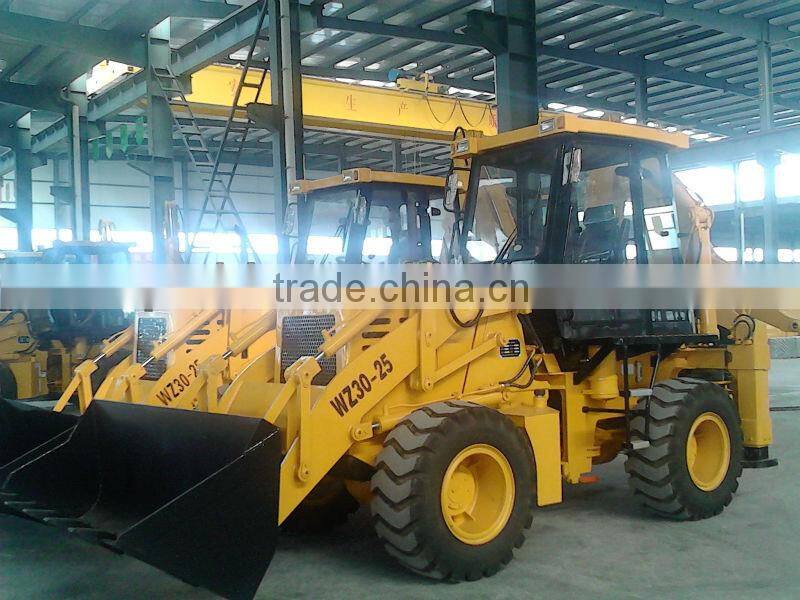

wz30-25 backhoe loader in our factory
1.Warranty
Changhui grants our clients a twelve-month-period or 2000-hour warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge, at our discretion.
2.Spare parts
Changhui is dedicated to provide our clients with genuine spare part with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
3.Training
Changhui offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client’s site.
4.Technical advice
Changhui can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
Main business of CHANWAY
Engaged in machinery production, package, assembly and disassembly for import and export, Changhui have the completely autonomous management about import and export. Besides, freight forwarders and principal-agent import & export business is also included.
We focus on engineering machinery import & export and domestic trading, including Wheel loader, backhoe loader, forklift loader,mining loader,underground loader,mucking loader,Sand-excavating ship,dredger vessels, grader, Forklift,placer gold extraction equipment system of sand & sand washing equipment and other products and related accessories.
Besides,we have a good relationship with main construction equipment manufactures of China, just like XCMG, SANY, SEM, Liugong, SDLG, LOVOL, etc.
1.Our advantage:
a) Have a good relationship with main construction equipment manufactures of china.
b) Our Technical team, Sales team and Service team all have rich experience.
c) Provide the best shipping solution, save the cost of logistics.
2.Date of delivery:Generally, 30 days after receiving your deposit.
3.Payment term: T/T(30% prepaid, 70% before the shipment), L/C
4.Validity of the price: 30days
