Product Details
Place of Origin | Fujian, China | Brand Name | Bonle | |
Model Number | BDL | Type | Other, Spade Terminal, Lug |
Product Description

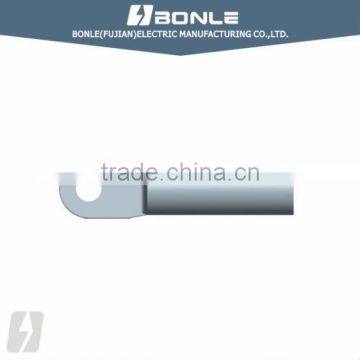

BDL Copper/Aluminum Connection Terminal
1.Brand:Bonle
2.Factory price
3.CE certificate
4.Fast Delivery
5. Type: Lug

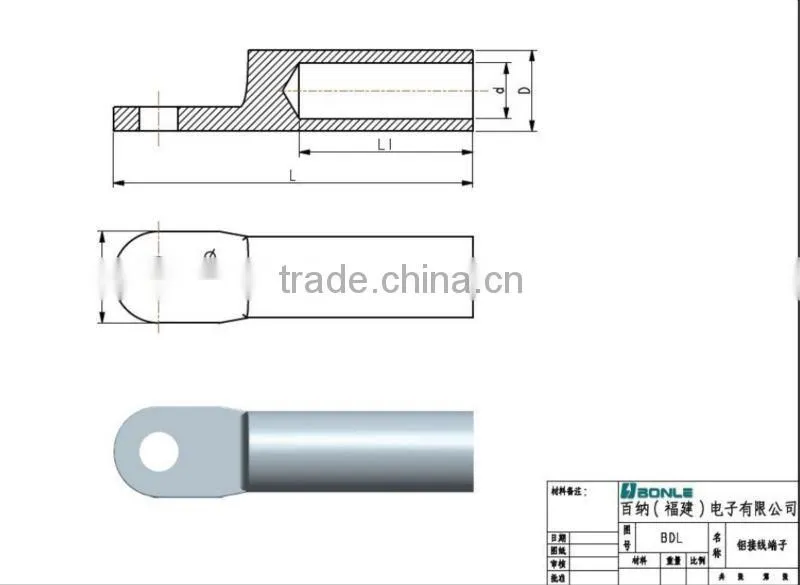

BDL Copper/Aluminum Connection Terminal | ||||||
Catalog NO. | Dimensions(mm) | |||||
Ø | D | d | L | L1 | B | |
BDL-10 | 8.5 | 9 | 6 | 68 | 28 | 16 |
BDL-16 | 8.5 | 10 | 6 | 70 | 30 | 16 |
BDL-25 | 8.5 | 11 | 7 | 75 | 34 | 18 |
BDL-35 | 10.5 | 12 | 8.5 | 85 | 38 | 20.5 |
BDL-50 | 10.5 | 14 | 9.8 | 90 | 40 | 23 |
BDL-70 | 12.5 | 16 | 11.5 | 102 | 48 | 26 |
BDL-95 | 12.5 | 18 | 13.5 | 112 | 51 | 28 |
BDL-120 | 14.5 | 23 | 15 | 120 | 53 | 30 |
BDL-150 | 14.5 | 25 | 16.5 | 126 | 56 | 34 |
BDL-185 | 16.5 | 27 | 18.5 | 133 | 58 | 37 |
BDL-240 | 16.5 | 30 | 21 | 140 | 60 | 40 |
BDL-300 | 21 | 34 | 24 | 160 | 65 | 50 |
BDL-400 | 21 | 38 | 26 | 170 | 70 | 50 |
BDL-500 | 21 | 45 | 29 | 190 | 75 | 60 |
BDL-630 | 21 | 54 | 35 | 220 | 85 | 80 |
BDL-800 | 21 | 60 | 38 | 250 | 100 | 100 |
About us:
We are the first factory in China who successfully developed and put into production of copper alloy wiring terminal. Compared with traditional terminals, copper alloy wiring terminal has the advantages of light weight, high strength, high thermal conductivity, high conductivity, high elasticity and corrosion resistance and antioxidant properties. The performance is better than brass, close to the T3 copper. The alloy copper also has complementarily effect same as metal. The alloy copper has high cost performance. Compare with same thickness same product, the alloy copper has the lowest price in the world.
Trade Terms
1.Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C.T/T
2.Port of loading: FUZHOU port
3.Discounts: offered based on order quantities
4.Delivery time:10-30 days according to order quantities.
Why Us?
1. Quality assurance: All the products will go through lots of tests carefully before dispatch.
2. New material revolution
3. Manufactuer's price: Factory direct sale, most competitive price.
